Advanced set up. Input name change
Set up your video monitor
Setup your multi channel audio out
1. Press menu
2. Press 3 input assignment
3. Press the input you want to rename,
4. Press guide on remote
5. The rename screen will come up at the top
it will give you the default for that input, the
current name and 5 X for the new name.
6. Use the curser on the remote to move up,
down, right, left, to select the new letter or
number for the name, press select when you
have the desired letter or number, repeat till you
have the new name, if it is less than 5 letter or
number then use the blank.
7. When you have completed press 1 to
change name then exit, out.

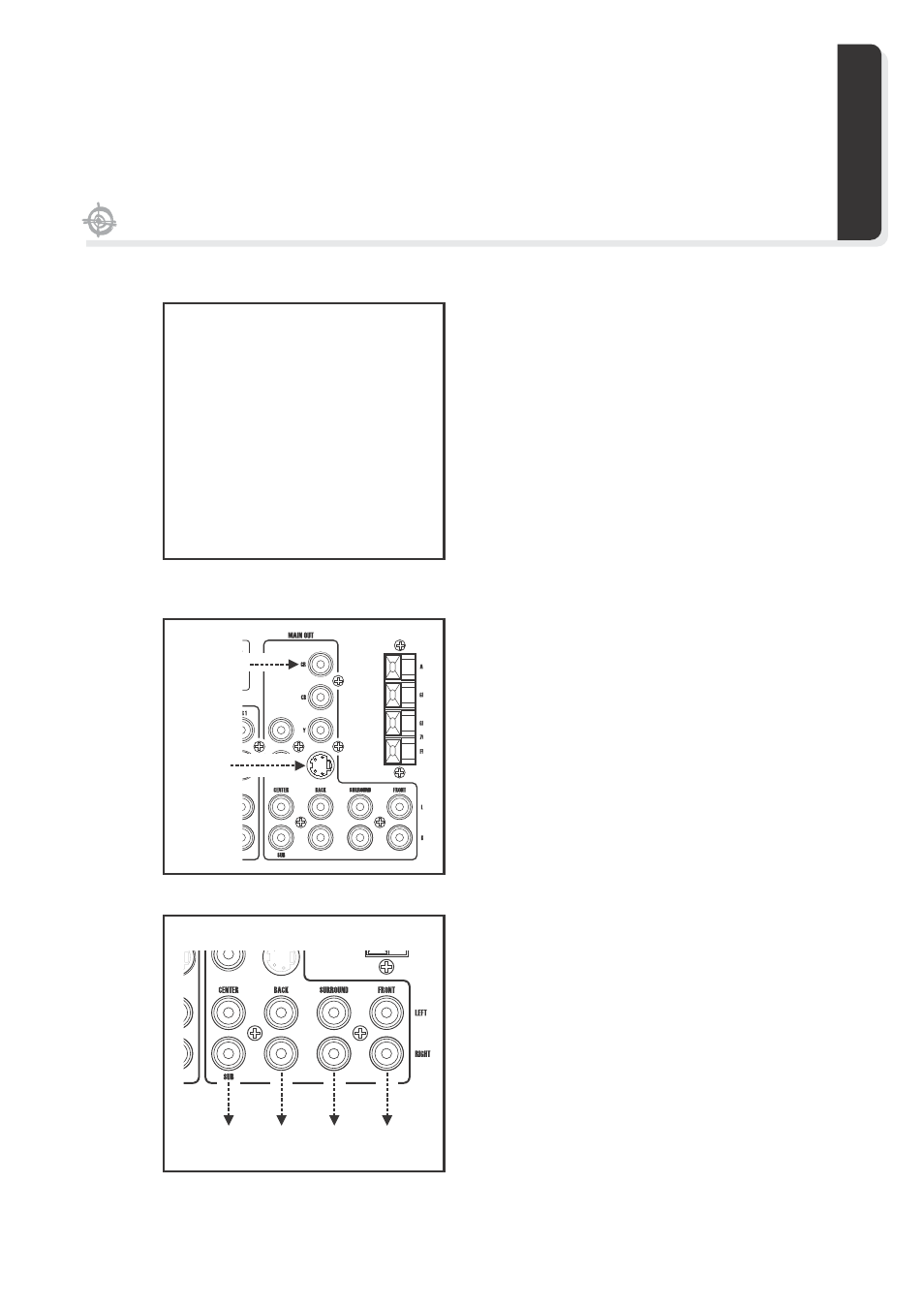

1.Connect 1 composite video to your
monitor for on Screen and s-video mixes down
to composite.
2.Connect s-video or component video for
best picture.
You have now completed you video monitor set
up.
1. Connect front left to your front left
amplifier with a RCA cable.
2. Repeat for right. Right surround, left
surround and subwoofer.
3. Repeat for right back and left back if you
want back speakers. Make sure you list in the on
screen menu (quick setup speaker size) that you
have them set up as small or large and not none.
You have now completed your audio out set up.
S-Video
Component
Video
to
Amplifier
to
Subwoofer
