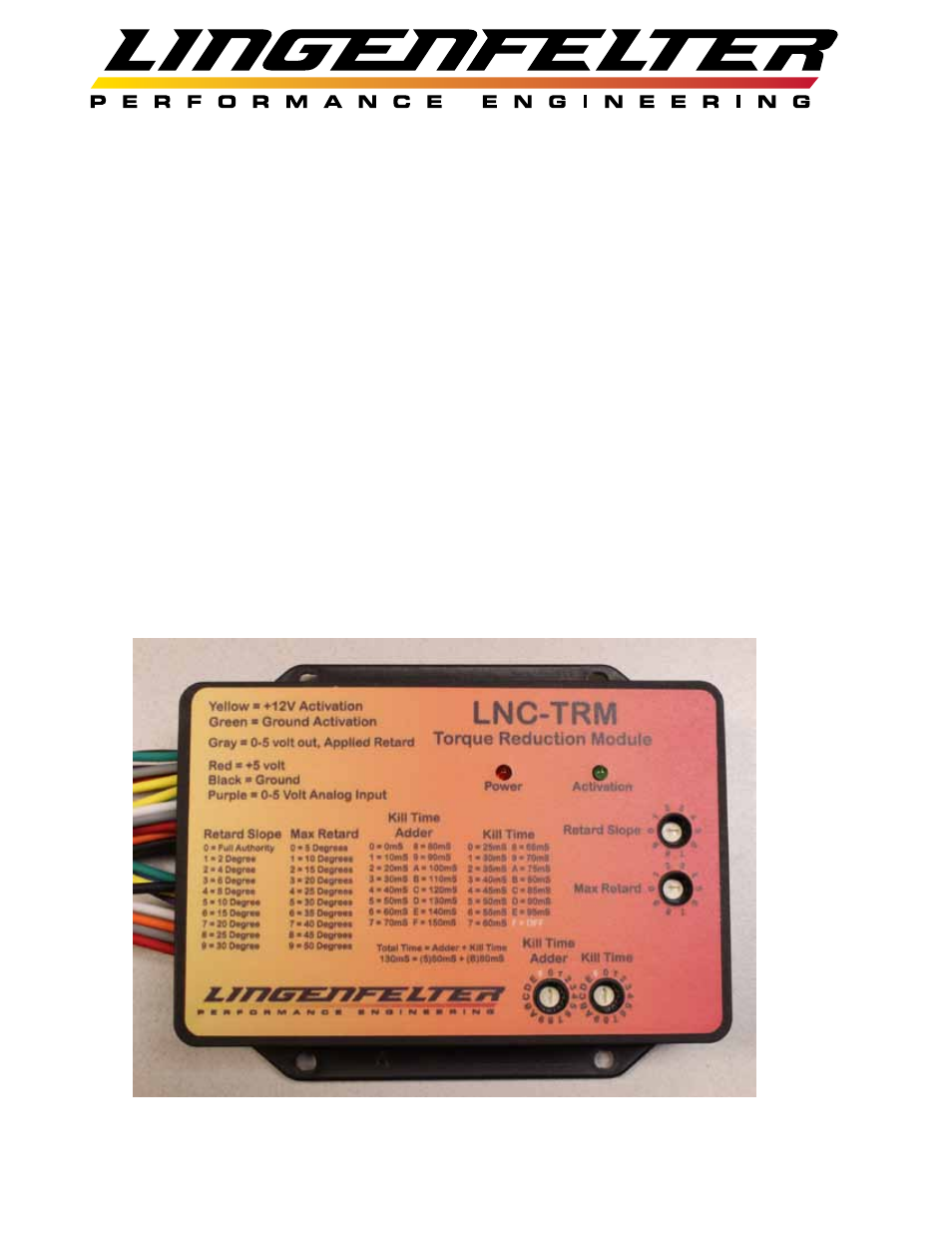

Lingenfelter L460285297 & L460316109 Lingenfelter LNC-TRM Torque Reduction Module v1.2 User Manual
Page 3

Page 2
LNC-TRM Specifications:
• Custom molded glass filled Nylon 6 high temperature enclosure.
• 40 MHz 16-bit automotive qualified processor with eight channel Enhanced Time Module.
• Independent coil drive.
• Each coil drive circuit has a dedicated timer to keep the timing accurate over the full RPM range.
• Reverse battery protection.
• Both of the activation inputs have active clamps and optical isolation to suppress electrical noise from
external solenoids (such as trans brake and line lock).
• Digital filter provided in software to further isolate electrical noise on the activation inputs.
• Separate switches for easy setting adjustments.
• Direct access to the controller settings without requiring removal of a cover or access panel.
• Both Ground Activation and +12 Volt Activation digital inputs are provided for torque reduction activation.
• 0-5 Volt analog input for external torque reduction control
• 0-5 Volt analog voltage output for sending applied retard signal to data acquisition systems (EFILive,
HPTuners, DashDAQ, Racepak, AEM, AIM, etc.).
• True plug-and-play coil pack connection design for ease of installation and removal.
• Fully encapsulated (potted) construction for added durability.
• One year warranty (from date of purchase).
