Page 16

Progressive Nitrous Timing Retard

To allow a nitrous or other external device to control the amount of timing retard and when it

occurs:

• Set the LNC-TRM to the desired Retard Slope using switch #1

• Set the LNC-TRM to the desired Maximum Retard using switch #2

• Connect the analog output from your external device to the purple analog input wire on the

LNC-TRM

• This allows the nitrous or other external controller to control the amount of timing retard

while still allowing the LNC-TRM to limit the timing retard to the user set Max Retard

setting.

NOTE - with the analog input voltage going to the purple input wire, the yellow and the

green activation inputs are ignored and the Kill Time and the Kill Time Adder are also

ignored when ever a voltage of above 0.5 volts is sent to that input.

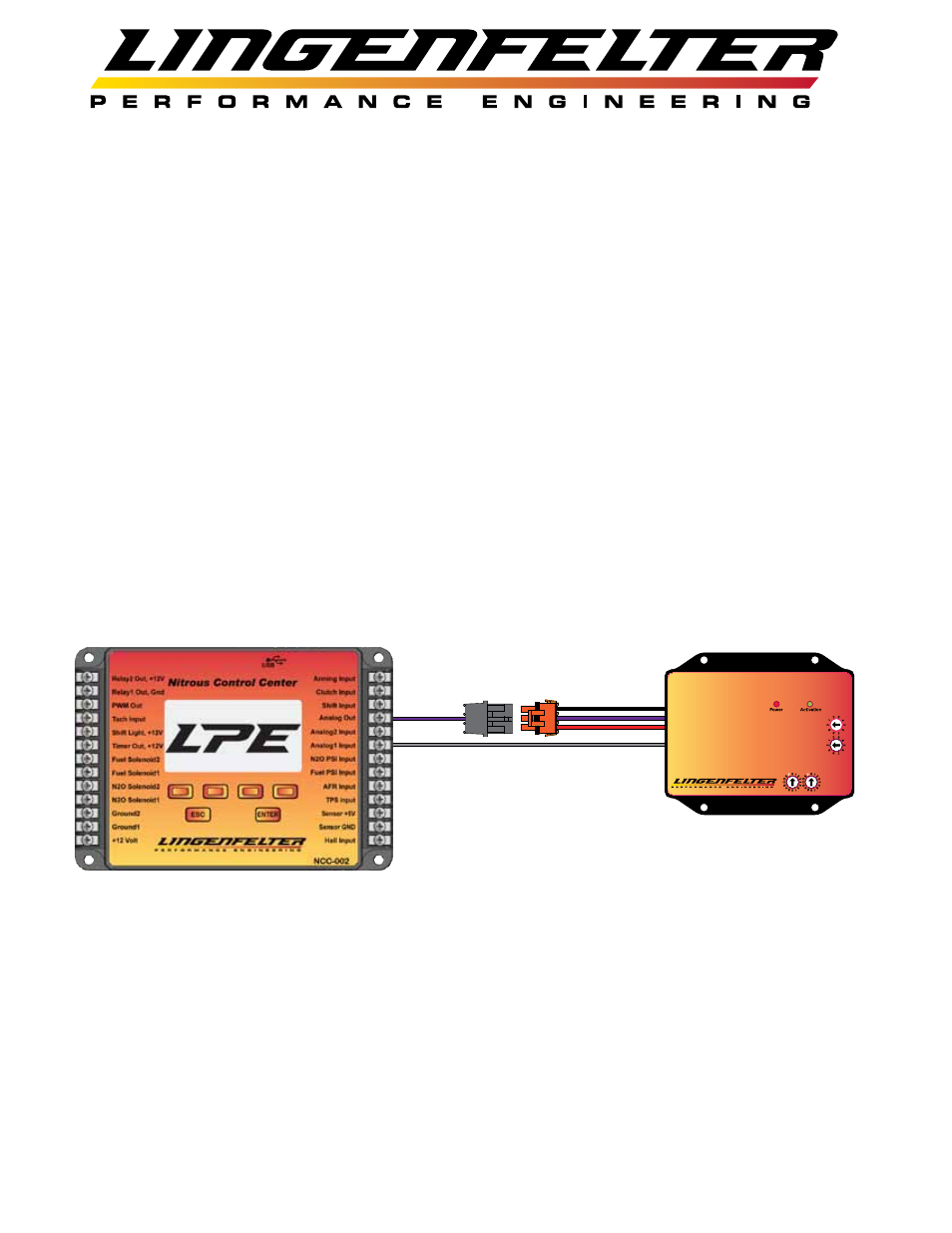

Lingenfelter NCC-002 Nitrous Control Center Connected to the

LNC-TRM Torque Reduction Module for Progressive Timing Retard

A
B
C

A
B
C

Log spark retard data from LNC-TRM to

Analog1 Input (optional)

NCC-002 Analog

Output (Purple)

PN: L480320000

LNC-TRM Analog Input

Purple = 0-5 Volt Analog Input

Black = Ground

Red = +5 volt

Gray = 0-5 volt out, Applied Retard

Yellow = +12V Activation
Green = Ground Activation

Torque Reduction Module

LNC-TRM

0 = 25mS
1 = 30mS
2 = 35mS
3 = 40mS
4 = 45mS
5 = 50mS
6 = 55mS
7 = 60mS

8 = 65mS
9 = 70mS
A = 75mS
B = 80mS
C = 85mS
D = 90mS
E = 95mS

F = OFF

Kill Time

Kill Time

Retard Slope

Max Retard

0 = Full Authority
1 = 2 Degree
2 = 4 Degree
3 = 6 Degree
4 = 8 Degree
5 = 10 Degree
6 = 15 Degree
7 = 20 Degree
8 = 25 Degree
9 = 30 Degree

Retard Slope

0 = 5 Degrees
1 = 10 Degrees
2 = 15 Degrees
3 = 20 Degrees
4 = 25 Degrees
5 = 30 Degrees
6 = 35 Degrees
7 = 40 Degrees
8 = 45 Degrees
9 = 50 Degrees

Max Retard

Kill Time

Adder

0 = 0mS
1 = 10mS
2 = 20mS
3 = 30mS
4 = 40mS
5 = 50mS
6 = 60mS
7 = 70mS

8 = 80mS
9 = 90mS
A = 100mS
B = 110mS
C = 120mS
D = 130mS
E = 140mS
F = 150mS

Kill Time

Adder

Total Time = Adder + Kill Time

130mS = (5)50mS + (B)80mS
