37

MAINTENANCE

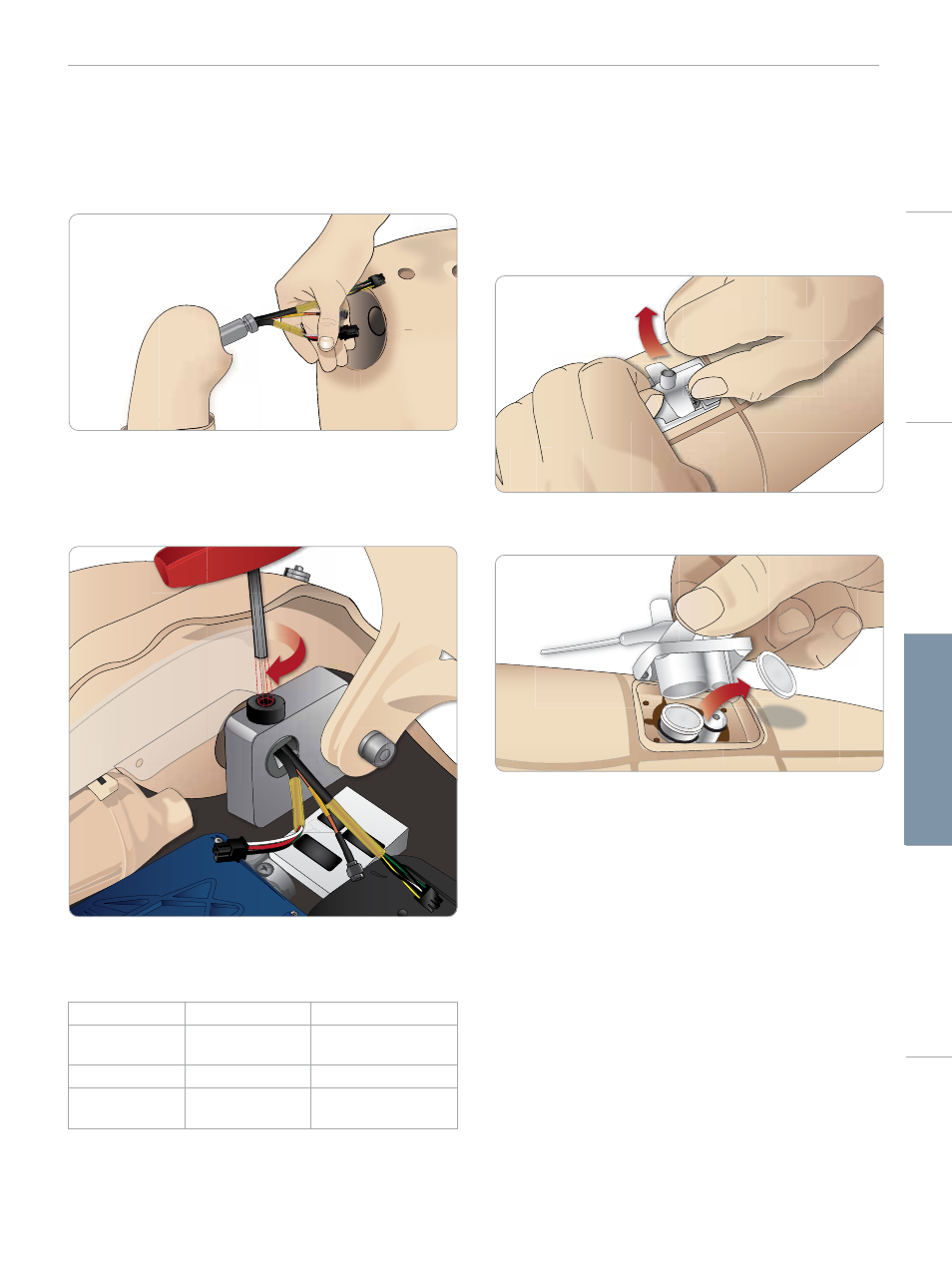

Attaching the Right Arm

Open the torso as described in steps 1 - 4, Opening the Torso.
Follow the procedures listed below in reverse to detach the arms.

1 Align the arm axle with the shoulder socket.

2 Feed the cables from the arm axle through the shoulder socket

3 Push the axle into the bracket until it is flush with the inside of

the bracket.

4 Tighten the shoulder screw with the Allen wrench.

JAW

ANT RIGH

T

ARM

LA CONV

JAW

AN

5 Connect the corresponding cables as shown below.

Right Arm to Torso – Cable and Tube Descriptions

Name/Label

Tube/Cable Color

Connector Description

Right Arm

Black harness cable

Black rectangular
connector, 4 lead

Jaw Ant

Coax

Round silver connector

To LA Conv

Black, insulation

Black rectangular
connector, 8 lead

Replacing IV Arm Catheter/Filter

Replace the IV catheter module if it is damaged or if resistance is
unrealistically high when injecting fluids.

1 Unzip and fold down the IV arm skin to expose the IV catheter

module

2 Using the no. 4 Phillips screwdriver; remove the 4 screws and

pull the IV module out of the arm.

3 Lift the IV catheter up and out, exposing the recess where the

filter is located.

4 Lift out the IV filter and replace with a new filter.
