28

SETUP

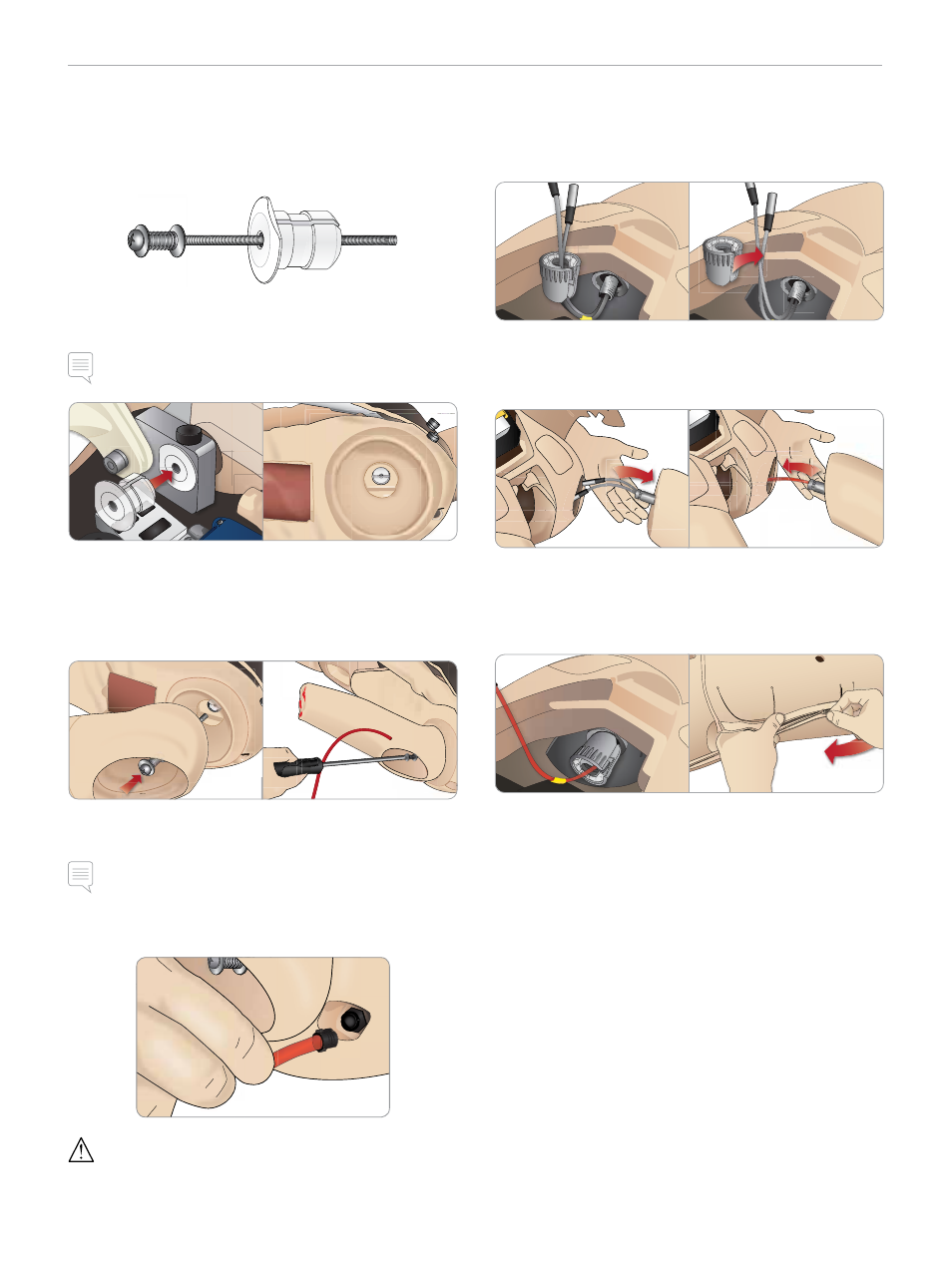

Attaching SimMan 3G Amputation or

Shotgun Arm

The Arm Adapter and Adapter Screw are designed to attach an
Amputation or Gunshot Arm to the Patient Simulator.

1 Fit the Arm Adapter into the hole in the arm bracket from inside

of the torso.

Note: Ensure that the flat edge of the adapter is facing the chest

hinge.

LA PULSES

BP

LA

CONV

BP

U

PU

PU

PU

L

A P

ULS

PU

A P

U

2 The Adapter is now in place and the Trauma Arm can now be

connected with the Adapter Screw.

3 Thread the Adapter Screw through the Amputation Arm and

align the screw with the hole in the Arm Adapter.

4 Secure the Adapter with one hand from inside the torso. Screw

the Adapter Screw using the Phillips screwdriver.

Note: Tighten screw as desired to simulate more or less Arm Range

of Motion.

5 Connect the red tube from the Amputation Arm to the nearest

blood port on the torso.

Caution: Do not over rotate arm. Over rotating the arm may cause
the red vinyl tubing to disconnect.

Replacing SimMan 3G Left Leg with

Trauma Leg

1 Remove the SimMan 3G default leg. Open Torso Skin and

stomach foam as shown in Maintenance.

2 Unscrew hip joint connector. Remove the leg cables and tubes

from the connector.

3 Carefully remove the left leg with cables and tubes.

4 Insert the Amputation or Gunshot Leg with blood tube into the

leg socket.

5 Insert the blood tube into the side slot of the connector. Screw

the connector in place with one hand.

6 Connect the leg tube to the corresponding tube, as labelled

inside the torso.

7 Close the Stomach Foam and zip the Torso Skin back into place.
