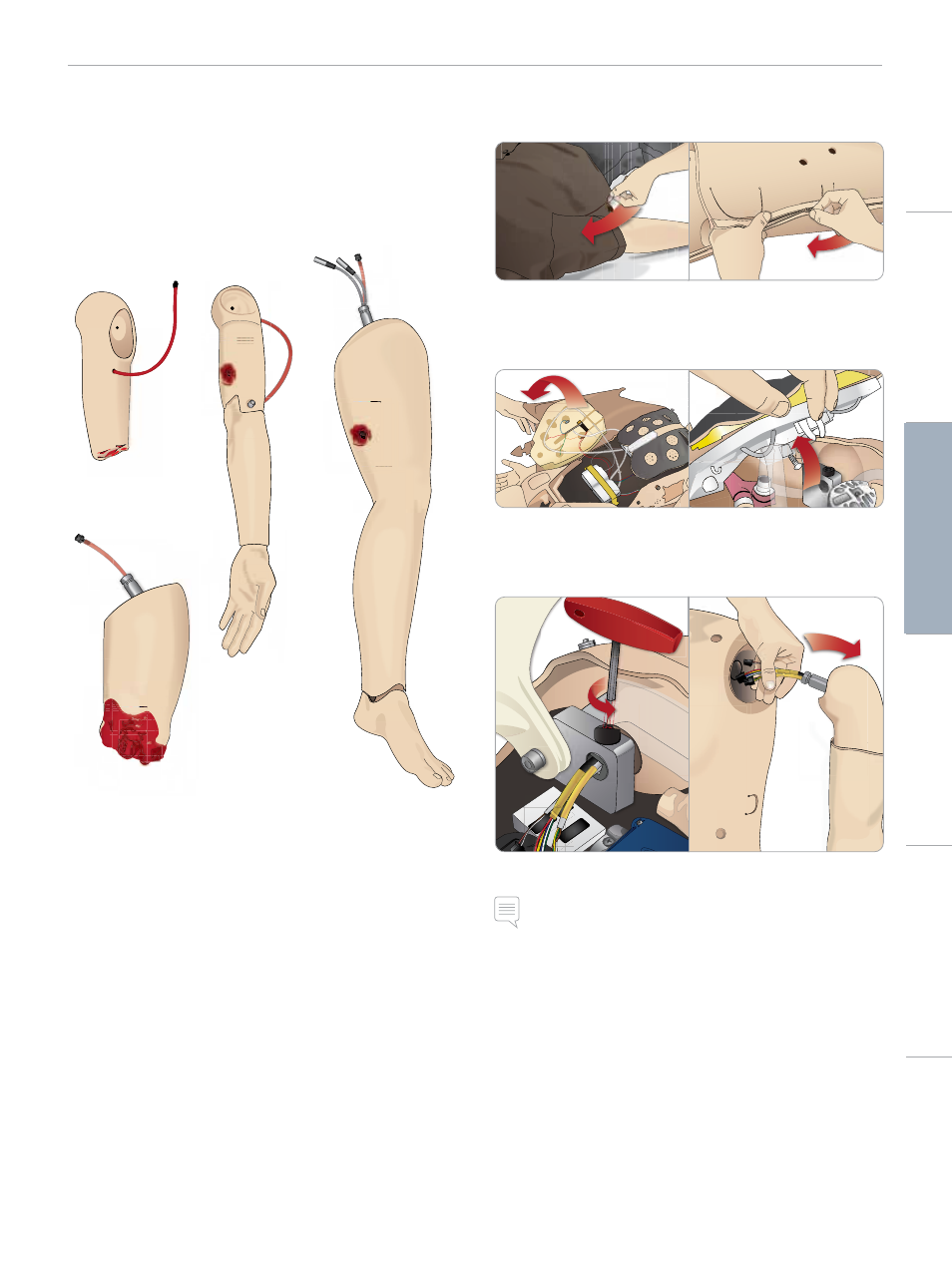

Bleeding Modules (Optional)
Introduction
The SimMan 3G Bleeding Module kit includes trauma modules which
can be fitted to SimMan 3G to simulate bleeding patient cases. After
the simulation is completed, leave the trauma modules connected,
and perform the cleaning instructions as stated in Maintenance.
– Amputated Arm SimMan 3G
– Gunshot Arm SimMan 3G
– Amputated Leg SimMan 3G
– Gunshot Leg SimMan 3G
Removing SimMan 3G Left Arm
1 Unzip the clothing zippers on the right side. Remove the shirt.
2 Unzip the zippers on the left side of the torso. Open the Torso
Skin to one side.
3 Open the Stomach Foam to one side.
4 Lift the hinged chest plate to access the arm bolt.
5 Unscrew the left Arm Screw with the allen key and disconnect
all Arm cables.
LA PULSES
BP
LA
CONV
P
B
L
BP
PULSES
L
L
LA
B
6 Remove the arm with cables from the arm socket.
Note: Do not unscrew the Arm Screw fully.
