Chapter 4: Using Your Stoppering Tray Dryer
Product Service 1-800-522-7658 15
Stoppering Tray Dryer Controls

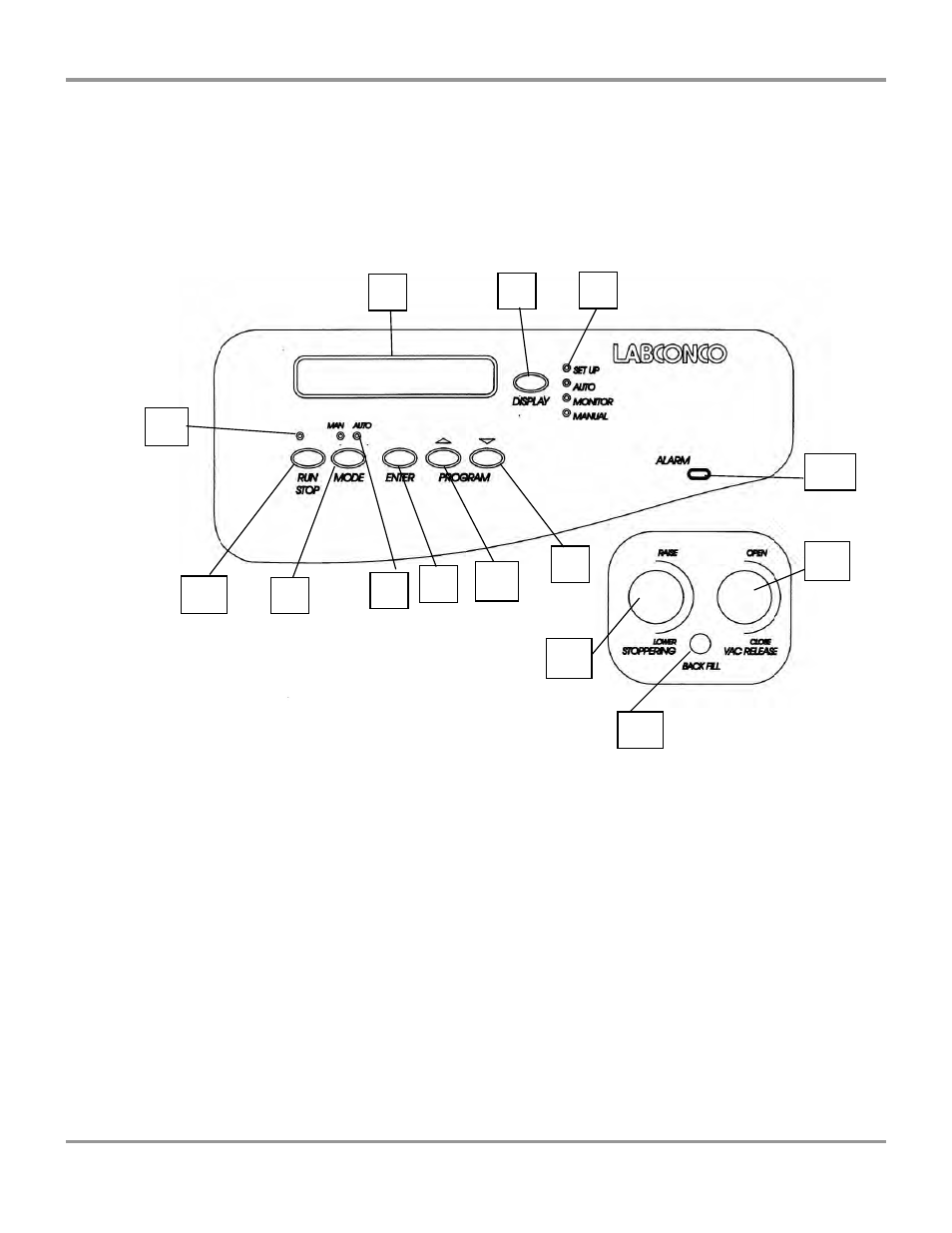

The control panel for the Stoppering Tray Dryer is shown with a description about
its function.
1.
Display. Displays all necessary programming and operational data. Provides
prompts to aid in programming.
2.
Display Selector. Changes format of display from “monitor’ to “auto” to
“manual” to “set up” screen.
3.
Display Indicators. Amber lamps indicate which display “screen” is shown.
4.
Alarm Indicator. Red LED indicates that a system alarm has occurred.
5.
Decrease Switch. Used in programming to decrease a parameter set point.
6.
Increase Switch. Used in programming to increase a parameter set point.
7.
Enter Switch. Used in programming to enter a selected set point into memory.
6
14
2 3
4
13
11
10
12
1
5
6
7
8
9
14
