Chapter 6: Maintaining Your Filtered Enclosure

Product Service 1-800-522-7658

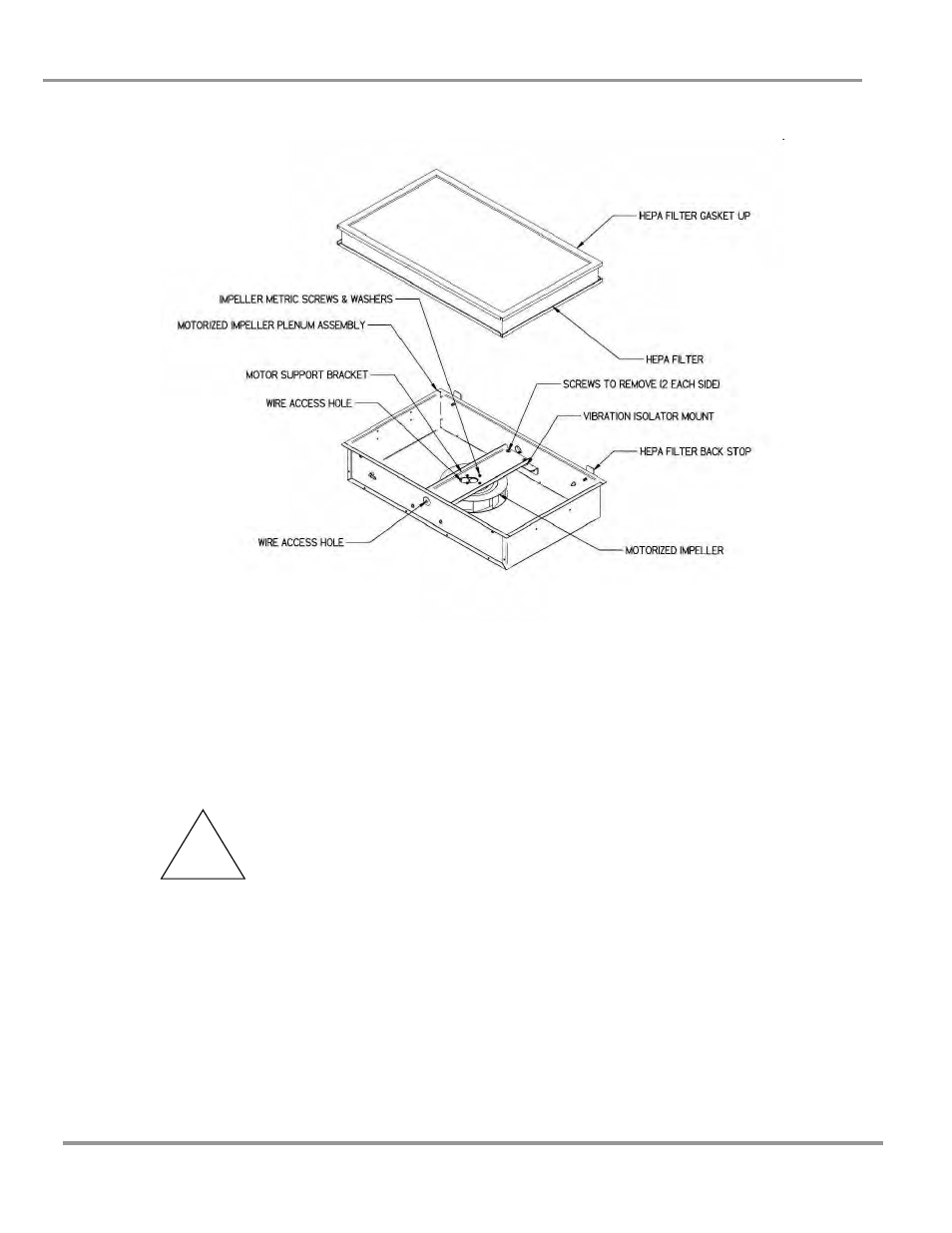

Figure 6-4

Motorized Impeller Replacement

Speed Control Replacement

XPert Filtered Balance System

Do NOT contact blower wheel while still in motion.

NE PAS être en contact avec la roué du ventilateur tant qu’il est
en marche.

1. Remove the bracket that the speed control is attached to. See Figures 6-1, 6-2

and 6-3.

2. Remove the two screws holding the speed control using a Phillips screwdriver.

Refer to Appendix A for Replacement Parts Diagram.

3. Disconnect all wires leading to the speed control. Connect wires on new speed

control in the same position as the old speed control.

4. Reassemble to the system in the same position and with the same screws that

were removed earlier.
