Page 21

Chapter 3: Getting Started

Product Service 1-800-522-7658

See Figure 3-4. The grounding connection shall not be made to the terminal box
cover. The building electrical supply system for the remote blower should include
overload protection such as a switch or circuit breaker in close proximity and
within easy reach of the operator. The switch or circuit breaker shall be marked as
the disconnecting device. Consult NEC-2002 for proper installation.

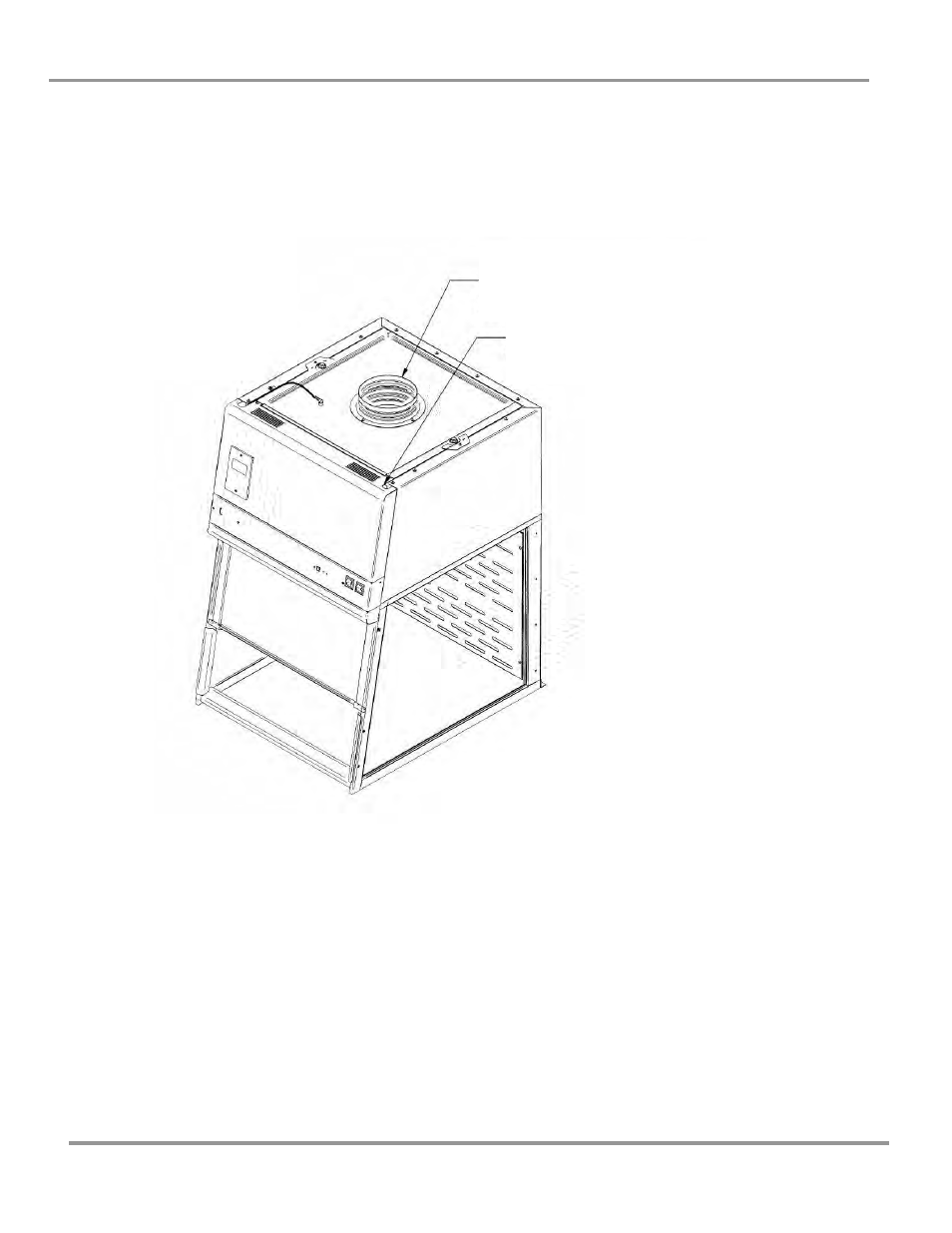

Figure 3-4

XPert Filtered Balance Station Conduit Location for Wiring External

Remote Blower.

2', 3', & 4' XPERT FILTRED

BALANCE STATION 6.06" ID

EXHAUST OUTLET TO REMOTE

BLOWER, 10.09” ID FOR 5' AND 6'

ROUTE CONDUIT THROUGH HOLE

PROVIDED IN FRONT PANEL
