Chapter 3: Getting Started

Product Service 1-800-522-7658

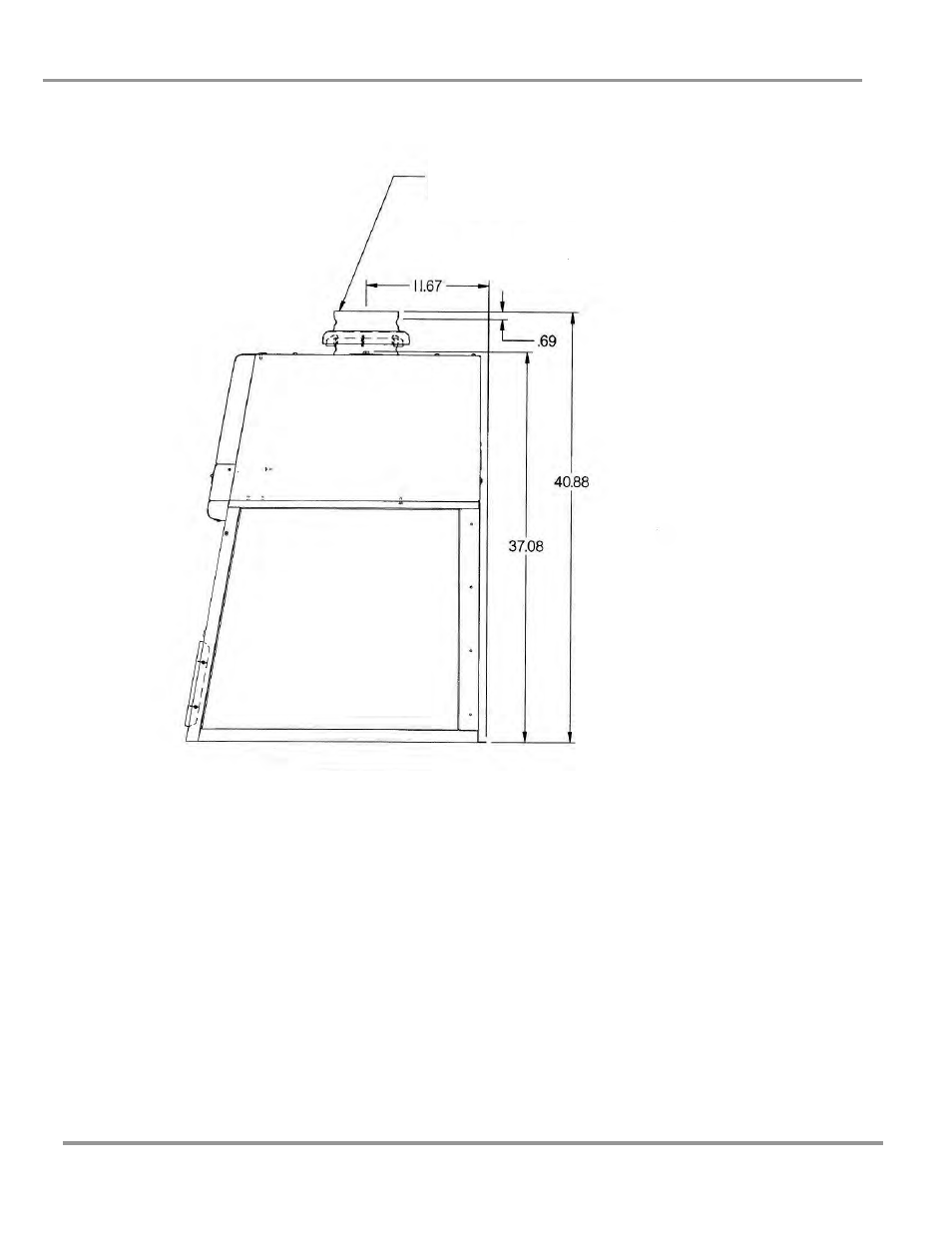

Figure 3-3

Optional Canopy Exhaust Connection shown installed on XPert

Filtered Balance System for outside exhaust Part #3924400 (2'),

3924401 (3'), 3924402 (4'), 39294403 (5'), and 3924404 (6')

FOR 6" NOMINAL EXHAUST DUCT
CONNECTION 6.09" ID, 6.19" OD ON 2', 3' AND 4'
10" NOMINAL ON 5' AND 6'
10.09" ID, 10.19" OD
