Hi Flow

Sampler Operation
Instruction 0055-9017 27
2.17 Access Test IDs
Note:
Access Test IDs can only be selected if operating in the Expanded Menu Mode.
Refer to Section 2.8.
Saved test records can be identified (e.g., location of test, type of test, name of
operator, etc.) by manually entering up to two lines of text, with each line containing a
maximum of 20 alphanumerical characters. This information will be associated with all
succeeding tests, and will appear when the test record is either viewed or printed. The
chosen Test ID remains in effect until a new Test ID is selected.
Selecting Access Test IDs from the Expanded Menu System allows the user to select a
previously entered Test ID, create a new Test ID or edit an old one, send the Test IDs to
a computer, or erase all existing Test IDs.
2.17.1 Select Test IDs
Select a Test ID as follows:

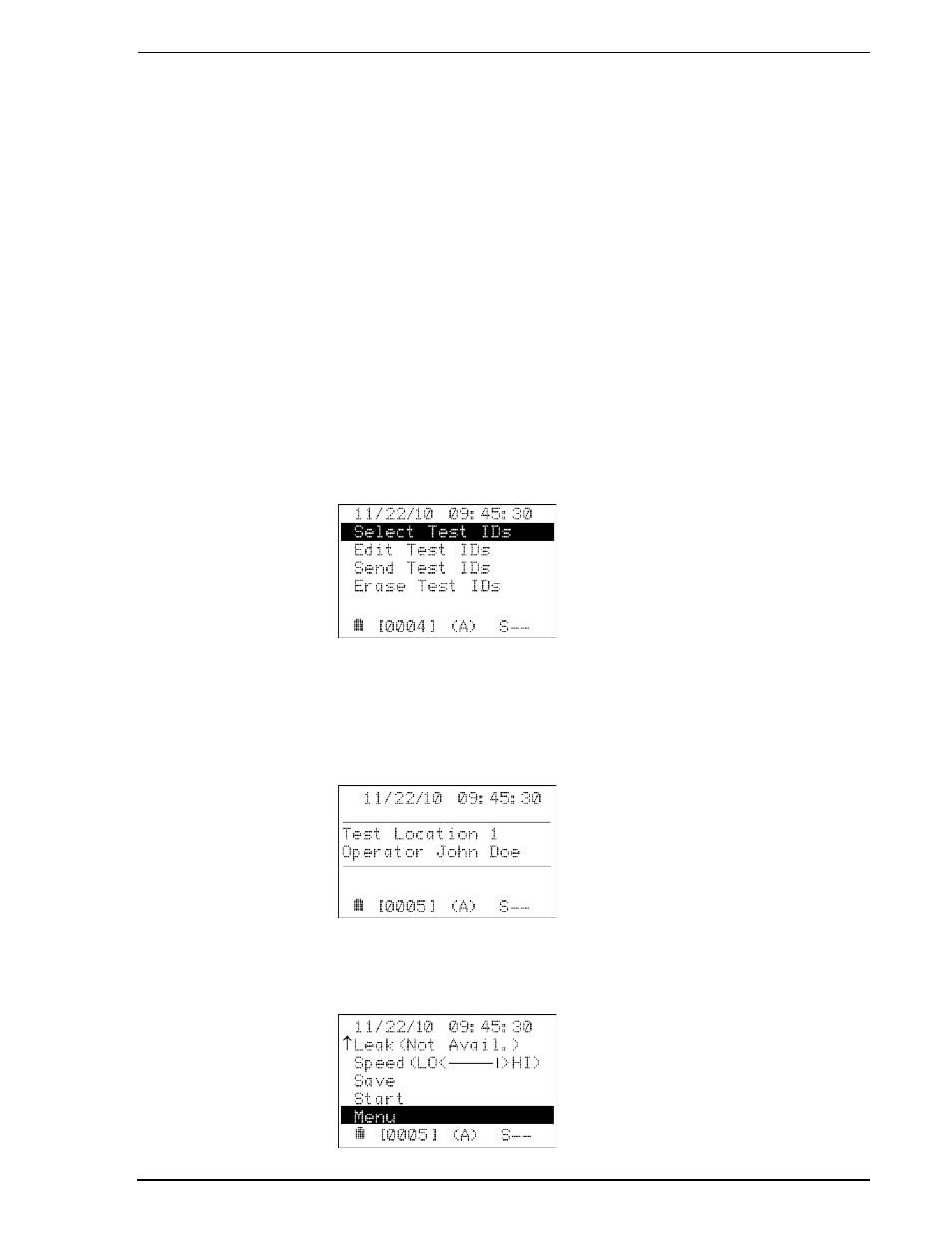

1. From the Expanded Main Screen, select Menu > Access Test IDs > Select Test IDs.
2. Use the ∧∨ keys to scroll through any previously stored Test IDs until the desired ID is
displayed. In the example below, Test ID 0005 has been chosen.
Tip:
To quickly scroll through the Test IDs, press and hold down
the ∧ or ∨ key.
3. Select the displayed Test ID by pressing the I/O ↵ key, and then return to the Main
Screen by pressing ESC twice. Observe that [0005] is now displayed at the bottom
of the screen.
