Detailed IO Specifications
Appendix
IND100077-149

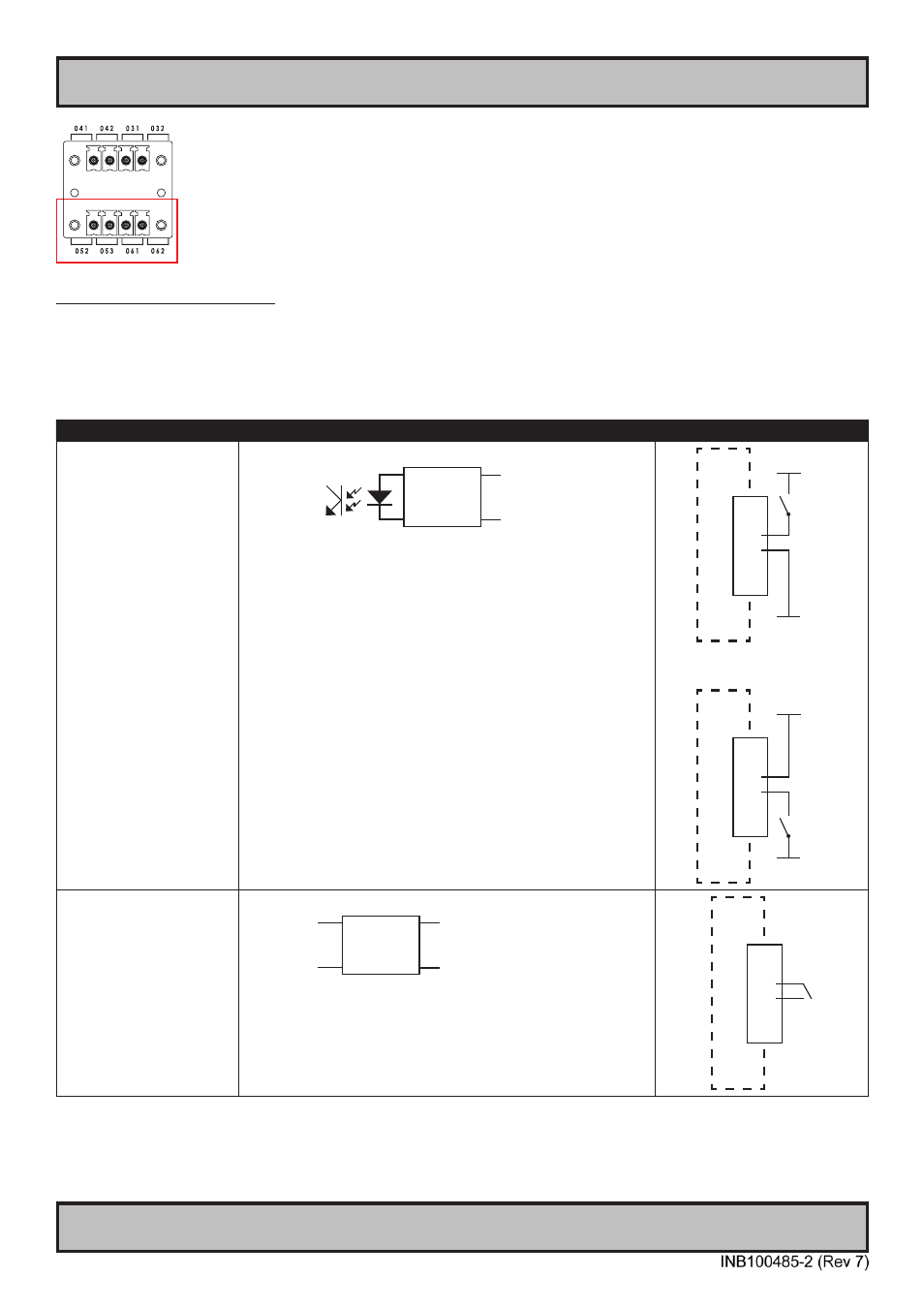

DIGITAL INPUT: (X1 DIG IN)
Brief explanation for X1 DIG In:
The DIO0_GPI4 signal can be read via software. It is normally high. If 12-24V is applied between
pin X1 - In: 052 (+24 VDC) and pin X1 - In: 053 (GND), the DIO0_GPI4 signal will go to a low state.
The DIO0_GPI5 signal can be read via software. It is normally low.
If the pin X1 - In: 061 (+24 VDC) and pin X1 - In: 062 is shortened, the DIO0_GPI5 signal will go to a high state.
Software Read Signals (API) Internal Circuit Application Circuit
Intel® Atom™ Models:
AIPC_READ_GPI
Intel® Core™2 Duo Models:
CPLD_Status
X1 - In: 052 (+24VDC)
X1 - In: 053 (GND)
Digital Input:
DIO0_GPI4
Overvoltage
and polarity
protection
Galvanically isolated.
Unit
052
053
24VDC
Power return
Unit
052
053
24VDC
Power return
Intel® Atom™ Models:
AIPC_READ_GPI
Intel® Core™2 Duo Models:
CPLD_Status
X1 - In: 061 (+24VDC)
X1 - In: 062 (+Input)
Digital Input:
DIO0_GPI5
Overvoltage
and polarity
protection
Not isolated.
Unit
061
062
