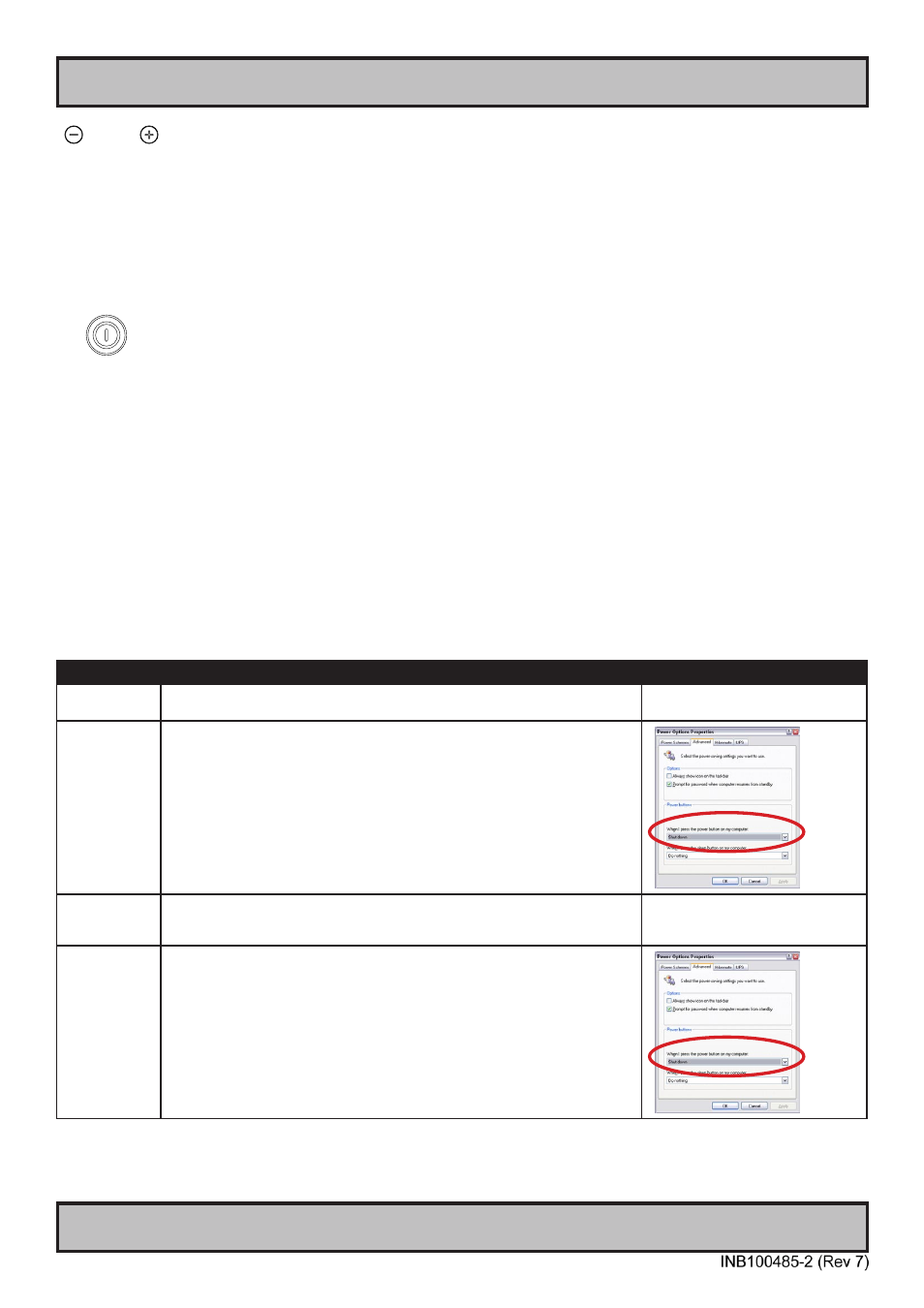

31 Operation
User Controls
IND100064-36
Brightness Adjust:
Brilliance / Brightness adjustment of the displayed image is adjusted by touching the (-) or (+) illuminated symbols.
Both symbols are visible as long as the unit is powered (cable connected). These buttons has extended functionality.
Additional Functionality for Brightness Adjust (-/+) and ON/OFF touch symbols via API
Touch Detection of these symbols goes through the unit’s regular Touch Screen driver and can be accessed via API
to allow extended functionality. Note: For Application Programming Interface (API) usage, please review dedicated
chapter in this manual.
Power ON/OFF:
Touching this symbol will either turn on or off the unit. When unit is on (power cable connected), the symbol is
not illuminated until the unit has been turned on once, then symbols will illuminate in white color. When unit is off
(power cable still connected) after it was previously turned on, the symbol is illuminated in white color (you can even
use the (-) and (+) to adjust the intensity of the illuminated symbols when in this state). When no power cable is
connected, no symbols will be illuminated. Please note that in some cases, the unit may be configured to alternative
power behaviour, see table below.
Note that when you turn off the unit, the Operating System (OS) will initiate its power shut down cycle, where
additional tasks such as exiting software will be performed automatically for some seconds before the unit eventually
is turned off.
Available Factory Default pre-programmed behaviour of Power ON/OFF
Unit delivered from factory are normally configured to act in “ATX” mode, but may in some cases be setup differently
as listed below, depending on customer requirements. Note that the functions listed below can not be user changed at
a later stage (only through factory or via dedicated Service Channels).
Power Mode Description Proper OS Setting required
AT Touching Power ON/OFF symbol has no effect. Unit is not turned on or off. Unit can
only be turned off by unplugging power cable or switch off external power supply.
None
ATX
(Default)
Touching Power ON/OFF symbol will turn on or shut down the unit into power on or
power off mode.
Note: The Operating System has to be configured to “Shut Down” when a “Power
ON/OFF Button” detection occured. (see illustration from Microsoft® Windows® XP
SP3 ENG, location “START/Settings/Control Panel/Power Options/Advanced” to the
right). If Operating System was installed at factory, it has already been configured,
but may in some cases be set differently for other reasons.
ON Only Touching Power ON/OFF symbol only detects and turns a unit on. Pressing this
symbol while the unit is running or booting will not shut down/turn off the unit. To shut
down/turn off unit, unplug power cable or switch off external power supply.
None
OFF Only Touching Power ON/OFF symbol while unit is off, will not turn the unit on. To turn on
the unit, connect power cable or switch on external power supply. Once the unit is
powered and running, it can be shut down/turned off by touching the Power On/OFF
symbol again.
Note: The Operating System has to be configured to “Shut Down” when a “Power
ON/OFF Button” detection occured. (see illustration from Microsoft® Windows® XP
SP3 ENG, location “START/Settings/Control Panel/Power Options/Advanced” to the
right). If Operating System was installed at factory, it has already been configured,
but may in some cases be set differently for other reasons.
