Functional description – Hanna Instruments HI 84500 User Manual
Page 7
7

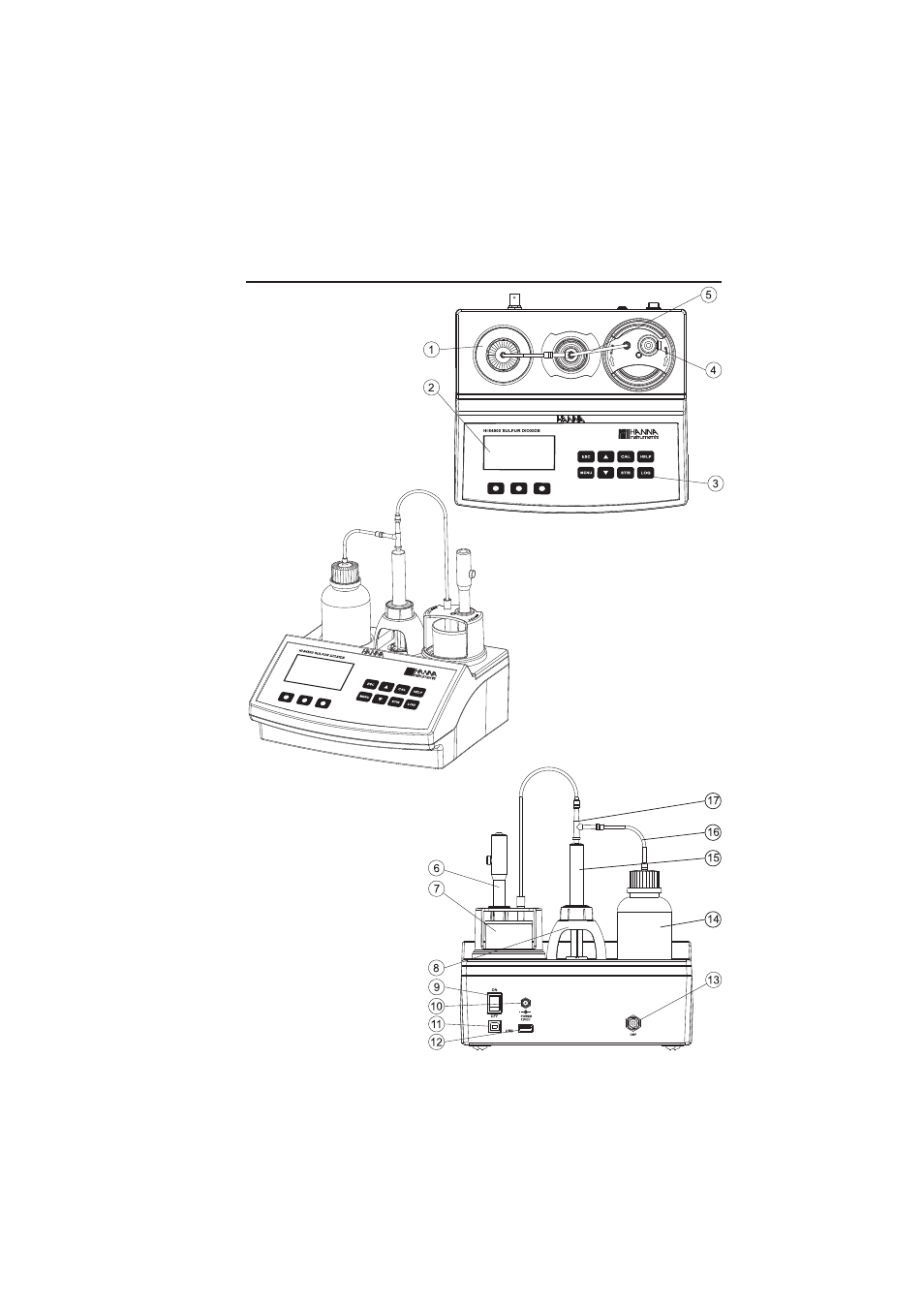

FRONT VIEW
REAR VIEW
6) ORP Electrode
7) Beaker
8) Dosing pump
9) Power switch
10) Power adapter
11) USB connector (PC interface)
12) USB connector (Storage interface)
13) BNC electrode connector
14) Titrant bottle
15) Syringe
16) Aspiration tube
17) Dosing Pump Valve
FUNCTIONAL DESCRIPTION
OVERHEAD VIEW
1) Titrant bottle
2) Liquid Crystal Display (LCD)
3) Keypad
4) Electrode holder
5) Dispensing tube
