Multi-Format Scaler Switch with HDBaseT
6
3.2 Connecting the Scaled Outputs
The SC-12BT supports three different output types allowing flexible and
reliable connection to a variety of displays and equipment. The output types of
this model include VGA, HDMI, and HDBaseT (Class B or HDBaseT-Lite™).
The video output area on the rear panel also has left and right line level analog
audio outputs.
3.3 HDBaseT UTP (Twisted Pair Catx) Connection
The SC-12BT Scaler Switch provides an HDBaseT output for connection to
any HDBaseT compliant receiver including those built-in some displays and
projecctors.
Hall Research's UH-1BT-R is the ideal and lowest cost receiver recommended
for use with the scaler. The output on the scaler is Class B or HDBaseT-
Lite™, it is compatible with all classes of HDBaseT receivers (Lite or non-
Lite), and the maximum extension distance supported through this output is
230ft (70m). We recommend using 23 gague Category 6 UTP cable for the
connection between the scaler’s HDBaseT output and the corresponding
HDBaseT receiver and if the distance is equal to or longer than 200 ft,
shielded category cables are recommended. For best results we recommend
using Alliance approved cables listed at www.hdbaset.org/cables
The HDBaseT output of the switcher only carries the video (and embedded
audio) and no data or power is extended through this port.

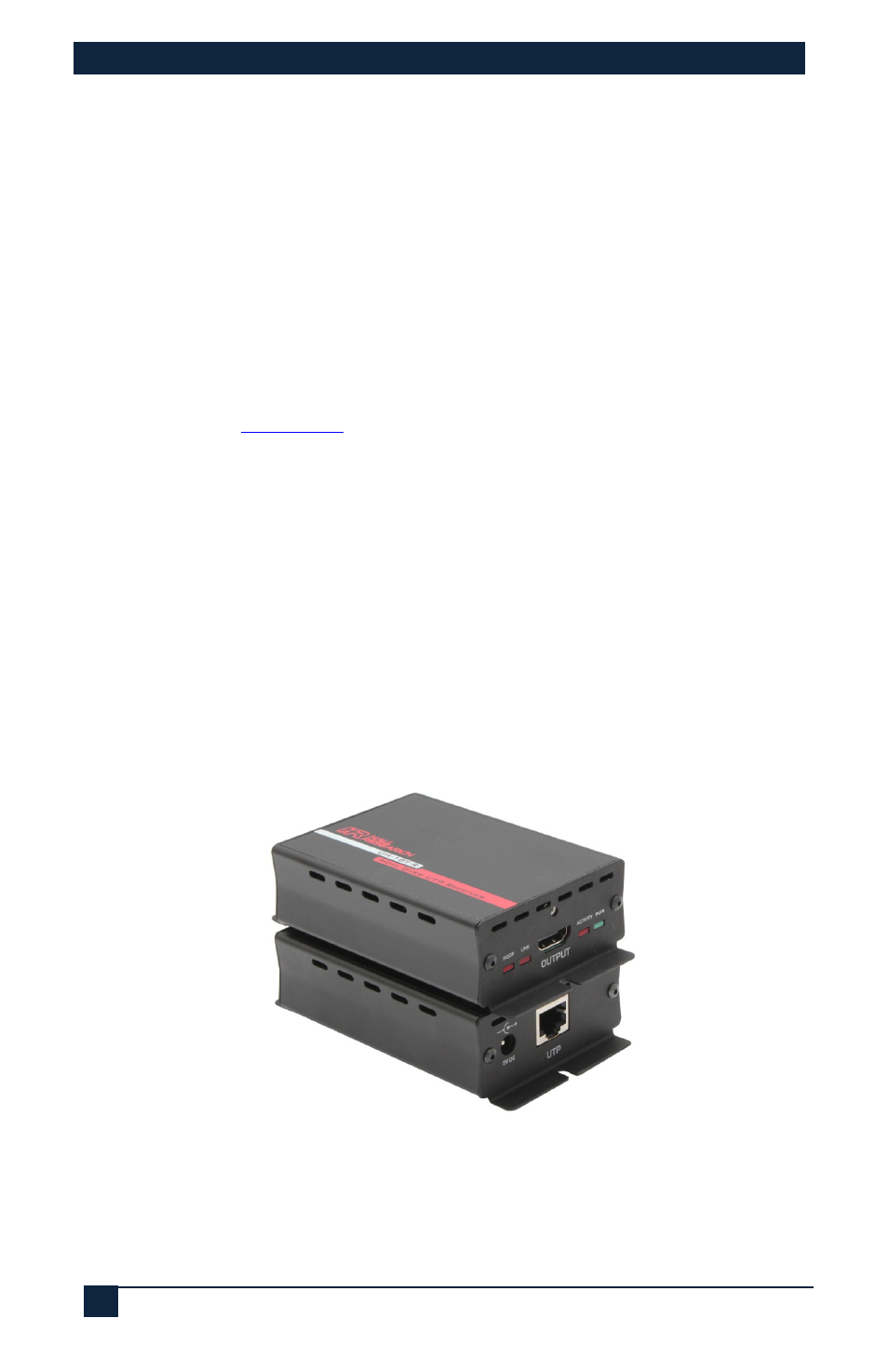

Front and rear of the UH-1BT-R recommended receiver
