Page 5
SC-12BT
5
3.0 Installation

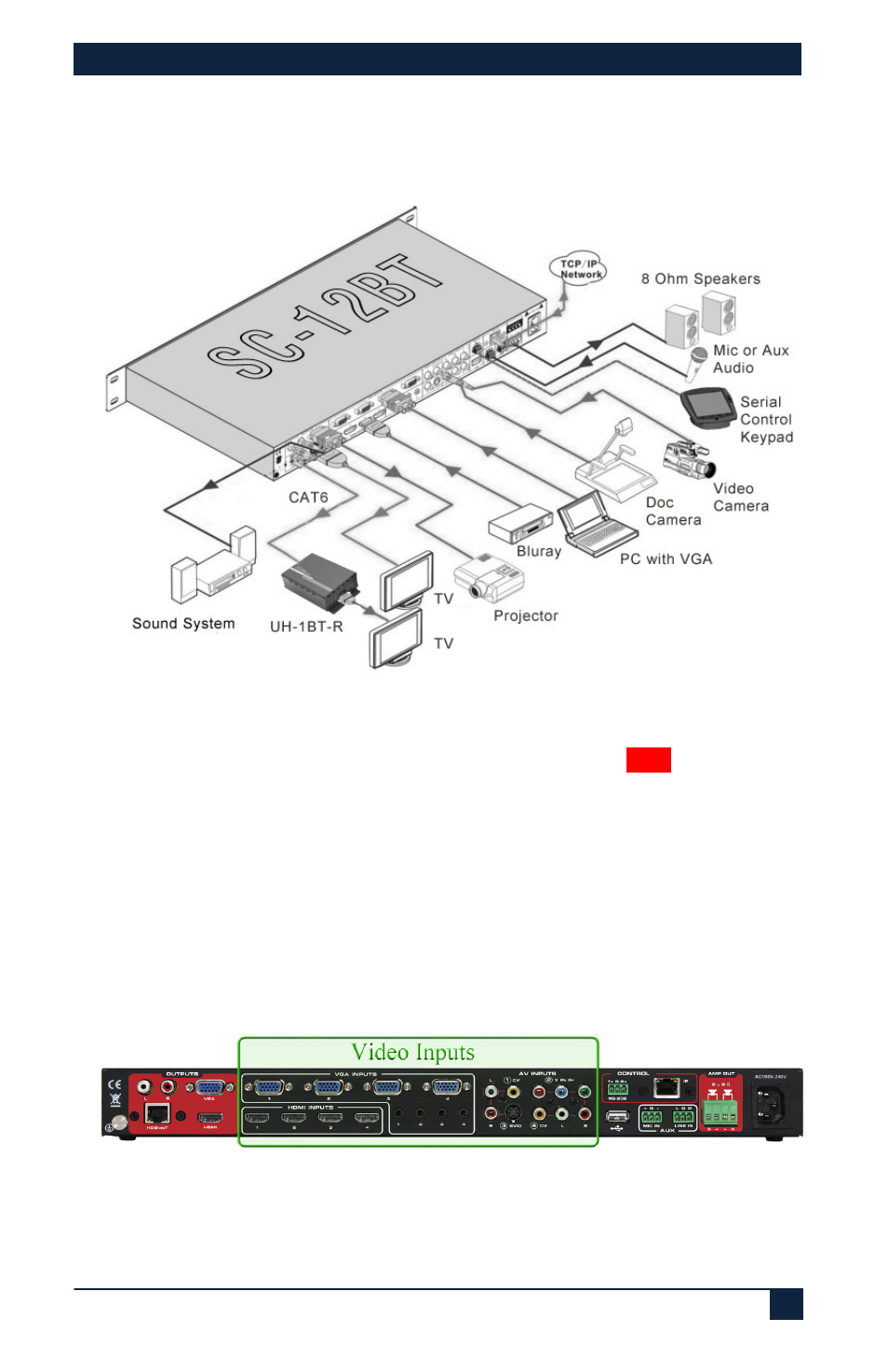

The following diagram illustrates typical input and output connections that can
be utilized with the SC-12BT within a typical system configuration:
Typical installation diagram
For convenience, output connectors on the rear panel have
RED
background.
3.1 Connecting the Video Inputs
The SC-12BT supports connection to a variety of different input sources,
making it a versatile addition to any AV installation. This unit supports four
HDMI inputs, four VGA inputs(four 3.5mm VGA corresponding audio
inputs), one YPbPr (Component) input, two Composite Video inputs, and one
S-Video input. Please be advised that the USB port on the unit is only
intended for service (firmware update), and does not support any video or data
pass-through.
Video inputs highlighted on the rear panel
