Wallplate VGA and Audio on UTP Transmitter

7

• If you do not want to cut off the connector on the end of the

power supply, then use the enclosed jack and solder a pair of

wires to it to extend it and connect those wires to the UVA-

WP.

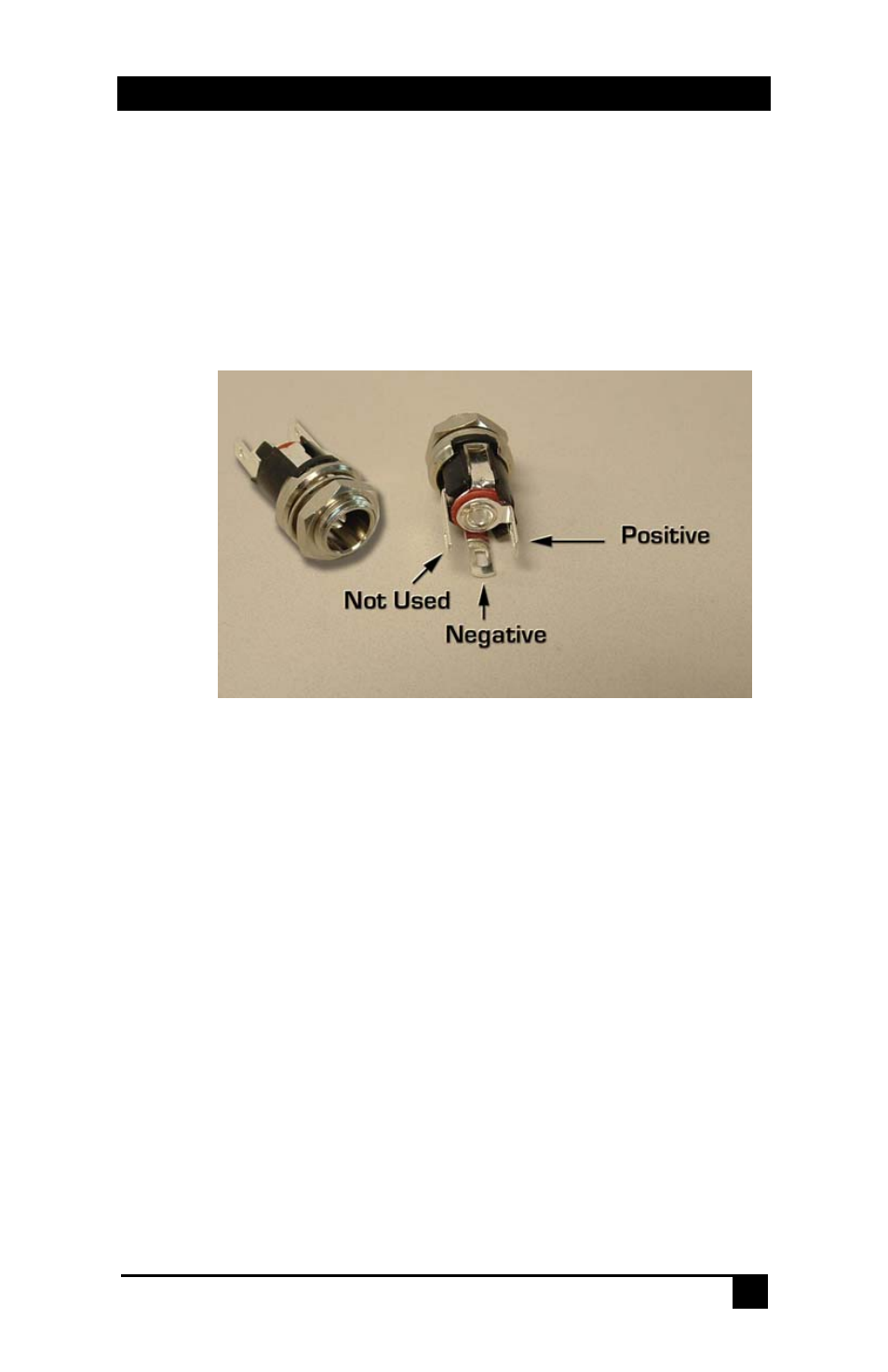

• Using the supplied 2.5mm jack also gives you the ability to

place the power supply outside of the wall. You can use a

separate single gang plate and install the supplied jack on it

and wire it to the terminals on the back of the UVA-WP.

Electrical Safety Note

Since the DC supply to the unit is only 6 volts with minimal current requirements, the product
qualifies as a Class 2 low-voltage device, and you are not required to run the DC cables in a
conduit. However if you will be installing the power supply in the wall or ceiling, since it has to
plug in to AC, you need an electrical junction box for it, and the AC line that brings high-voltage to
the junction-box should follow the electrical code for your specific installation. Always check your
local electrical codes to ensure compliance.
