Model UVA-WP

6

2.3

Connecting the Power Supply

• There is a 2-position screw terminal on the back of the unit.

You need to connect a 6 volt (could be 6 to 9v DC) power

supply into these terminals.

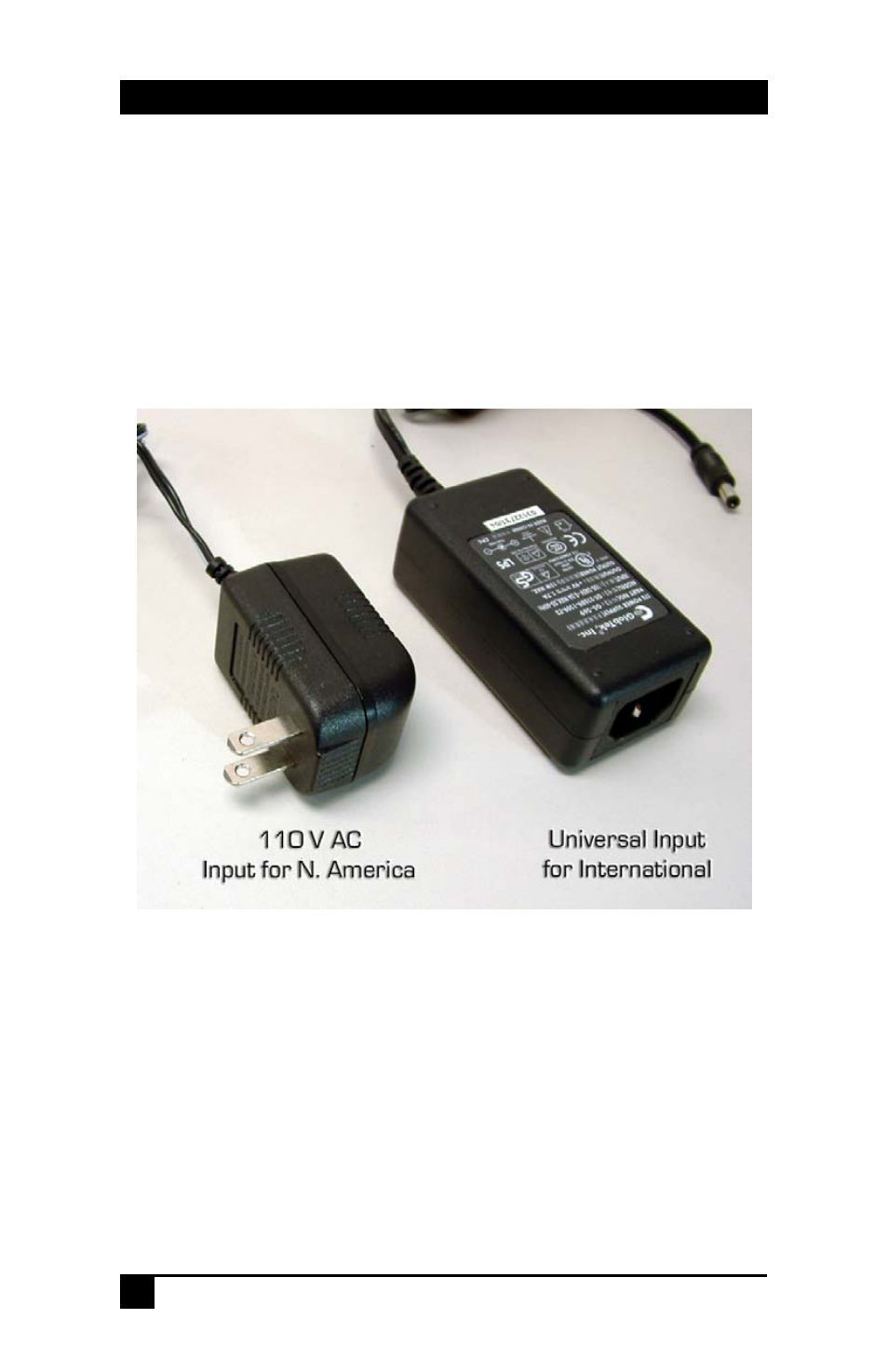

• In your package there is either of the following 2 power

supplies.

There is also a 2.5 mm Jack included in the package so that

you don’t have to cut the connector at the end of the supply.

• If you decide to cut the connector at the end of the supply,

then you have to connect it to the screw terminals. The power

supply cable has 2 conductors, the + terminal usually has a

white line or white writing on it. That goes into the + terminal

as noted on the printed circuit board of the UVA-WP. Verify

this with a voltmeter before powering the circuit.
