2.4 Connecting the Transmitter to the Receiver
The UTP RJ45 wiring follows the standard EIA/TIA568B (shown
below)
NOTICE
Do not connect this unit to any LAN device such as network cards or hubs as this may damage
the UVA/URA and/or the LAN device. Use EIA/TIA 568B standard straight-through patch wiring as
shown below. Do not use crossover cables.

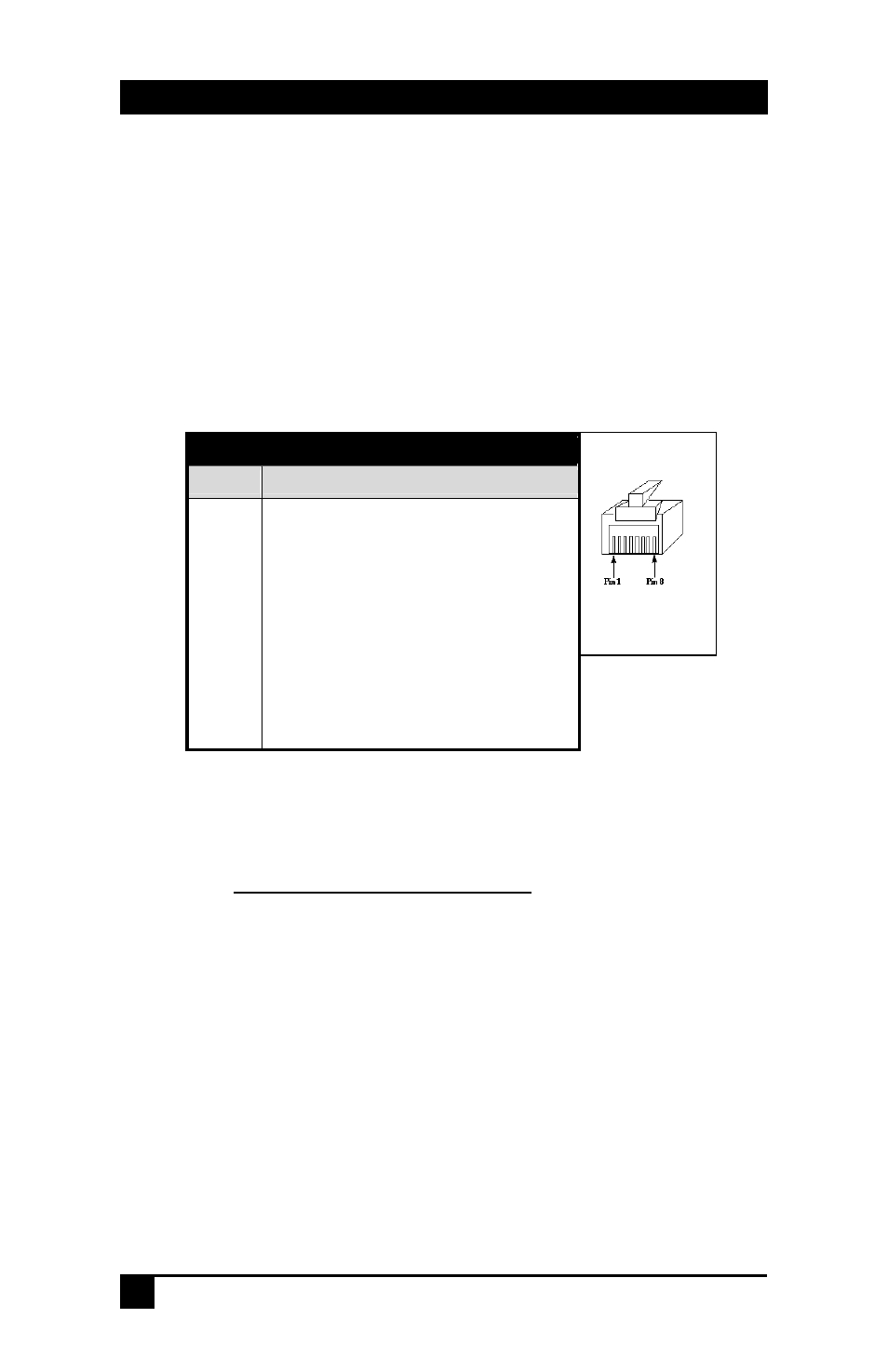

EIA/TIA 568B WIRING STANDARD
PIN Wire Color
1 White w/ Orange Stripe
2 Orange
3
White w/Green Stripe
4 Blue
5
White w/Blue Stripe
6 Green
7
White w/Brown Stripe
8 Brown
We recommend that you use zero-skew Cat5 cable to minimize color
skew particularly if the length of the cable is over 200 feet. See
section 3.1 UTP Cable Recommendations for more information
