Glow-worm Clearly Solar Vertical In-Roof Collector - Manual (Page 13)

13
5 Single Collector Flashing Kit - 22 0 - 75 0
Secure the side sections to the roof battens with the supplied
clamps, screws (No. 2) and Torx bit supplied, see diagram
5.8.
5.2 Support plates/board
Fix the top batten into position as shown in diagram 5.9.
Mount the support plates above the collector and make sure
that the support plates are on the collector frame slot, see
diagram 5.10.
Fix the support plates to the top roof batten with two screws
(No.3) using the supplied Torx bit.
Slide the board through the support plates.
Fix the board to the support plates with two screws (No. 2)
using the supplied Torx bit, see diagram 5.10.
Slide the ridge plate on the support plates, see diagram 5.12.
Make sure that the ridge plates are above the side sections
and engaged in the corresponding rail ( A).
Fix the ridge plate to the roof battens with the screws (No. 1)
using the supplied Torx bit, see diagram 5.11.

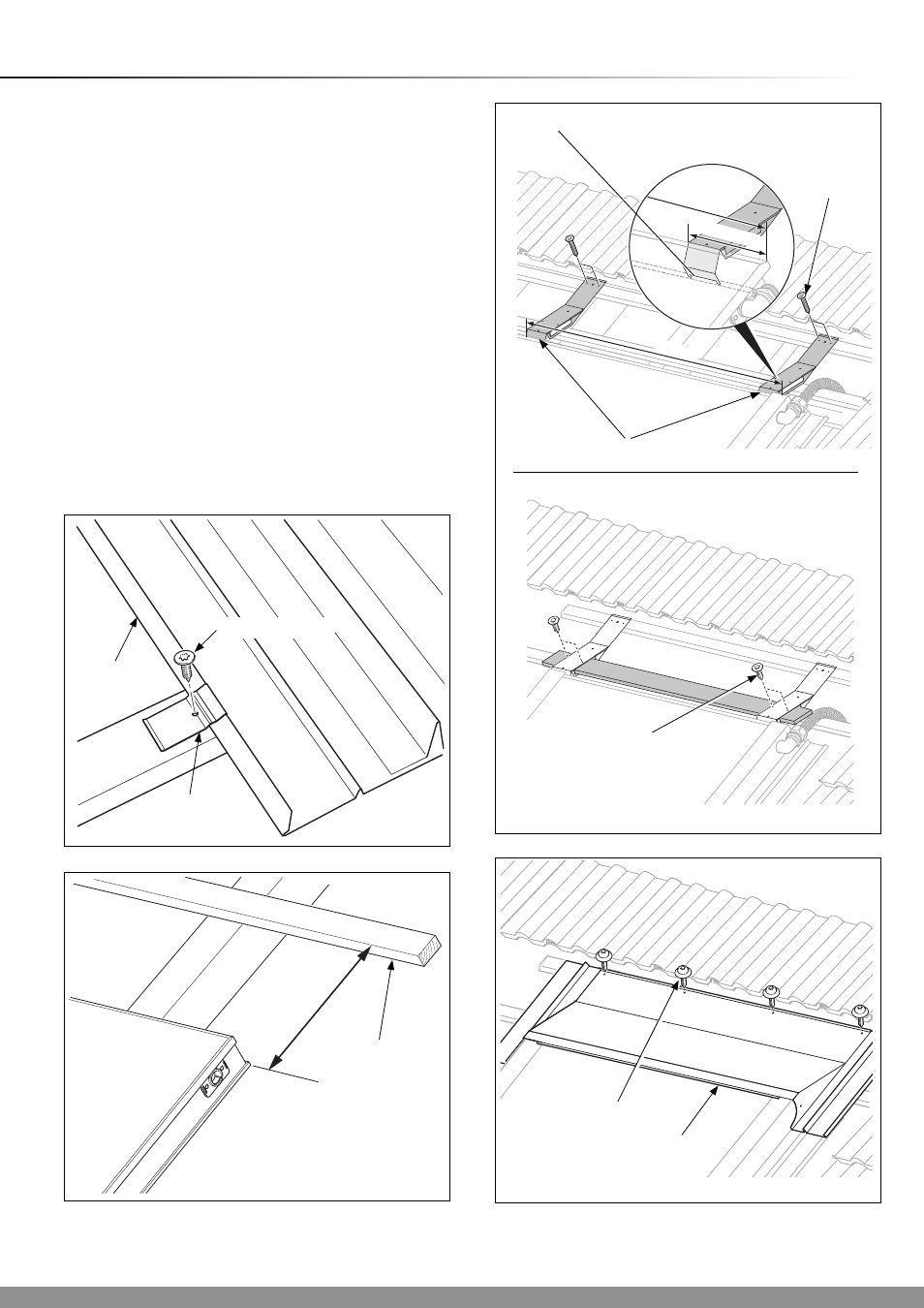

Diagram 5.8
14978
CLAMP
SIDE
SECTION
SCREW (No.2)
Diagram 5.10
15027
15029
max 150
1066
1066
COLLECTOR FRAME
SLOT
Diagram 5.11
15030
SCREWS (No.1)
RIDGE
PLATE
SCREWS
(No.2)
SCREWS
(No.3)
SUPPORT PLATES
Diagram 5.9
15308
350mm
TOP
BATTEN
