- 12 -
INSTALLATION
7.2 Recommendations before installing
Installation pipework must be designed and installed to ensure
venting of air from the system is possible.
b
Ensure that the water flow rate of the water circuit
corresponds to the nominal water flow rate of the
appliance (see ¨Technical data¨ chapter).
• Install the following components on the rear section of the
heat pump
- a filter,
- a ¼ shut –off valve on each side of the filter,
- a drain valve,
- an air separator (if necessary)
- a sludge deposit (if necessary).
b Insulate the pipes with a UV- and
hightemperature- resistant insulation.

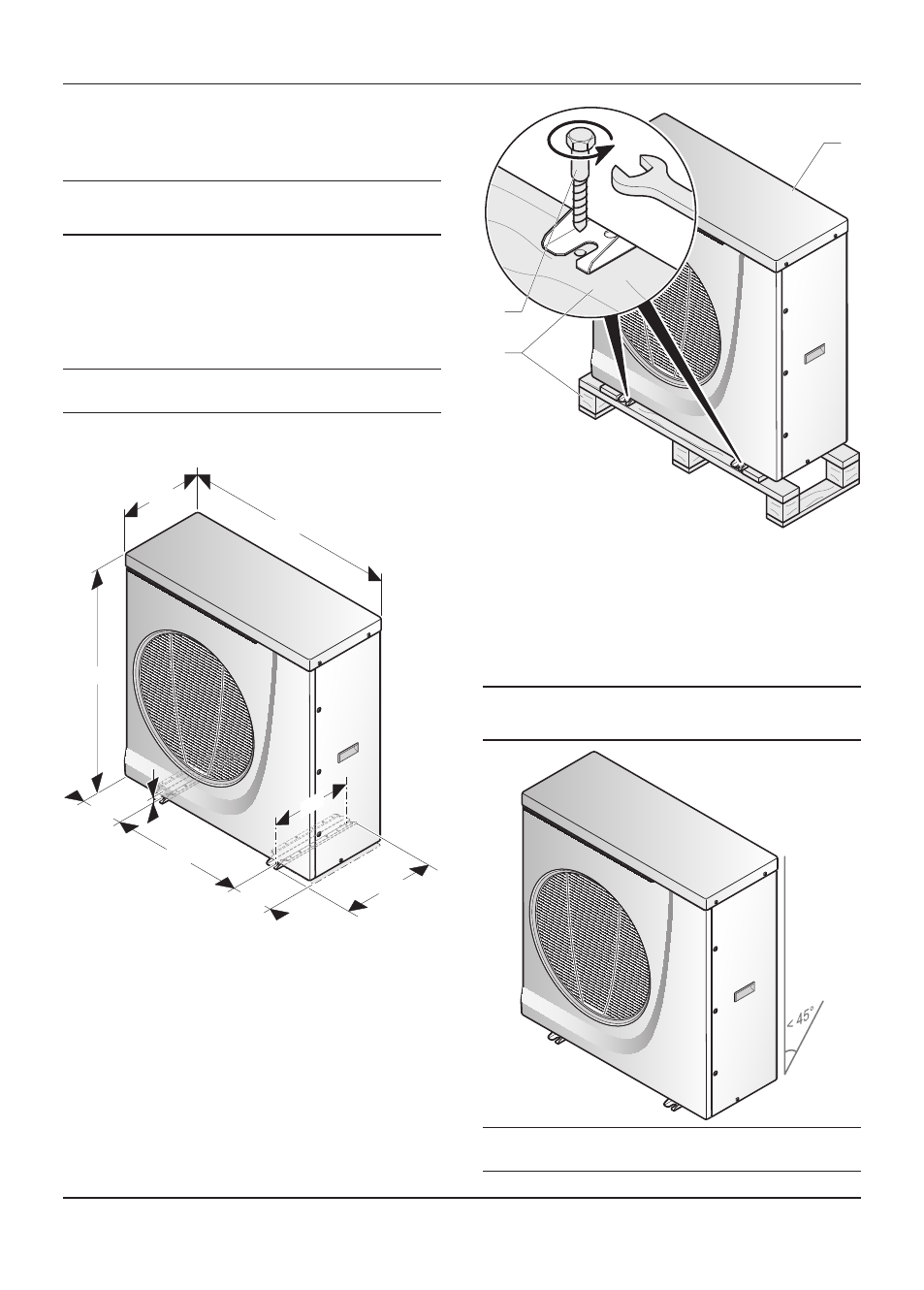

7.3 Dimensions
390
345
880
171
171
538
37
913
350
7.4 Mounting
7.4.1 Unpacking the appliance
• Carefully remove the packaging and protections without
damaging the parts of the appliance.
1
2
3
Key
1 Transport pallet
2 Attachment screws
3 Heat pump
• Remove the screws from the transport pallet at the front and
rear of the unit.
7.4.2 Transportation of the appliance
i
With regards to the Manual Handling Operations,
1992 Regulations, the following lift operation
exceeds the recommended weight for a one man lift.
a Warning! Two people at minimum are necessary
to move the appliance.
