- 11 -
INSTALLATION

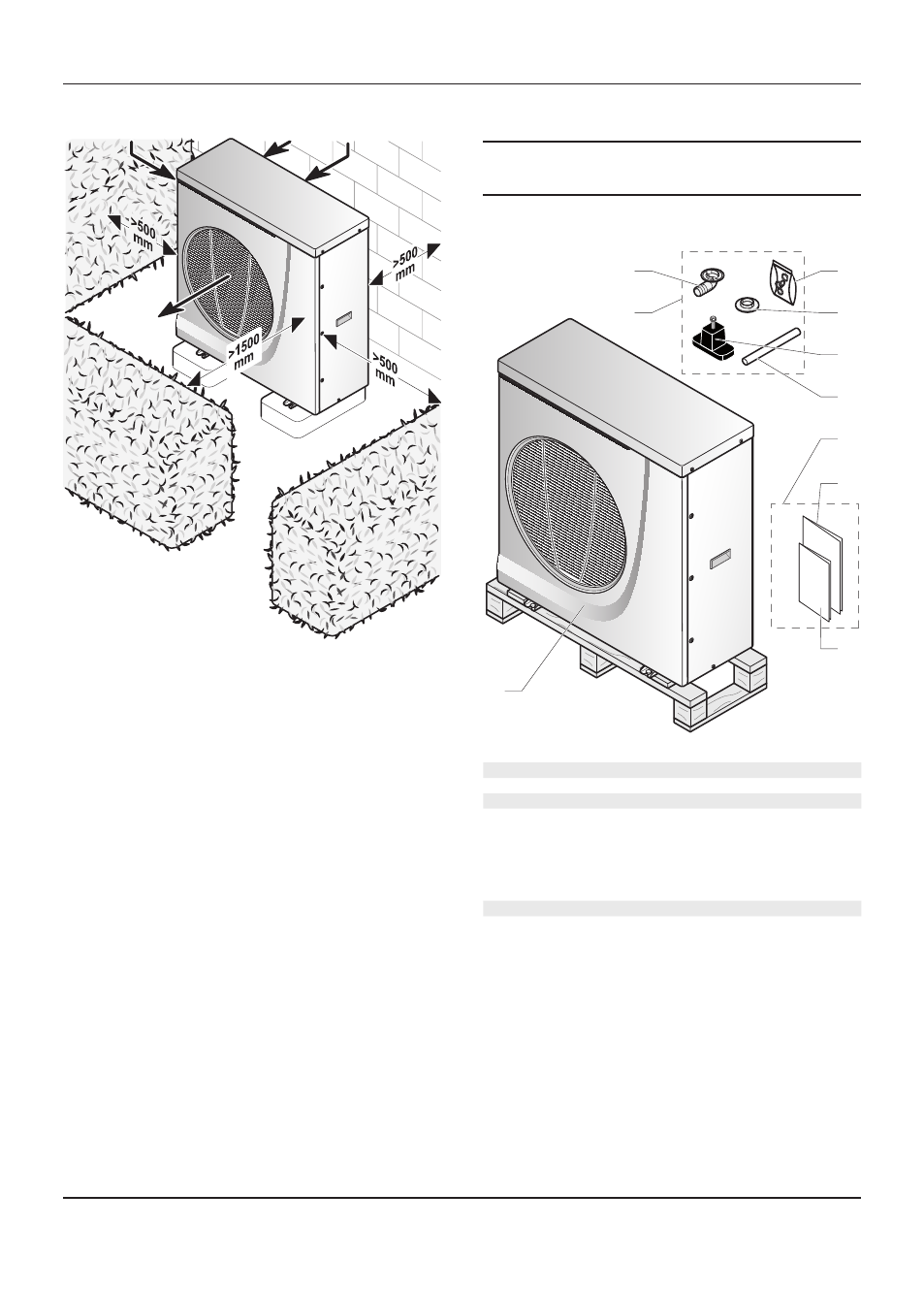

6.2 Clearances
• Respect the minimum dimensions shown in the drawing
above in order to ensure a correct air flow and to facilitate
maintenance operations.
• Make sure that the available space is sufficient for the
installation of the water system piping.
7 Appliance installation
b
Do not connect the heat pump directly to
a heating circuit. The Heat pump must be
connected to the Hydraulic module.
7.1 Scope of delivery
2.1
1
2
3.2
2.4
2.5
3
3.1
2.3
2.2
Key
1 Heat pump (x1)
2 Accessories bag (x1)
2.1 Drainage elbow (x1)
2.2 flat face washer 1" (x4)
2.3 Drain plug (x1)
2.4 Anti-vibration pads (x4)
2.5 Draining hose (x1)
3 Document package (x1)
3.1 Installation manual (x1)
3.2 Instructions for use (x1)
• Please check the contents.
