Glow-worm 30ci Plus - Manual (Page 16)

16 4000123944-2
7 Fixing Jig

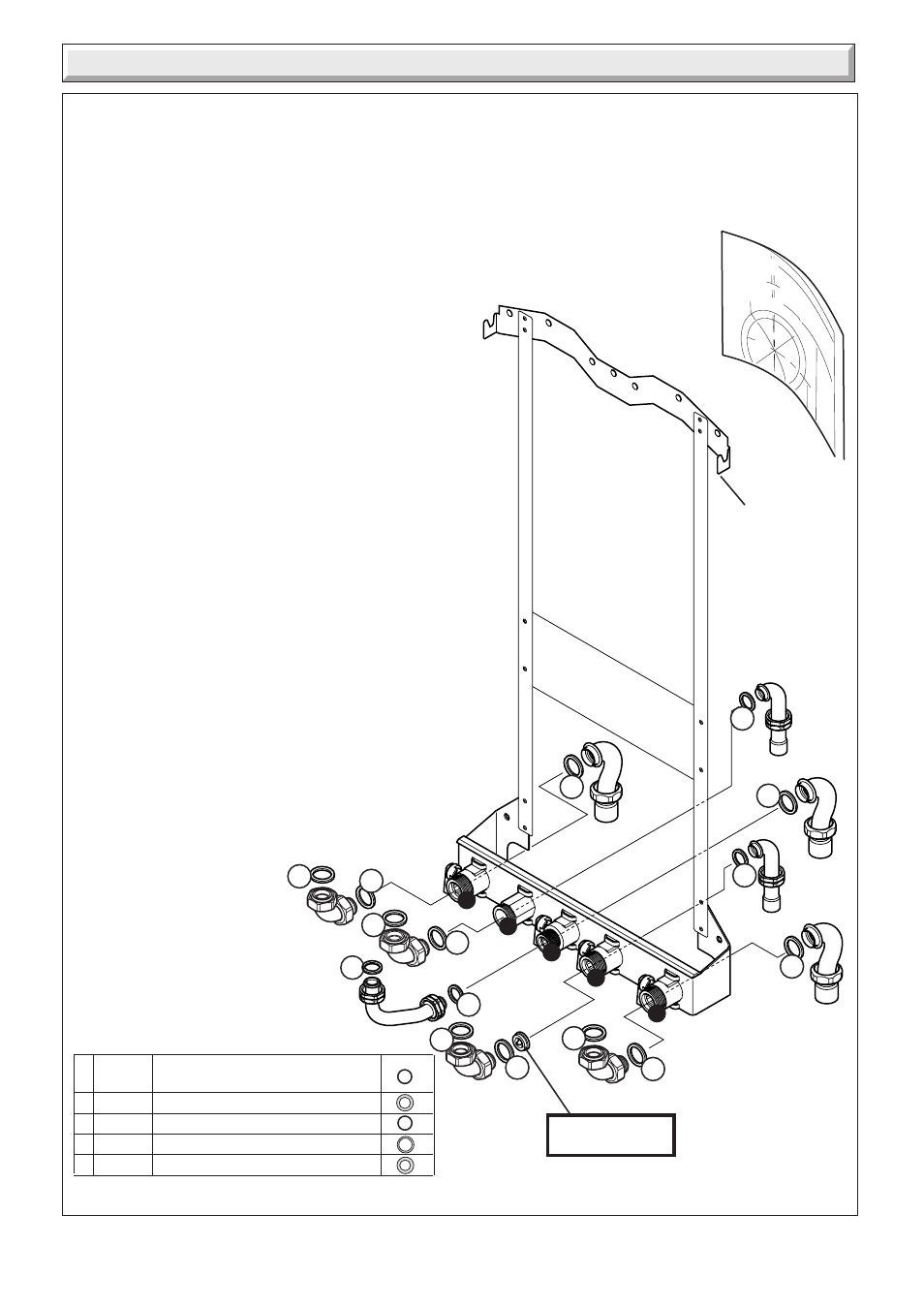

Diagram 7.1
11940a
22mm
22mm
15mm
15mm
22mm
V
W
W
W W
Z
Z
Z Z
X
X
X
Y
Y
Y
A
B
C
D
E
Cold water
inlet restrictor
FIXING JIG
Inclusive Isolating
Valves
Wall template
APPLIANCE
HANGING
BRACKET
The fixing jig is supplied within the boiler pack and is made up as follows :
A - Heating flow isolating valve.
B - Domestic hot water outlet.
C - Gas service cock.
D - Cold water inlet isolating valve.
E - Heating return isolating valve.
Documentation Pack, inclusive
- Literature (not illustrated)
- Benchmark Book (not illustrated)
- Guarantee Registration form (not illustrated)
- Rewards Club leaflet (not Illustrated)
- Wiring Diagram (not illustrated)
- Flue restrictor (not illustrated)
Bag containing :
- 1 x 15mm green fibre washer (shown as "v" in diagram)
- Cold Water Inlet Restrictor
- 5 x 22mm fibre washers (shown as "w" in diagram)
Fittings Pack, inclusive
- Wall template
- Discharge Safety valve connection incl. Knurled nut and O ring seal
15mm compression fitting
- Discharge Safety Valve Instruction sheet
- 230V External connection instruction sheet
- Filling loop extension knob
- 230V External controls connection plug
Bag containing :
- 3 x 22mm Installation connection pipes
- 2 x 15mm Installation connection pipes
Bag containing :
- 4 x 22mm boiler connection pipes
- 1 x 15mm boiler connection pipe
Bag containing :
- 4 x 15mm fibre washers (shown as "x" in diagram)
- 4 x 22mm fibre washers - large bore (shown as "y" in diagram)
- 5 x 22mm fibre washers - small bore (shown as "z" in diagram)
Sealing Washers :
30ciplus Description
V 1 (1) 15 mm Gas valve Connection only*
W 4 (5) 22 mm - smal bore
X 3 (4) 15 mm
Y 3 (4) 22 mm - large bore
Z 4 (5) 22 mm - smal bore
The quantity shown in bracket ( ) denotes the number supplied
* It is essential that this green sealing washer is only fitted to the gas valve connection in the position shown in the Fixing Jig diagram
