9. Connection of DOS
10. DOS indicator light instruction
DOS with three colors LED which can send out red, blue, green light. Also yellow, white, purple and
other colors light
t
hrough the combination.
Operators can know the DOS
‘s operating mode by judging the different colors which the LED sends out
and the flash frequency : green light flash means GPS location fixed, red and blue light indicate DOS working
mode. Under manual mode, stabilization mode or 3D mode, keep DOS in the static state. If it sends out purple
light it means DOS needs Gyro Reset.

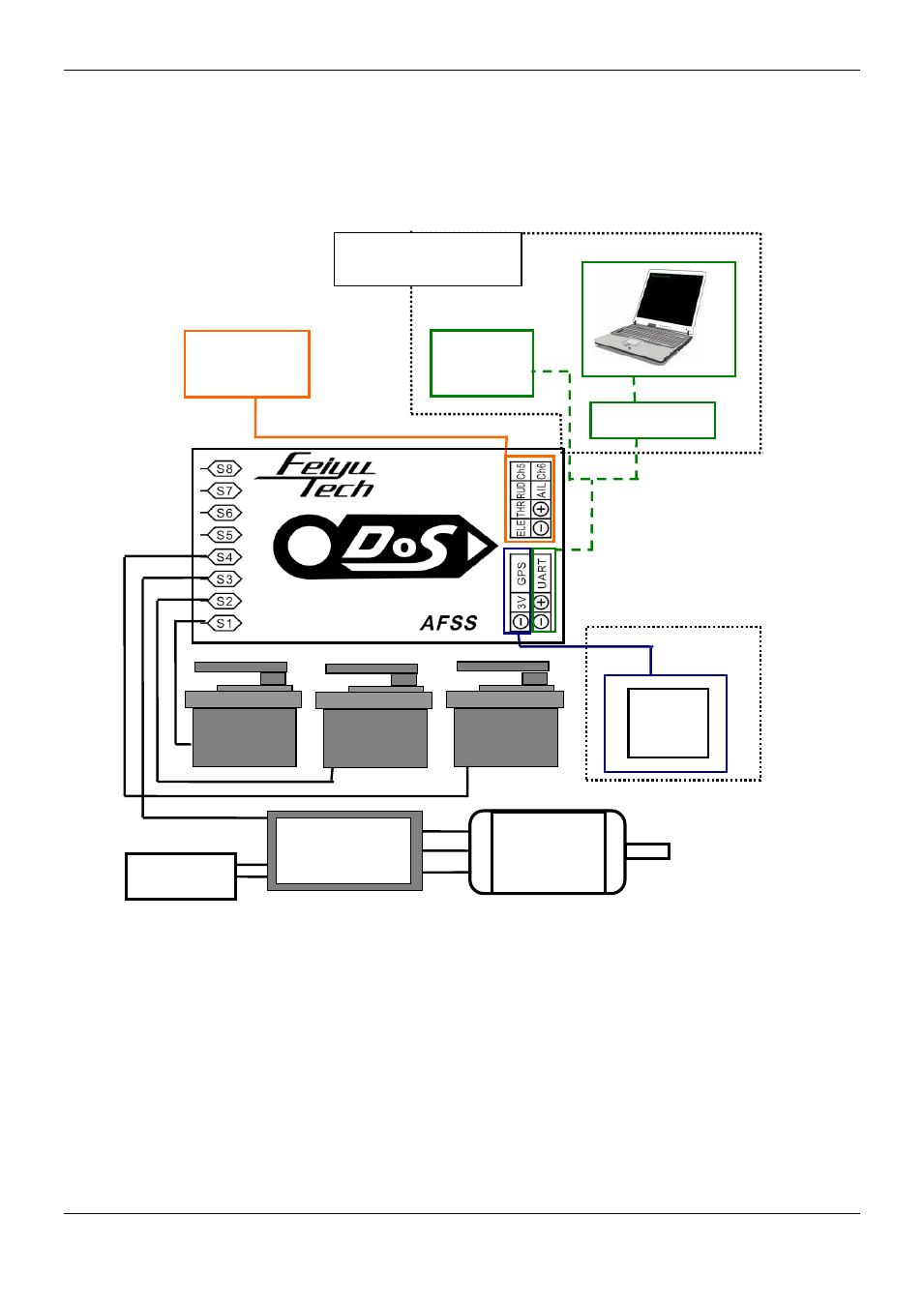

Battery
Motor
THR OUT
ESC
RC receiver
AIL OUT
RUD OUT
ELE OUT
GPS
Data Radio
USB Cable
Optional connection
Optional connection
