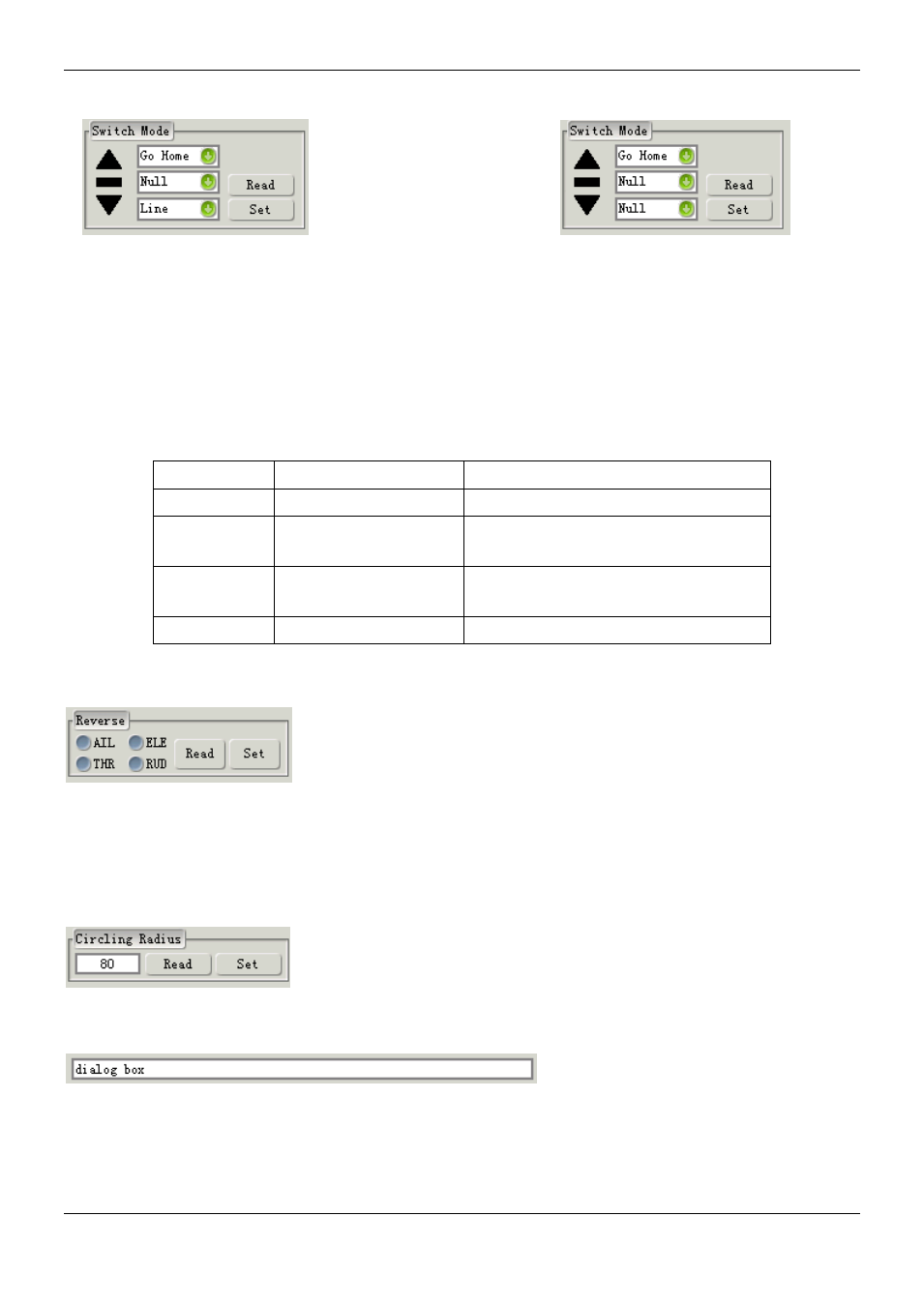

“Switch Mode”SW2 function settings window:
Usually, we need a 3- position switch (named as ―SW2‖) to switch the navigation mode, you can set
different functions by software in sw2.
Note: SW2 is priority than SW1, only when SW2 is in "Null" mode, then SW1 can work. so, we have to set a
NULL, otherwise SW1 doesn‘t work. We recommend SW2 middle position is set to Null, both sides can be set
the navigation mode which you like.
SW2 is a 2-position switch.
We recommend to set it as the right picture of above, the ―middle‖ and the ―down‖ position is set to null, the
―up‖ position is used to select the navigation mode you like.
navigation mode:
Name Function Remark
Null Deactivated Mode SW2 set to NULL, flying mode is in sw1
Go Home
Auto Return To Launch
Mode
Automatically return to launch point.
Line
Fixed altitude and
Heading lock flight Mode
After release the operating stick, it will lock
heading and altitude.
Circle Auto Circling Mode Automatically around a fixed point flying.
“Reverse”-Automatic control servo surface reverse window:
It is for modify the control direction. Control direction‘s check and adjust please see point 14.
“Circling Radius”settings window:
It is for adjusting the circling radius on Auto Circling Mode. Units is meters, the default setting is 80 meters.
State prompted dialog box, used for indicating send or receive instruction state, etc
