Page 7
a) DOS requires a minimum of 6-channel RC receiver.
b) 4 Receiver channels are used for aileron (channel 1), elevator (channel 2)
，throttle (channel 3) and rudder
(channel 4) signal output. Connect these 4 receiver output signals to the DOS with the supplied wires (pay
attention to the color of each channel ).
c) 2 free Receiver channels are required to control the DOS Flight Modes (a 3-position switch or dial
knob, ‖SW1‖) and Autopilot Mode (a 3-position switch or dial knob, ‖SW2‖).

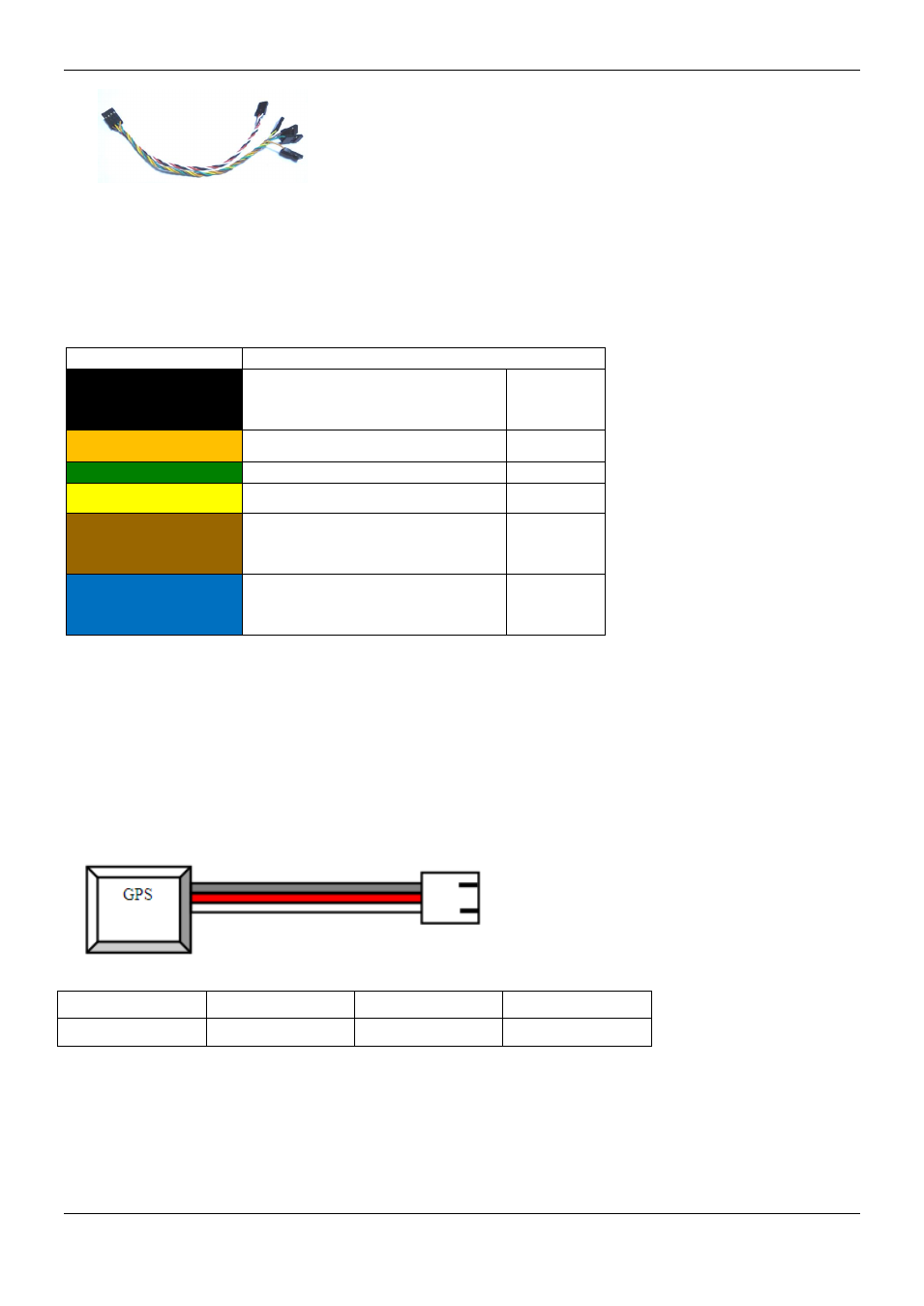

Wire color Receive channel
White
(bundled with red &
black)
Aileron Channel 1
Orange Elevator Channel 2
Green Throttle Channel 3
Yellow Rudder Channel 4
Brown
SW 1
Any free channel controlled by
A 3-way switch or dial knob
Channel 5
Blue
SW 2
Any free channel controlled by
A 3-way switch or dial knob
Channel 6
8. GPS interface and Features
a. Install the GPS Module with the antenna face up (see following picture). DO NOT install next to metal or
carbon fiber and other shielding material, which may block satellite signal.
b. Install the GPS Module away from electromagnetic sources such as ESC‘s, power wires, servo wires
and video transmitters.
Color Black Red White
Function GND 3V GPS Date
