The DOS can be installed in the following aircraft
1), Normal / Traditional fixed-wing planes;
2), Delta-winged plane with rudder;
3), Delta-winged plane without rudder;
4), Plane without aileron;
5), V-tail plane with aileron;
6), V-tail plane without aileron;
7), Any other configuration, please e-mail us for enquiry:
The DOS has been tested to work with the following RC systems
●Robbe-Futaba PPM / PCM 1024 / PCM G3 mode, 2.4 GHz systems
；
●Graupner/JR PPM 8, PPM 12, SPCM mode
；
●MPX PPM8, PPM 12 with UNI mode
●Any remote control system using the standard of 1.5 ms neutral value.

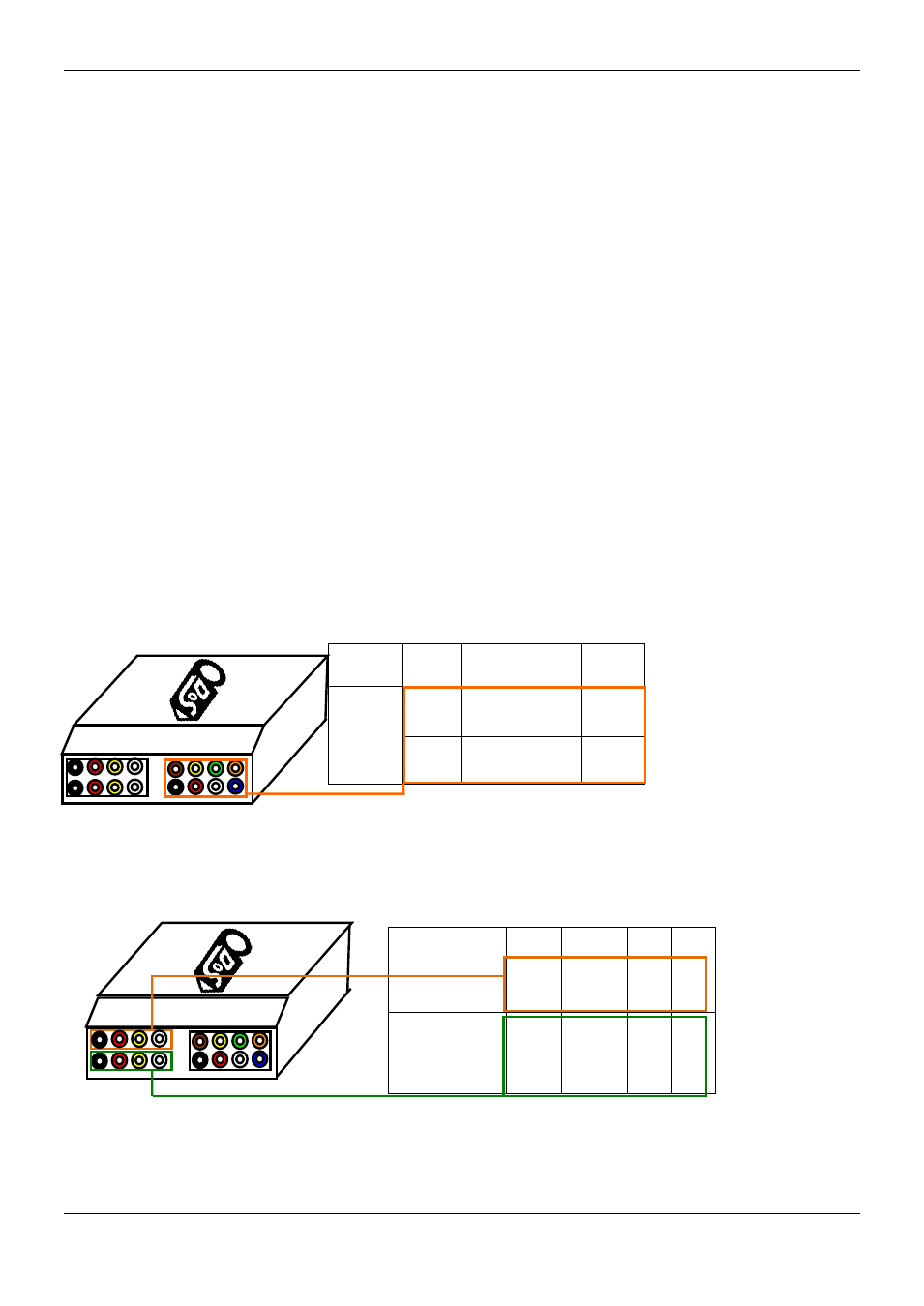

5. DOS interface
Remote receiver input interface
GPS and UART interface
No.
1
2
3
4
RC
receiver
interface
SW1
RUD
Servo
THR
Servo
ELE
Servo
GND
Power
+5V
AIL
Servo
SW2
No.
1
2
3
4
GPS interface
GND
Power
+3V
TX0
RX0
Data radio
interface/para
meter setting
interface
GND
Power
+5V
TX1
RX1
