17. Connection between DOS and Hornet-OSD
Hornet-OSD can be used to connect to the DOS ‗s UART interface, or after upgrade Hornet-OSD to
version V1.6, with a Y-type data cable ,you can connect Hornet-OSD and the GPS module to the DOS
‘s GPS

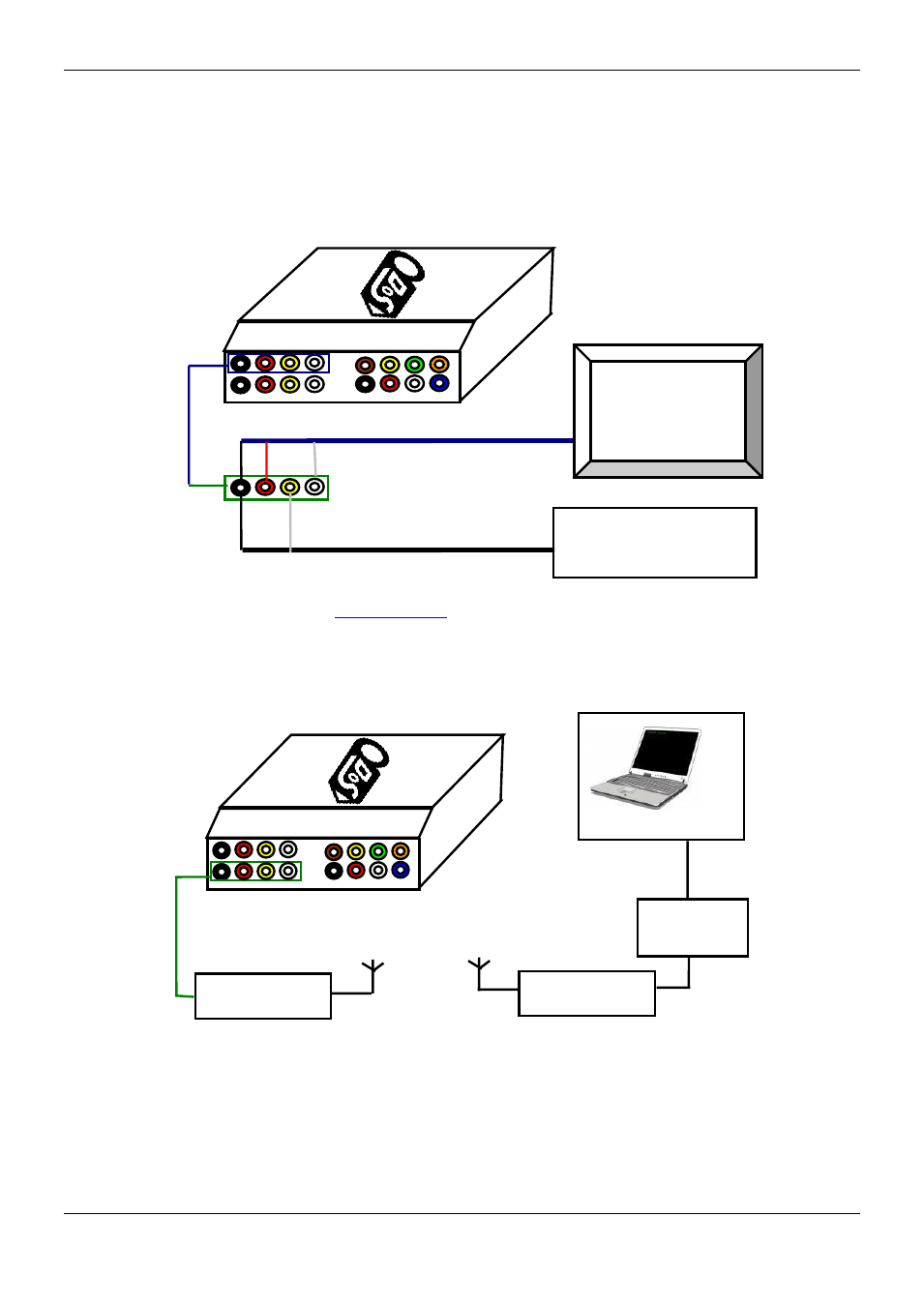

port to obtain high data refresh rate, make OSD data display more real-time. The connection diagram is as
follows. Under the version of V1.6 , OSD only can be connected to the DOS
‗s UART interface.
Note: More information please login: www.feiyudz.cn
18. Data Radio and GCS software
Data radio baud rate: 19200
DOS can set parameters, and monitoring of flight data by data radio. GCS software can (www.feiyudz.cn)
monitor the flight altitude, speed, path data. Can use the Remote Adapter (for details please see the relevant
instructions for use of the Remote Adapter), through Data Radio to remote control aircraft.
Data Radio Data Radio
USB-TTL
Cable
Hornet OSD module
(V1.6）
GPS
module
OSD Data cable
