- 15 -

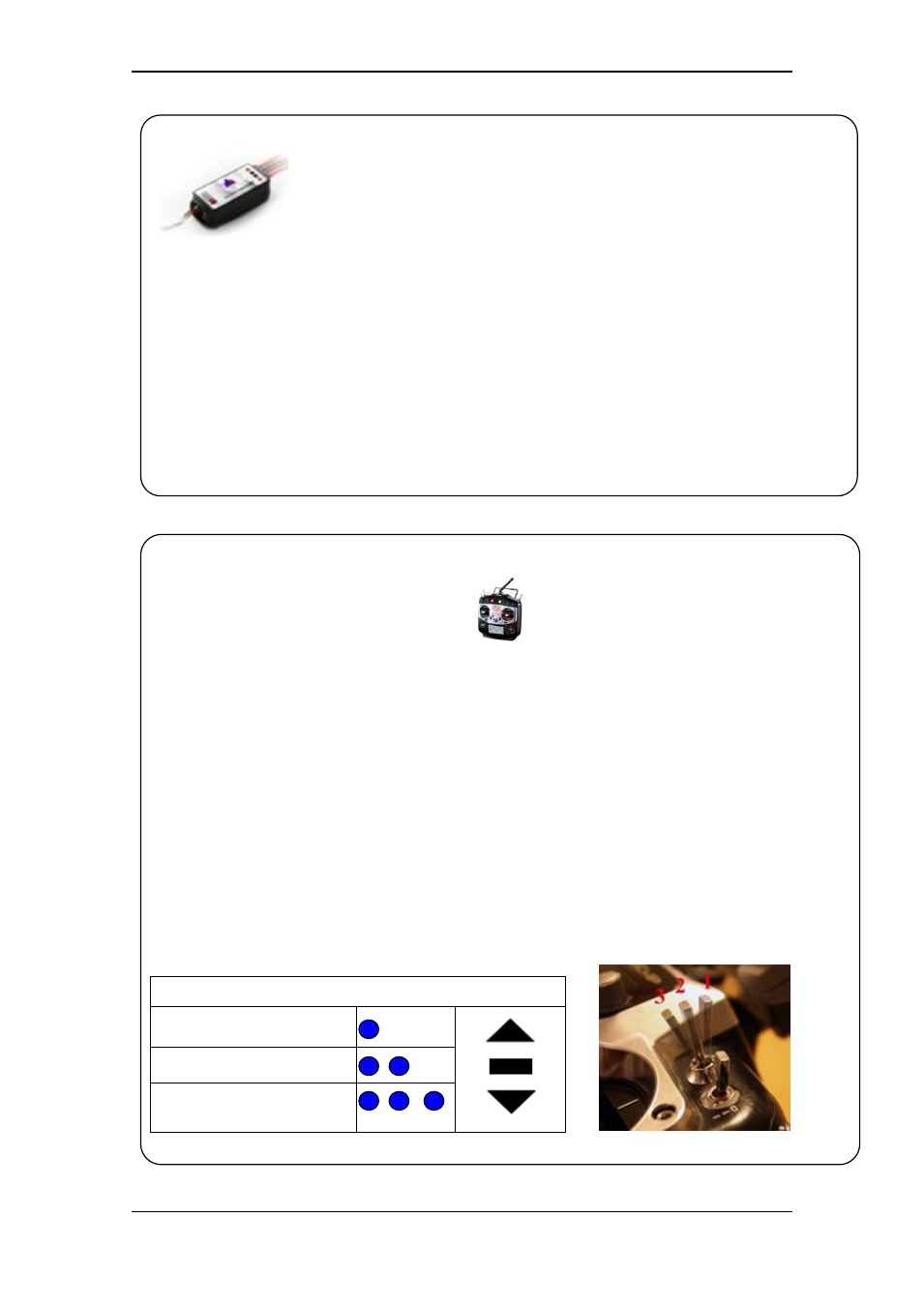

Power manager module install
 Power manager module supports 2S～6S lithium battery input; the integrated current
sensor can measure APM draw and voltage; DC-DC module offers 5V to FY-41AP
meanwhile 12V to the video camera and video transmitter. But servo power is supplied
by ESC or S1~S8 through any port access.
 Only one BEC power source should be used. If all the ESCs have internal BEC, only
choose one to supply power. Disconnect the red wire (positive) of the other ESCs, but
reserve the GND and Signal wirings.
Remote control setting: SW1&SW2
1.FY-41AP needs a remote control and receiver with at least 5 channels, including 4 normal
channels for AIL,ELE,THR,RUD, and SW1 to control flying mode.
2.You need to choose normal fixed wing plane mode while canceling all mix control
modes, meanwhile setting CH5 to a three-switch.
3.FY-41AP needs a three-switch to control flying mode:SW1 for Attitude Stabilized Mode ,
Hovering Mode , Auto Return To Launch Mode(RTH) .
4.After setting the Switch, you can double check by monitoring the indicator light on the
module against selected flying mode. For details see the indicator light manual
5.SW1 default set：
SW1
Attitude Stabilized Mode
Hovering Mode
Auto Return To Launch
Mode(RTH)
