Setting Up Copper Tests
Copper and VDSL2/ADSL2+ Multi-play Test Set 59
Cable Book
To view and modify the cable details:
1. Press the up/down arrow keys to highlight the desired parameter.
2. Press the left/right arrow keys to view and select the options.
OR
3. Press on a value to open a list box of options or the alphanumeric
editor screen and use the navigation keys to scroll through.
4. Press to confirm the value.
5. Press the Accept function key to update the cable details with your
changes.

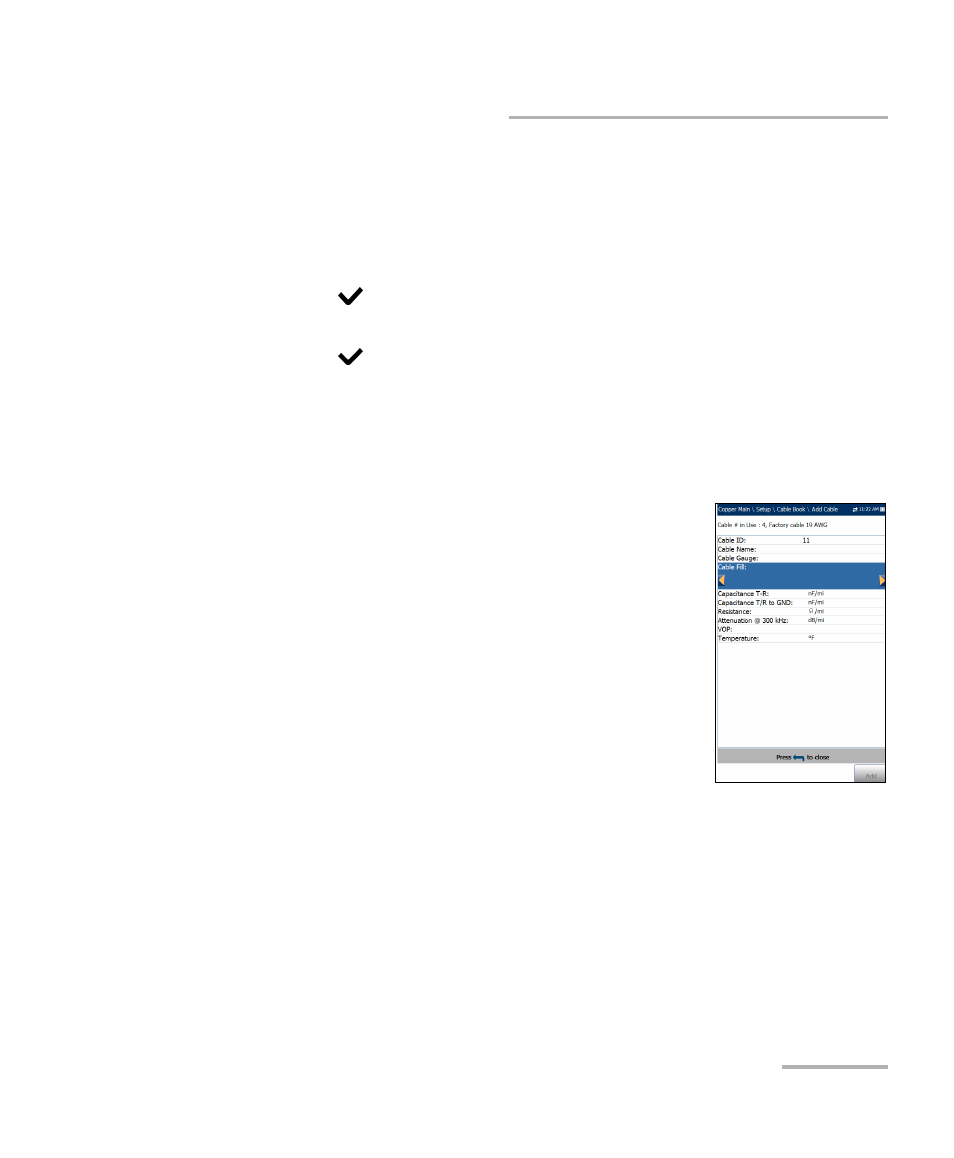

Add Cable
The Add Cable page allows you to add a new cable
entry into the Cable Book using the following
parameters for the currently highlighted Cable ID.

Cable ID displays the cable ID number. This
parameter that cannot be modified.

Cable Name is the name of the cable in the Cable
Book.

Cable Gauge is the gauge system for measuring
wire sizes in AWG (American Wire Gauge) units
or mm (metric wire size).

Cable Fill allows you to select the type of material the cable can be
filled with: Aircore, Jelly, Pulp 5, PR, or 2 PR.

Capacitance T-R/A-B allows you to specify a value for the capacitance
per length constant.

Capacitance T/R to GND/A/B to E allows you to specify a value for the
capacitance per length to ground constant.

Resistance allows you specify a value for the resistance constant of the
cable.
