Tdr result cable setup – EXFO MaxTester 635 User Manual
Page 247
Copper Auto Tests
Copper and VDSL2/ADSL2+ Multi-play Test Set
239
User Auto Test
TDR Result Cable Setup

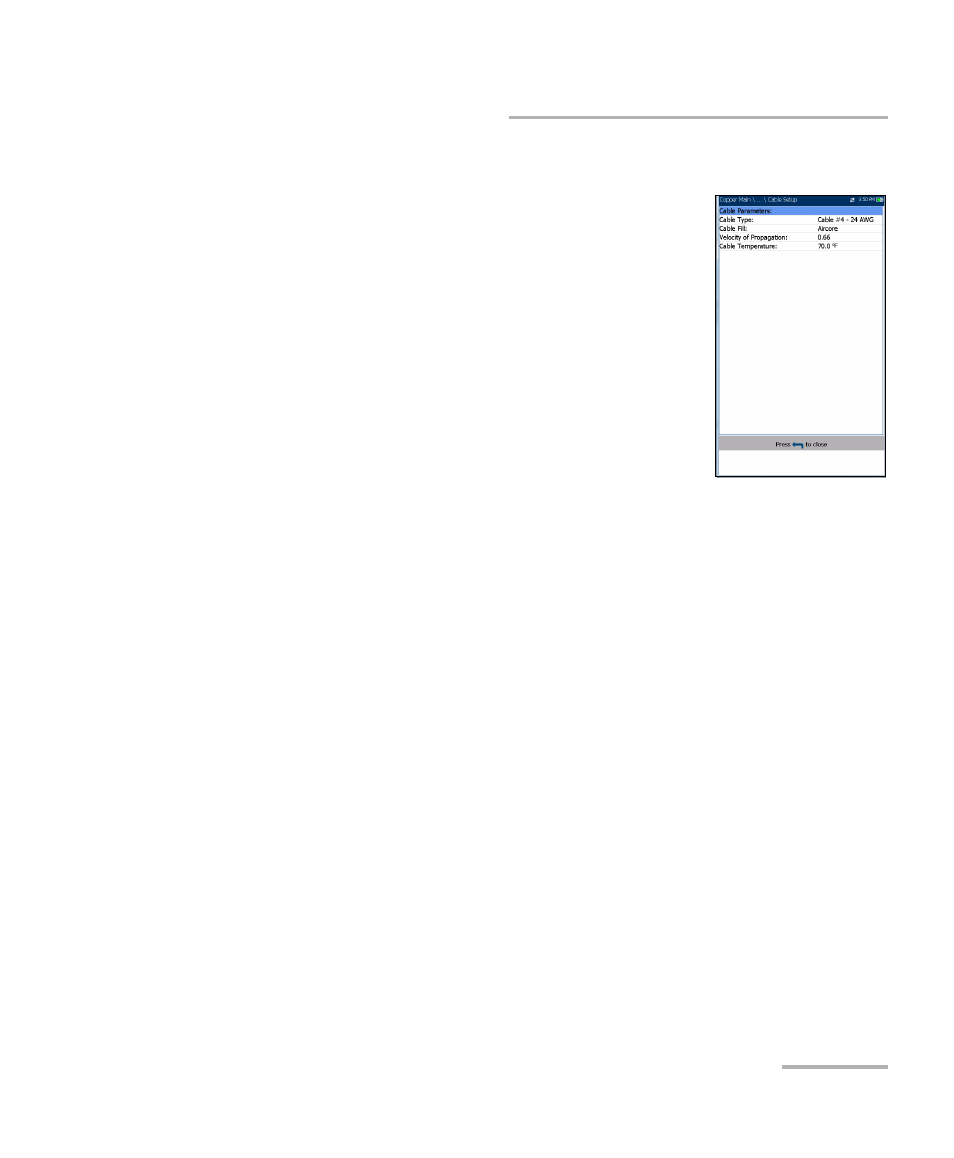

The Cable Setup page allows you to configure and
view the Cable Parameters set for the TDR test.
Cable Type is the cable entry (with its associated
parameters) from the current Cable Book, used
for testing.
Cable Fill displays the type of material the cable is
filled with: Aircore, Jelly, Pulp, 5 PR, or 2 PR.
Setup in the Cable Book.
Velocity of Propagation is the velocity of
propagation for the cable as a ratio of the speed of
light.
Cable Temperature is the temperature of the cable under test in either
degree C or F.
