Introducing the LFD-200 Live Fiber Detector 1
1 Introducing the LFD-200
Live Fiber Detector
Main Features
The LFD-200 Live Fiber Detector detects traffic and measures optical signals
transmitted through singlemode and multimode fibers without having to disconnect
them.
The Live Fiber Detector uses a safe macrobending technique that does not disrupt
traffic (that is, it eliminates the need to identify a fiber by opening it at the splice
point). At the same time, it avoids damaging or overstressing the fiber. You end up
with accurate and reliable information.
The Live Fiber Detector comes with interchangeable adapter heads stored right into
the unit. It also features a slider that can be locked for hands-free operation.

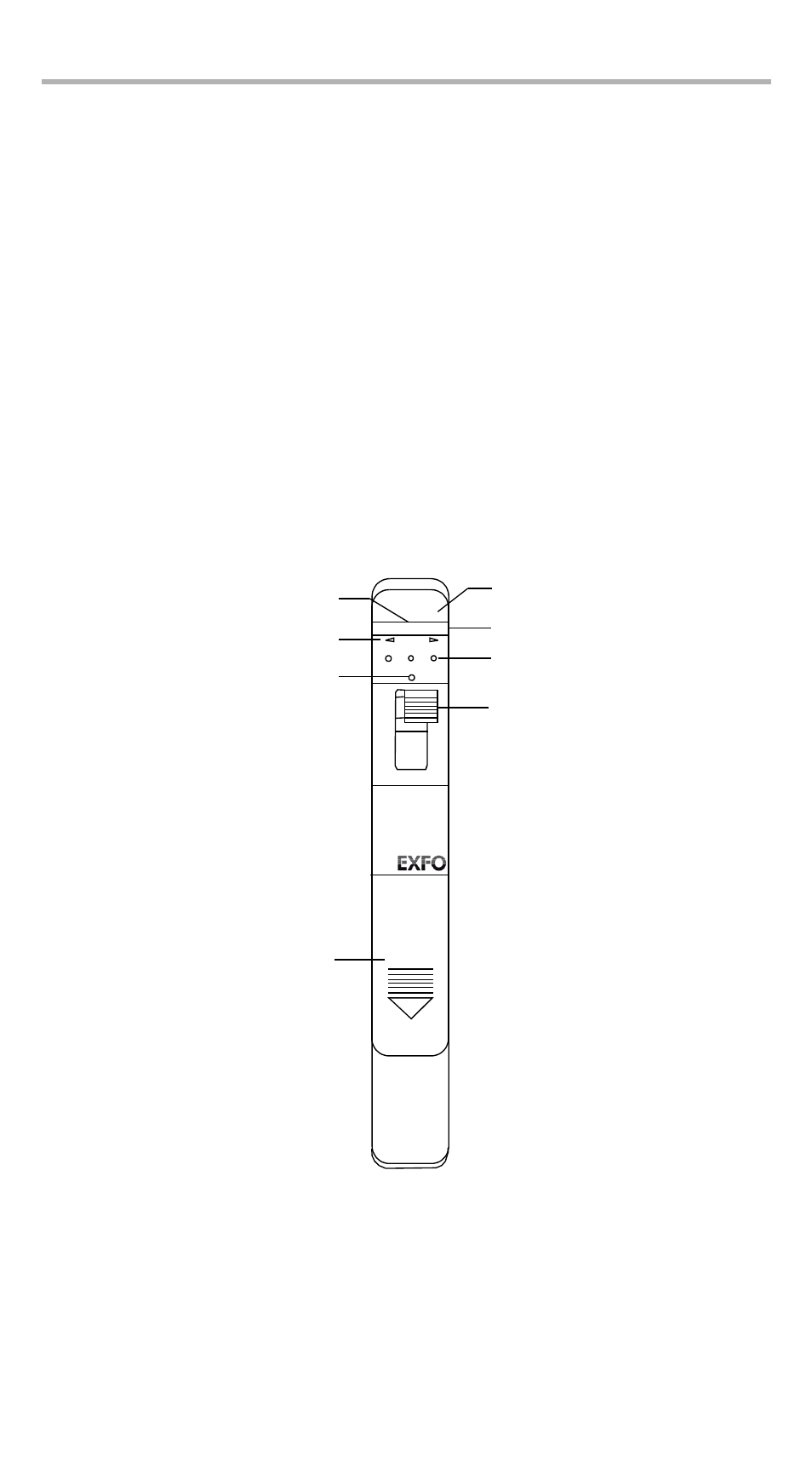

Adapter head
Traffic LED indicators
Tone LED indicators
Slider
Battery compartment
LFD-201 and LFD-203 models
Low battery indicator
Detector port
(inside the unit)
270 1k 2k
Live Fiber Detector
LFD-200
LOW BAT
RIB-CBL
TRAFFIC
Ambient light reduction
design (203 model only)
