Adjusting Compartment and Battery Doors
With time and handling, the adapter head compartment door, as well as the battery
door may require adjustment to ensure the proper operation of your Live Fiber
Detector.
To adjust the door(s):
1. Open the door you want to adjust by pressing on it and sliding it away from the
Live Fiber Detector.

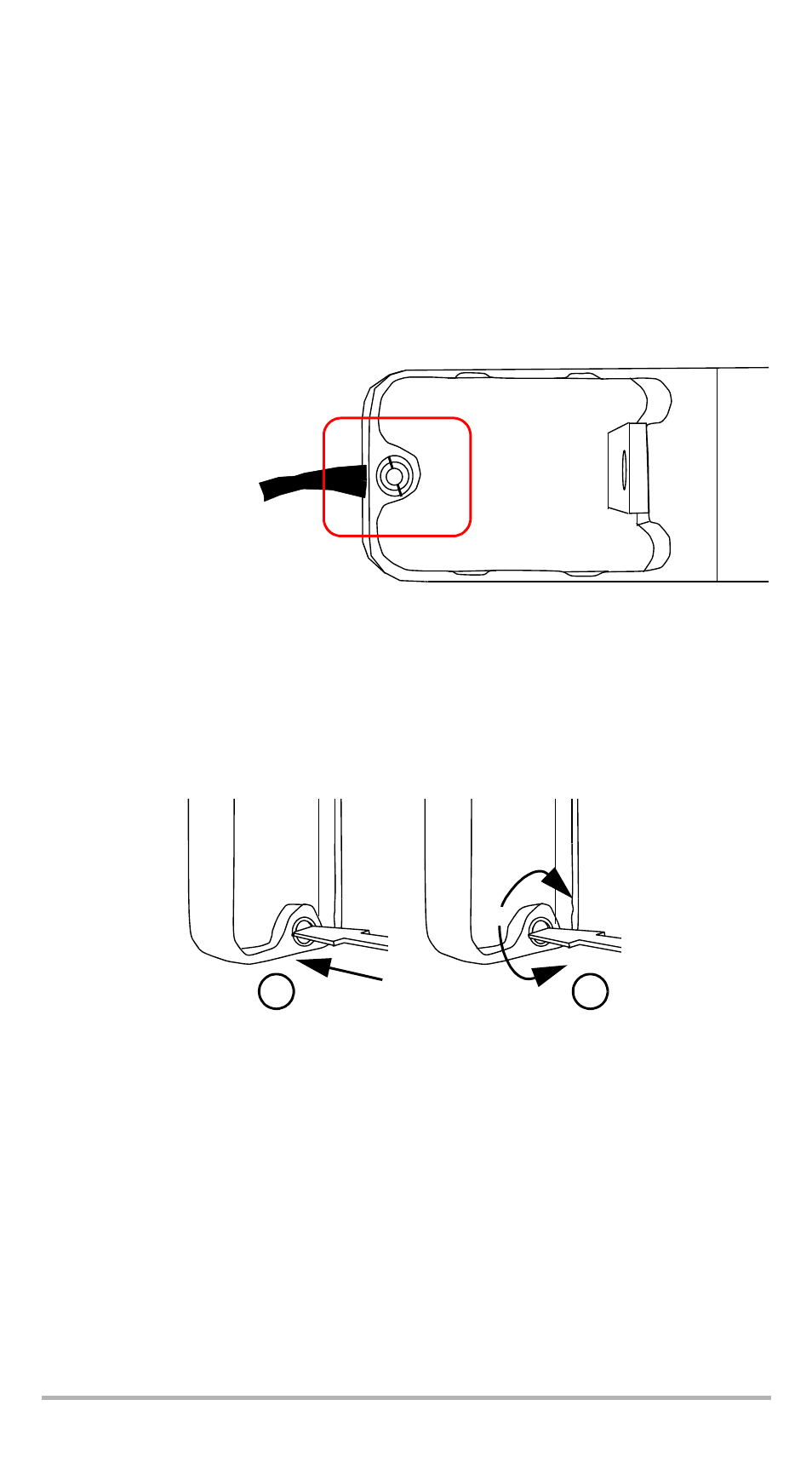

2. Locate the adjustment screw.
3. With a flat-head screwdriver, press down on the small silver ball until the head
of the screwdriver fits into the small grooves on each side of the screw.
Note: You must press down on the silver ball to be able to turn the screw.
4. Turn the screw clockwise or counterclockwise, on whether you want to slacken
or tighten the screw.
5. Close the door.
Recycling and Disposal (Applies to European
Union Only)
For complete recycling/disposal information as per European Directive WEEE
2002/96/EC, visit the EXFO Web site at
www.exfo.com/recycle .
