EXFO FTB-1 User Manual
Page 30
Getting Started with Your Unit
20
FTB-1
Inserting and Removing Test Modules
4. Using a flat screwdriver, turn the screws (4) clockwise until they are
tightened.
This will secure the module into its “seated” position.
When you turn on the unit, the startup sequence will automatically detect
the module.

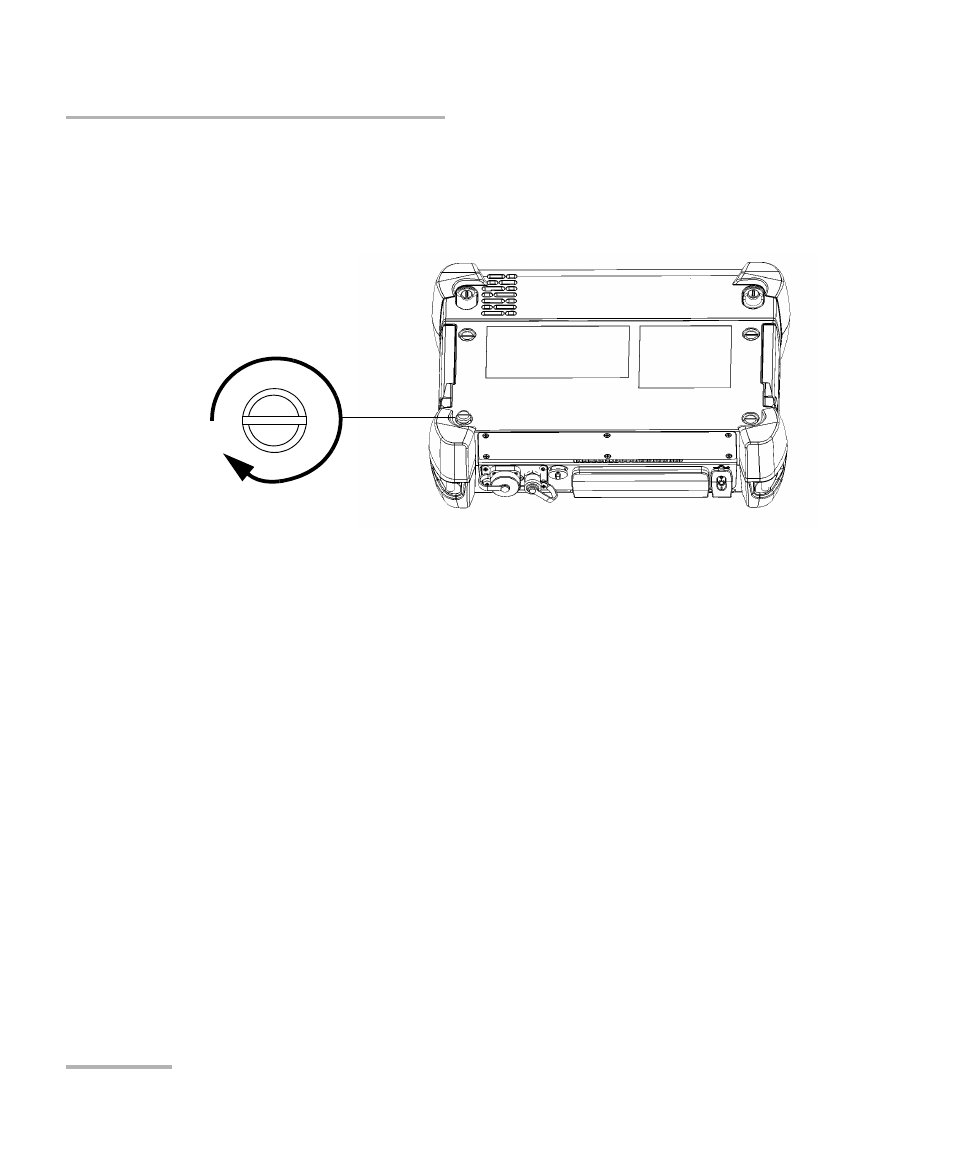

Turn screws
clockwise
Back panel
