ARU-100 4
2 HPNA Tests
Using the HPNA Test Probe combined with your AXS-6xx module allows you to test
for triple-play services such as IPTV, voice, and Internet data by leveraging existing
coax cable in the home network environment. The HPNA tests provide performance
measurements and information to determine the physical parameters of the home
networking environment.
To test for HPNA and triple-play performances:
Connect the ARU-100 HPNA port to home coax cable and the Ethernet RJ45 to your
AXS-200/6xx series unit.
Note: EXFO recommends using the ARU-100 without the AC adapter plugged
in when performing HPNA testing. Only use the AC adapter when
recharging the battery.
Configure Tests
The purpose of the Configure Tests function is to modify the unit to include the test
parameters to perform the HPNA test. The function has three pages: Select Profile,
Performance, and Thresholds, and are accessible through the different pane tabs.
To access the configure tests during HPNA tests:
1. From the HPNA Tests pane, use the up/down arrows to select the Configure
Tests entry.
2. Press to confirm the selection.
To view the available tabs:
Press the F1, F2, and F3 keys.
Select Profile

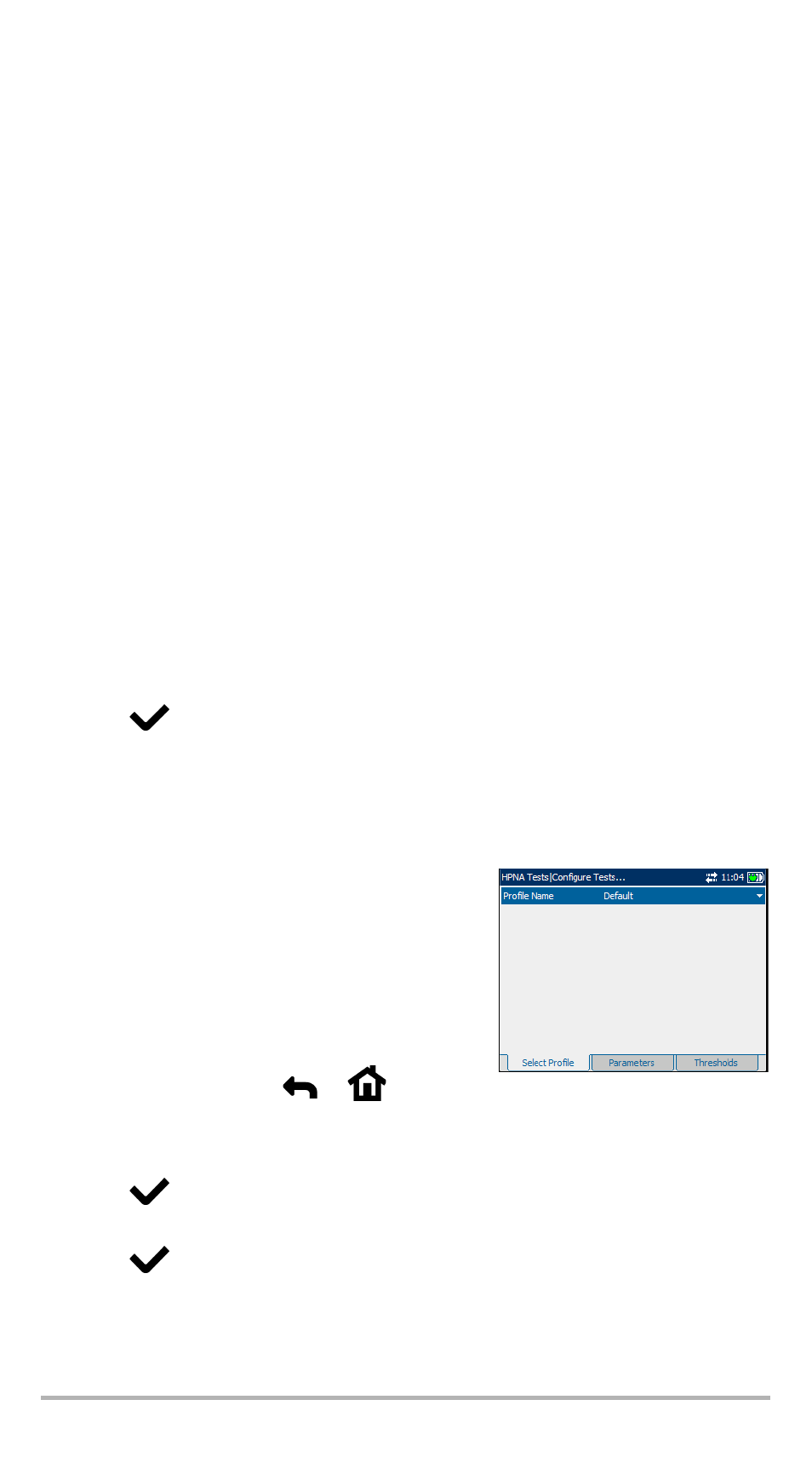

The Select Profile tab allows you to select multiple
profiles containing specific test configurations
stored in the unit.
Profile Name is a list of all available profile files in
the current directory with the first entry being
Default which uses the default structures values. At
power up, all settings are read from the last current
profile.
Before you press either the
or keys and the selection is not Default, save
the modifications (if any) to the current profile file and proceed with the selected
action.
To select a profile name:
1. Press
to open the list.
2. In the list, press the up/down arrows to select the value.
3. Press
to confirm the selection.
