Page 7

MX42A C

ONTROL

ENMET Corporation

3.0 Installation and Connection

3.1 Installation

3.1.1 Placement of Control

The

MX 42A C

ONTROL

can be installed in any place with an unclassified atmosphere. It should be put in a well

ventilated place where it can be watched, such as a guard house, control room or security service area.

To mount the Control see F

IGURE

2 mounting demotions:

4 mounting holes, with centers of 12.40 x 9.65 inches, use #10 or 5 mm screws.

AUTION

There must be 12 inches of clearance above the

MX 42A C

ONTROL

so the cover can be opened for

maintenance.

3.1.2 Placement of Sensor/Transmitters

Their location depends on three main factors:

♦

Density of gas to be detected:

high for gases lighter than air and low for gases heavier than air

♦

Leak point:

determination of the probable source of a leak

♦

In the flow of air in ventilated rooms.

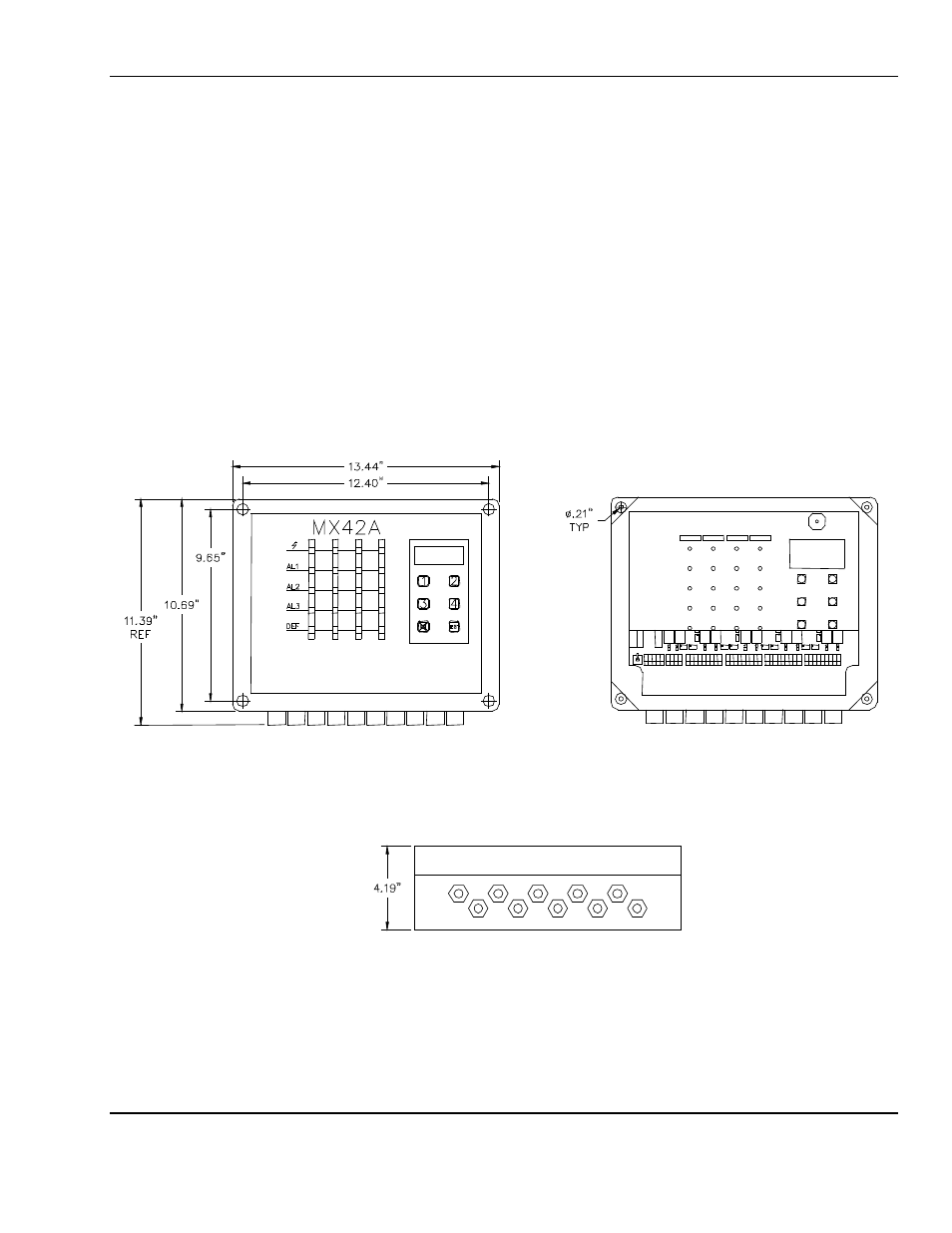

Figure 2: Mounting MX42A C

ONTROL

Front View

Front View with Lid Open

Bottom View
