MX32 E NGUARD ENMET Corporation
5
3.0 Installation 3.0 Installation 3.0 Installation 3.0 Installation
The MX32 C ONTROL can be installed in any indoor area that is not classified a hazardous atmosphere. It should
preferably be placed in a ventilated and monitored location, such as guardhouse, control room, instrumentation room,
etc.
N OTE : To be able to fully open the hinged front cover of the MX32 C ONTROL , allow space for opening the viewing
cover.
3.1 Mounting MX32 Control

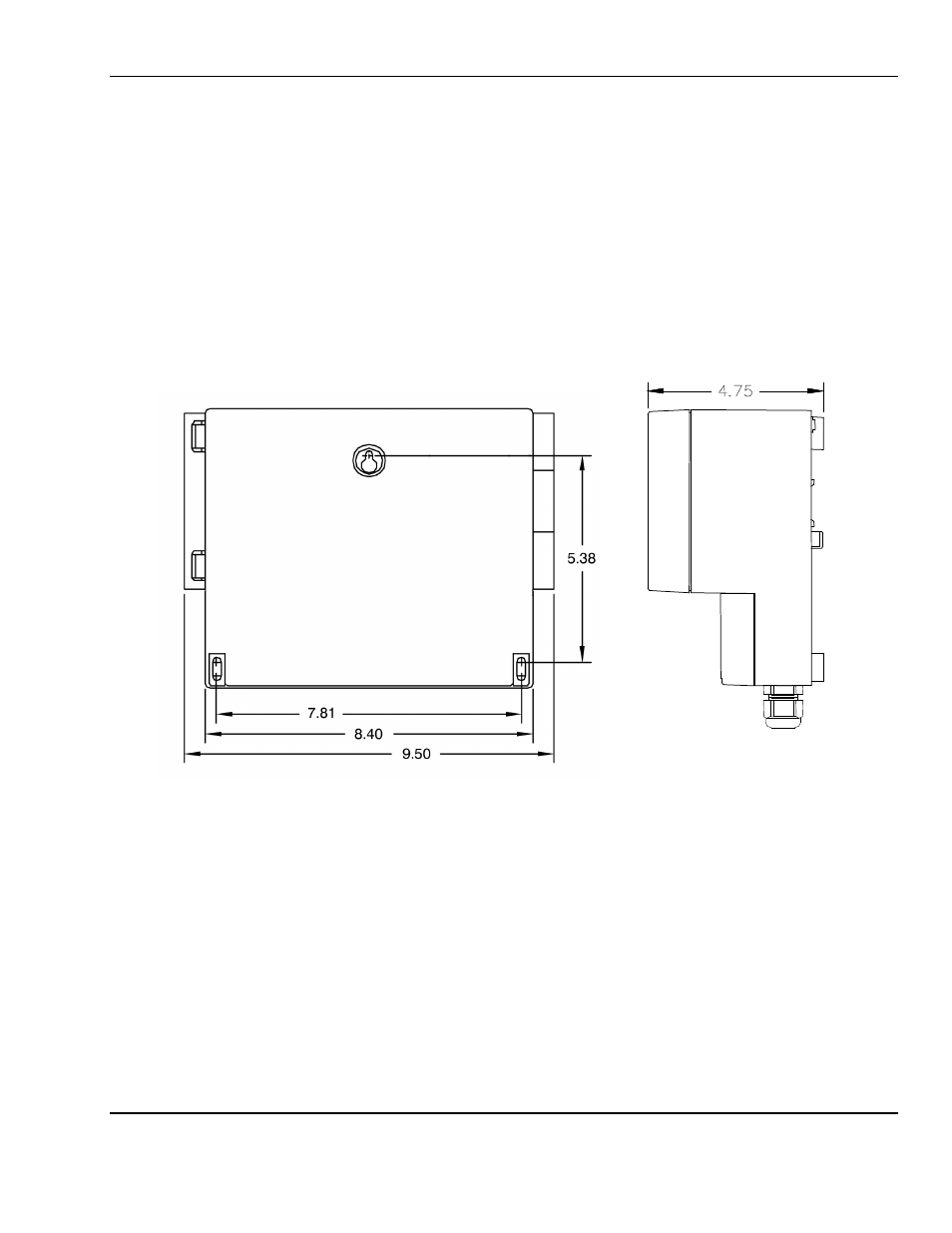

The MX32 C ONTROL is mounted to the wall with 3 screws. Demotions are given in inches in Figure 4. Demotions
are also marked on the rear of the enclosure in mm.
Rear View Side View
Figure 4: Mounting MX32
