ENMET Corporation MX32 E NGUARD
2
2.0 Features 2.0 Features 2.0 Features 2.0 Features
2.1 MX32 Control elements
The MX32 C ONTROL unit is made up of the following elements:
Enclosure rated IP 65, NEMA-12, 12K.
Hinged smoke gray viewing cover.
Main power and channel board, that has terminals for power, sensors and relays. Located under access cover.
Display board, attached to front panel.
Front panel with display, alarm LEDs, buzzer (horn) and pushbutton switches.

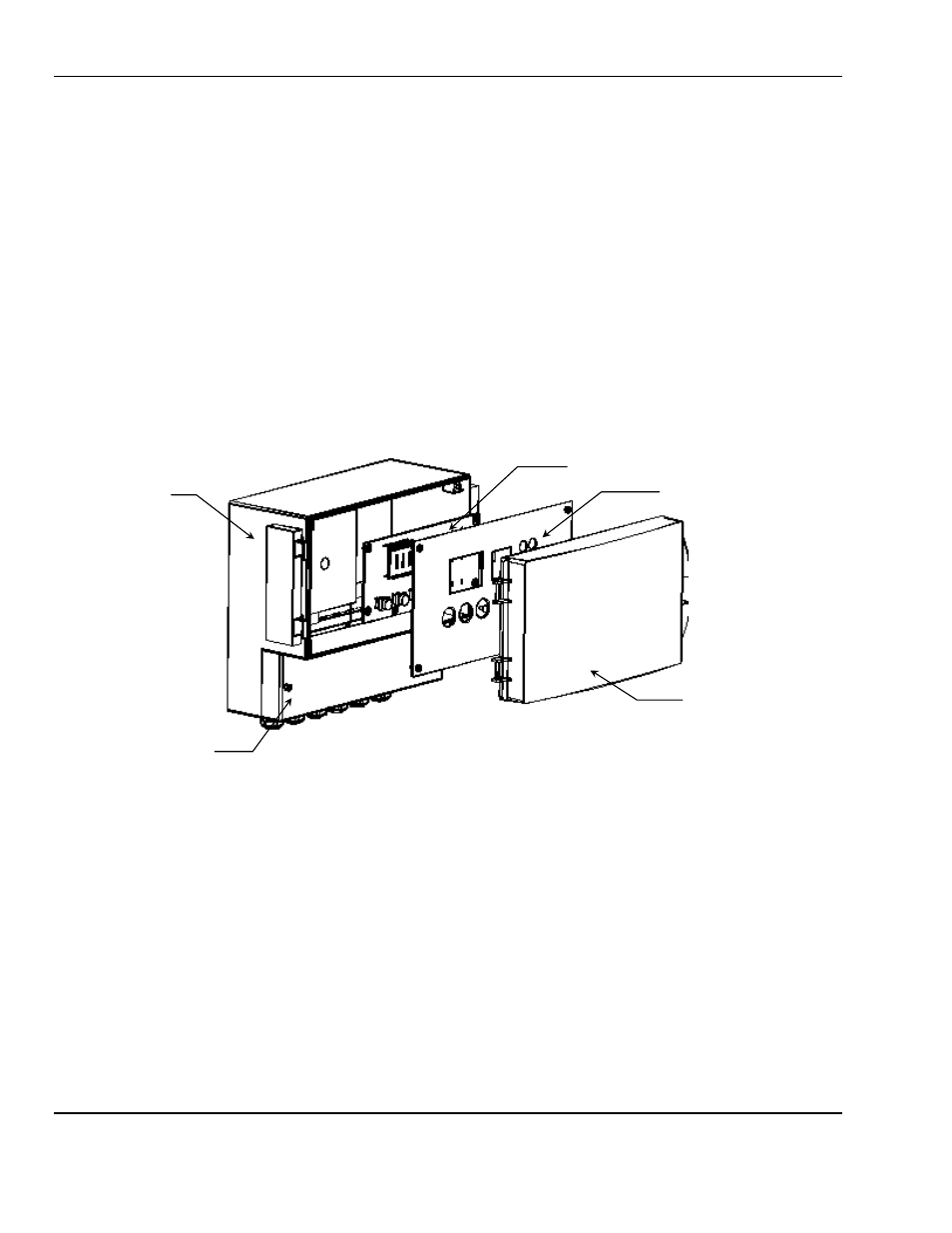

Figure 1: MX32 Features
Access Cover
Power, Sensor
and Relay
Terminal
Front Panel
Smoke Grey
Viewing Cover
Hinged on the
left side
Display Board
Enclosure
