-34-
Materials List
2 2-Snap Wires
1 4-Snap Wire
1 5-Snap Wire
1 6-Snap Wire
1 Battery Holder (B1)
1 LED (D1)
1 NPN Transistor (Q2)
1 100K Ohm Resistor (R5)
1 Motor (M1) and Fan Blade
1 Slide Switch (S1)
1 Press Switch (S2)

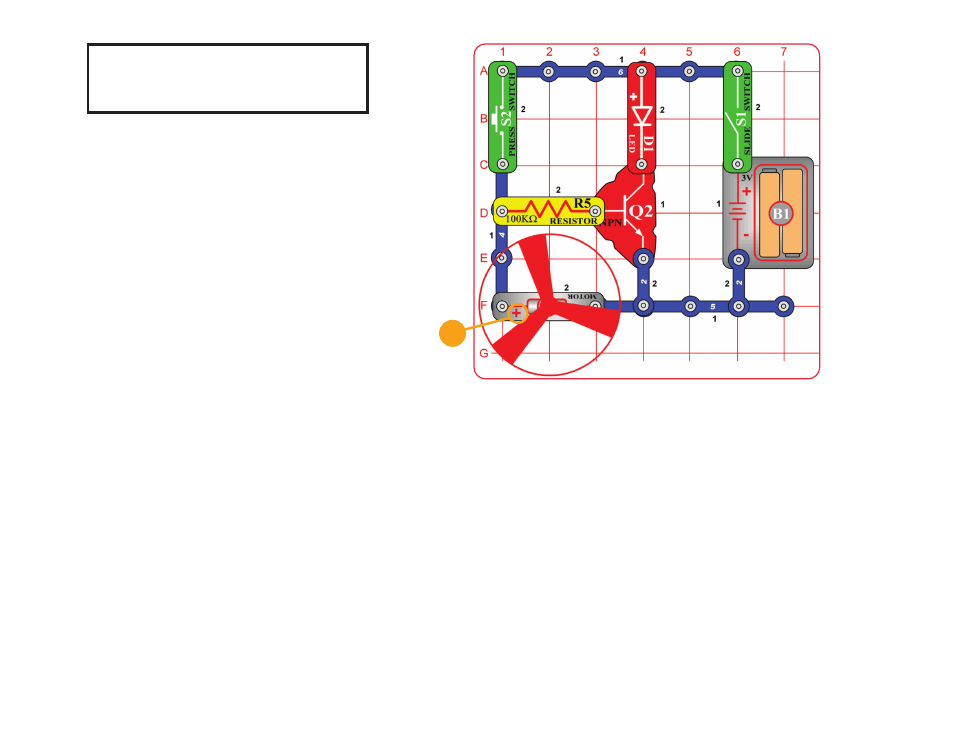

Build the circuit as shown.
Turn the S1 slide switch on.
Is the LED on?__________ Is the motor running? _________
Push the S2 Press Switch.
Is the LED on?__________ Is the motor running? _________
Remove the motor and repeat the experiment. Does the LED act differently? Explain _________________________________
______________________________________________________________________________________________________
Activity 27
Motor Running LED
+
