Page 31: Not this and that
-30-
Materials List
1 2-Snap Wires
1 4-Snap Wire
1 5-Snap Wire
1 Battery Holder (B1)
1 LED (D1)
1 100 Ohm Resistor (R1)
1 Slide Switch (S1)
1 Press Switch (S2)
Which combination makes the LED go on? _______________________________________
This is called a NOR circuit, which is short for NOT this OR that. Like the OR and AND, it is an important building block in
computers.Compare the TRUTH TABLES for the OR and the NOR. What do you notice about the D1 Column?
_____________________________

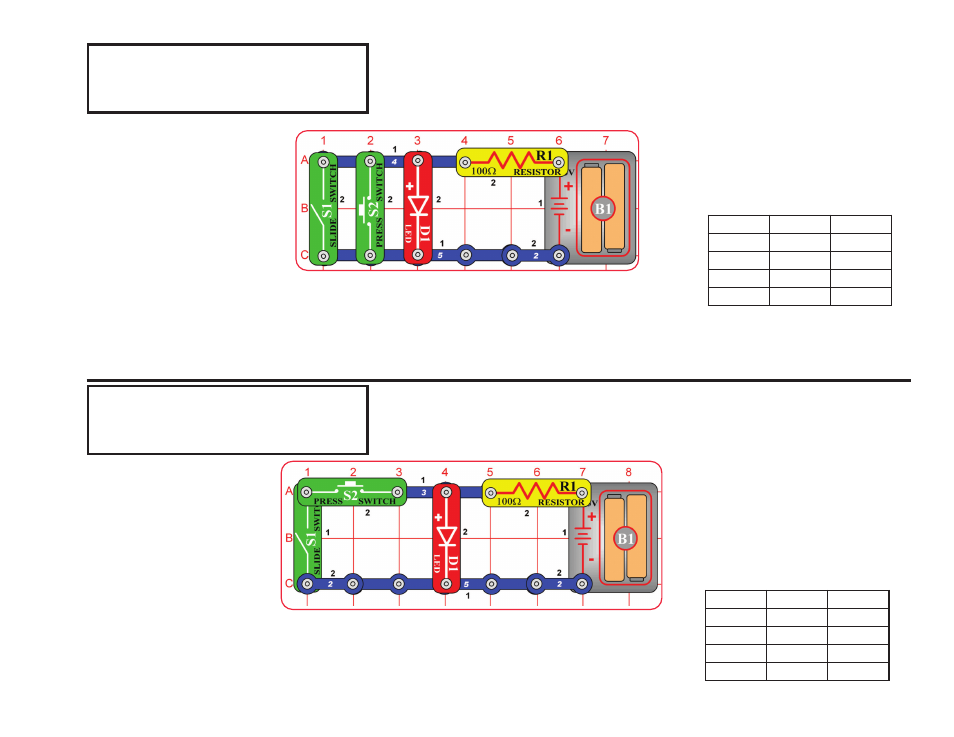

Build the circuit as shown.
Test the combinations of the slide switch
and press switch.
Fill in,
TRUTH TABLE
Materials List
2 2-Snap Wires
1 3-Snap Wire
1 5-Snap Wire
1 Battery Holder (B1)
1 LED (D1)
1 100 Ohm Resistor (R1)
1 Slide Switch (S1)
1 Press Switch (S2)
Compare your observations with the AND circuit in activity 22. _______________________
__________________________________________________________________________
NAND stands for NOT this AND that. This is another important building block in computers.
Build the circuit as shown.
Test the combinations of the slide
switch and press switch.
Fill in,
TRUTH TABLE
S1
S2
D1
OFF
OFF
ON
OFF
OFF
ON
ON
ON
S1
S2
D1
OFF
OFF
ON
OFF
OFF
ON
ON
ON
Activity 22
Neither This NOR That
Activity 23
NOT This AND That
