Materials List
2 3-Snap Wires
1 Battery Holder (B1)
1 Lamp (L1)
1 Motor (M1) and Fan Blade
1 Slide Switch (S1)
1 Press Switch (S2)
What is the path of the current through this circuit when only the slide switch is closed? ______________________________
______________________________________________________________________________________________________
What happens when you close the press switch? _____________________________________________________________
______________________________________________________________________________________________________
Is this a series or parallel circuit? __________________________________________________________________________
What is the purpose of the lamp in this circuit? _______________________________________________________________
______________________________________________________________________________________________________
If you have a multiple speed fan at home, how can you increase or decrease the speed? _____________________________
______________________________________________________________________________________________________

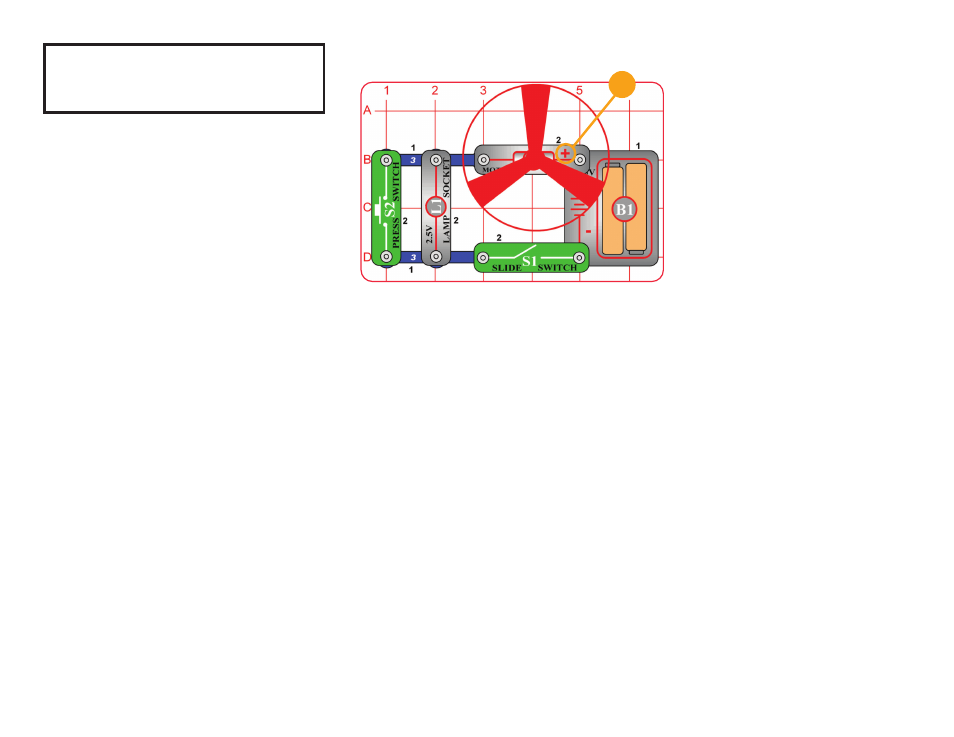

Build the circuit shown
on the left.
-21-
Activity 12
Two-Speed Fan
+
