TK Series Guidance System Operator’s Manual
Specifications - 55

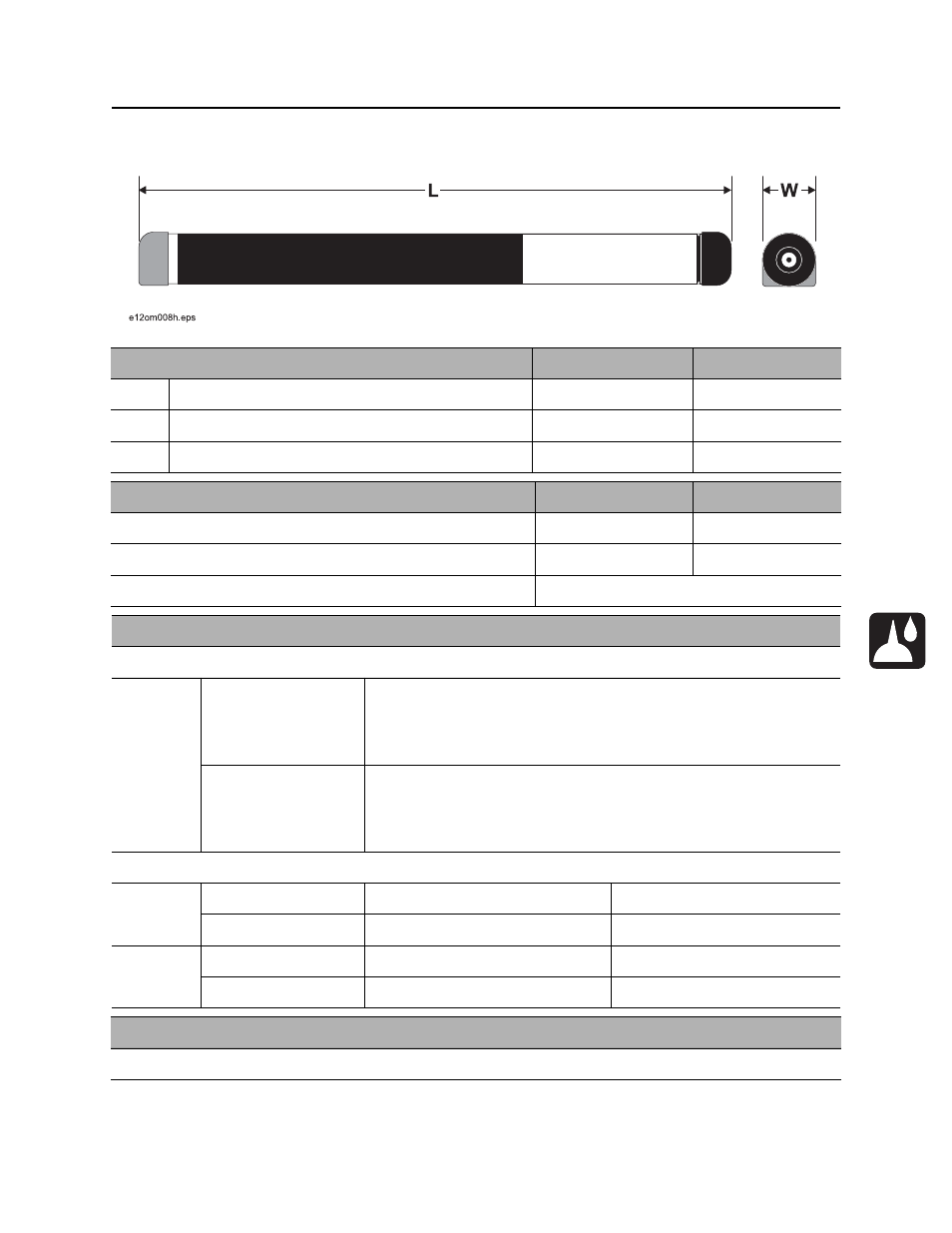

TX Series Beacons
CMW
TX Series Beacons
Dimensions U.S. Metric
L Length 17.8 in. max 452 mm max
W Width 1.5 in. max 38 mm max
Operating weight
Environmental U.S. Metric
Maximum operating temperature 176°F max 80°C max
Maximum fluid pressure 60 psi max 4 bar max
IP Rating IP67
Performance
Telemetry Data
Pitch
(TXQG or grade
beacons) 1% increments up to 100%
0.1% pitch resolution within 45% of level and 1% pitch resolution
Pitch communicated at a minimum rate of 1.5 seconds when a
high priority communication does not exist
Roll 24 positions (15°)
Roll accuracy will be at least 5°, communicated at a minimum of
2.7 rolls per second. Settle time is to be no more than 1 second.
Depth
TX with TK 40 ft 12.2 m
with TKD and TKQ 60 ft 18.3 m
TXH with TK 70 ft 21.3 m
with TKD and TKQ 110 ft 33.5 m
Battery
Battery Types: Ditch Witch Power Stick (p/n 222-1369); Lithium ‘CC’ battery
