TK Series Guidance System Operator’s Manual
Controls - 21
TK, TKD, TKQ
CMW

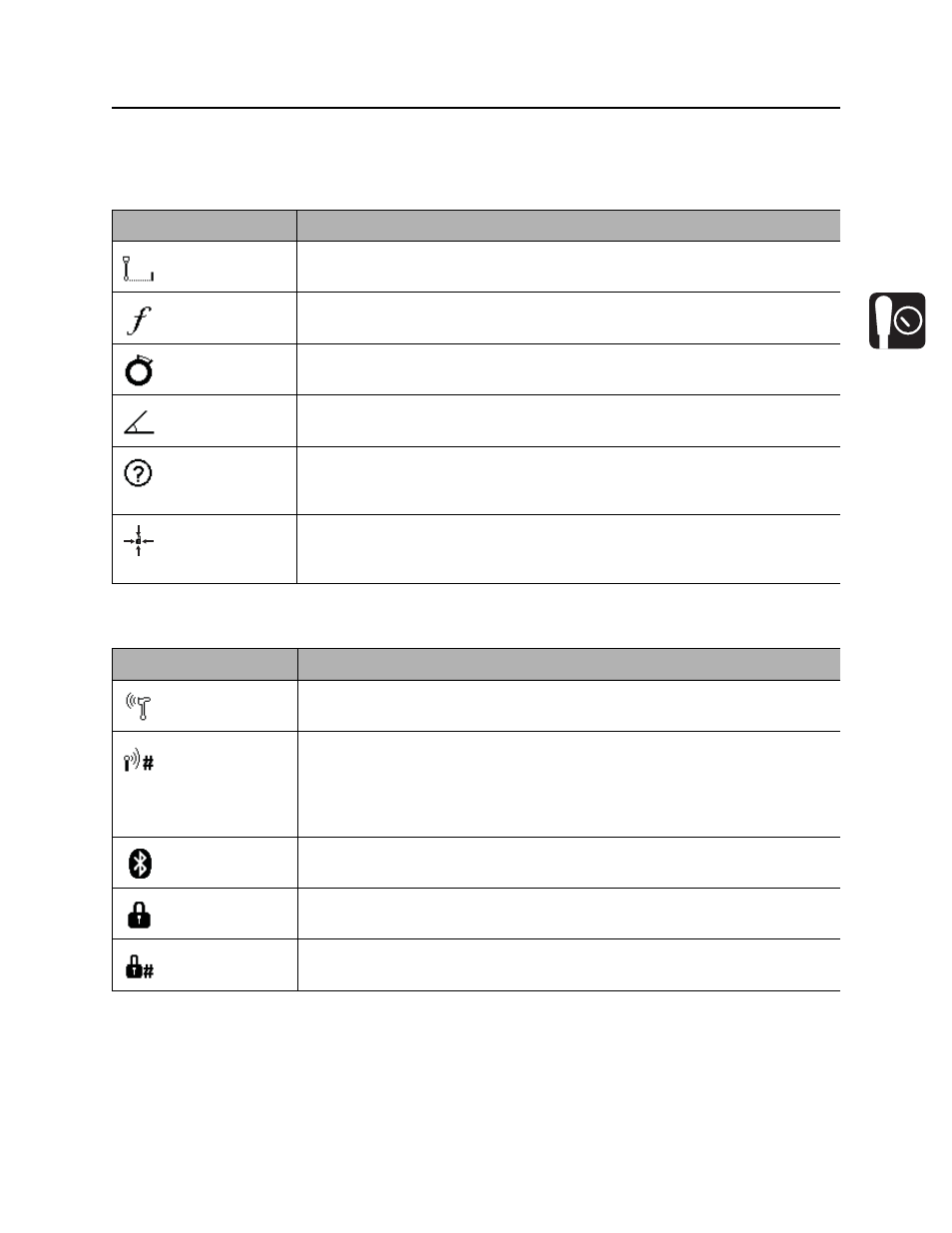

Menus
Beacon Menu
Wireless Menu
Description Notes
Calibrate Depth Sets built-in adjustment of tracker-to-beacon communication to provide
accurate depth measurements.
Frequency Sets tracker receiving frequency. Available settings: TX1.5K, TX12K, TX20K,
TX29K, 86B 12K, 86B 29K.
Calibrate Roll Sets roll position for beacon equivalent to bit pointing up (12 o’clock, 0
minutes, 0°).
Calibrate Pitch Sets 0.0% pitch position for grade beacon (1.0% limit).
Configuration Shows TX series beacon Bluetooth devices available for connection. After
connection, shows beacon data.
Sets the operating modes of configurable beacons.
Arrow Lock Adjusts the range at which the locate arrows lock onto the beacon signal.
Select the default setting for shallow bores, use Wide for deep bores, and
Widest for extreme cases.
Description Notes
Telemetry Selects or disables telemetry mode.
Available settings: off, Bluetooth, Long Range (TKD or TKQ only)
Channel Sets telemetry channel when using UHF Long Range radio for telemetry.
Available settings: 1 (default) through 15
Note: The number of available channels will vary based on region or
country configuration.
Bluetooth Scans for and manage Bluetooth device connections.
Tracker Control Enables or disables thrust and rotation of drilling unit.
Available settings: Disable Rig (default), Enable Rig.
Tracker Control
code Selects code for Tracker Control feature corresponding to code on TD
display.
