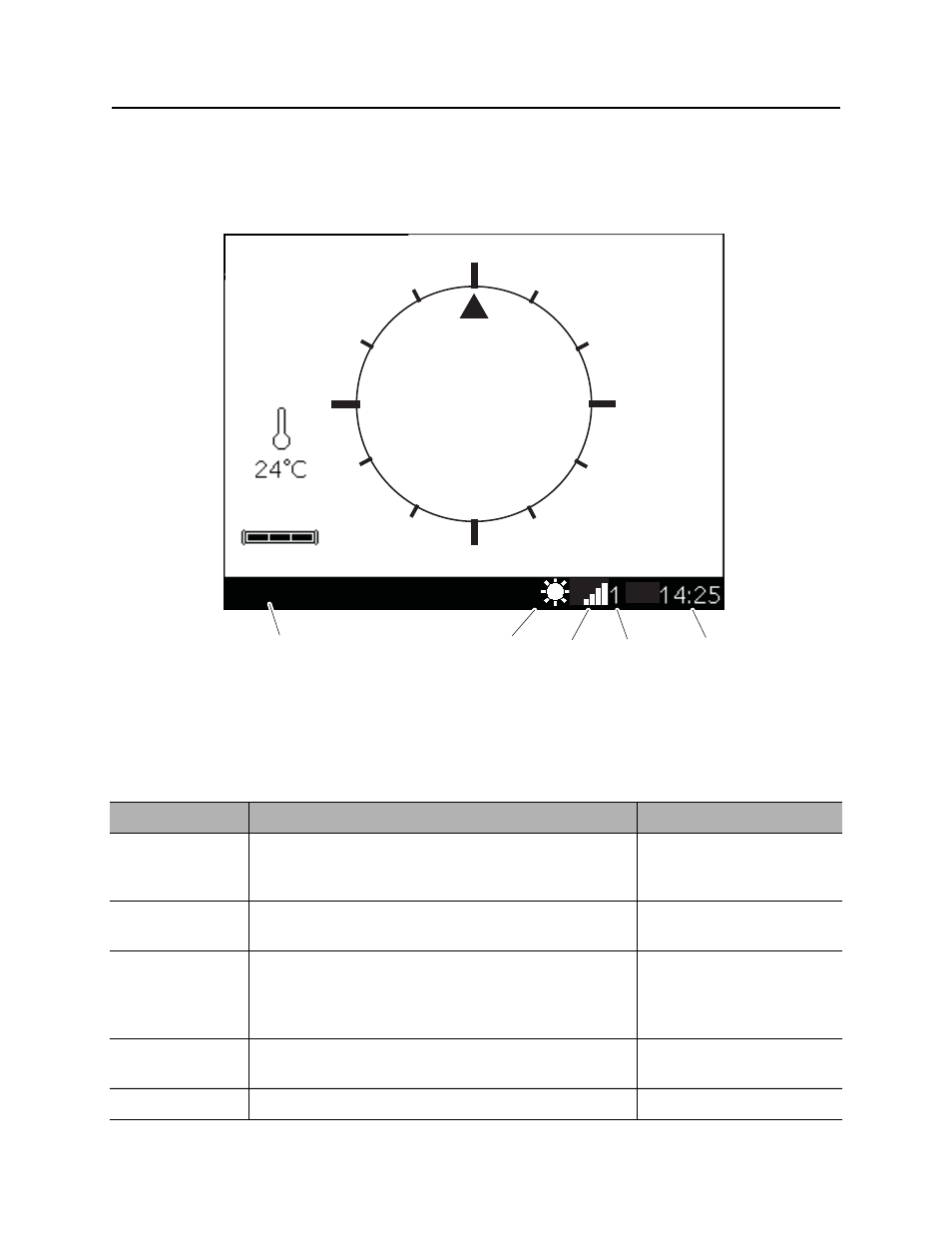

Display Status Icons
1. Message display
2. Backlight indicator
3. Tracker signal
4. Telemetry channel
5. Clock
Item Description Notes
1. Message
display Displays information such as software version,
logging status, beacon temperature warning, and low
battery alert.
2. Backlight
indicator Shows if backlight is on. See “Settings Menu” on
page 29.
3. Tracker
signal
strength Indicates strength of tracker radio signal received by
display. White bars indicate good
reception; hollow or black
bars indicate poor
reception.
4. Telemetry
channel Displays telemetry channel selection.
5. Clock Displays time.
0.0%
e17om038w.eps
12
1 2 3 4 5
7.0 ft
