TK Series Guidance System Operator’s Manual
Controls - 25
TD, TDR
CMW

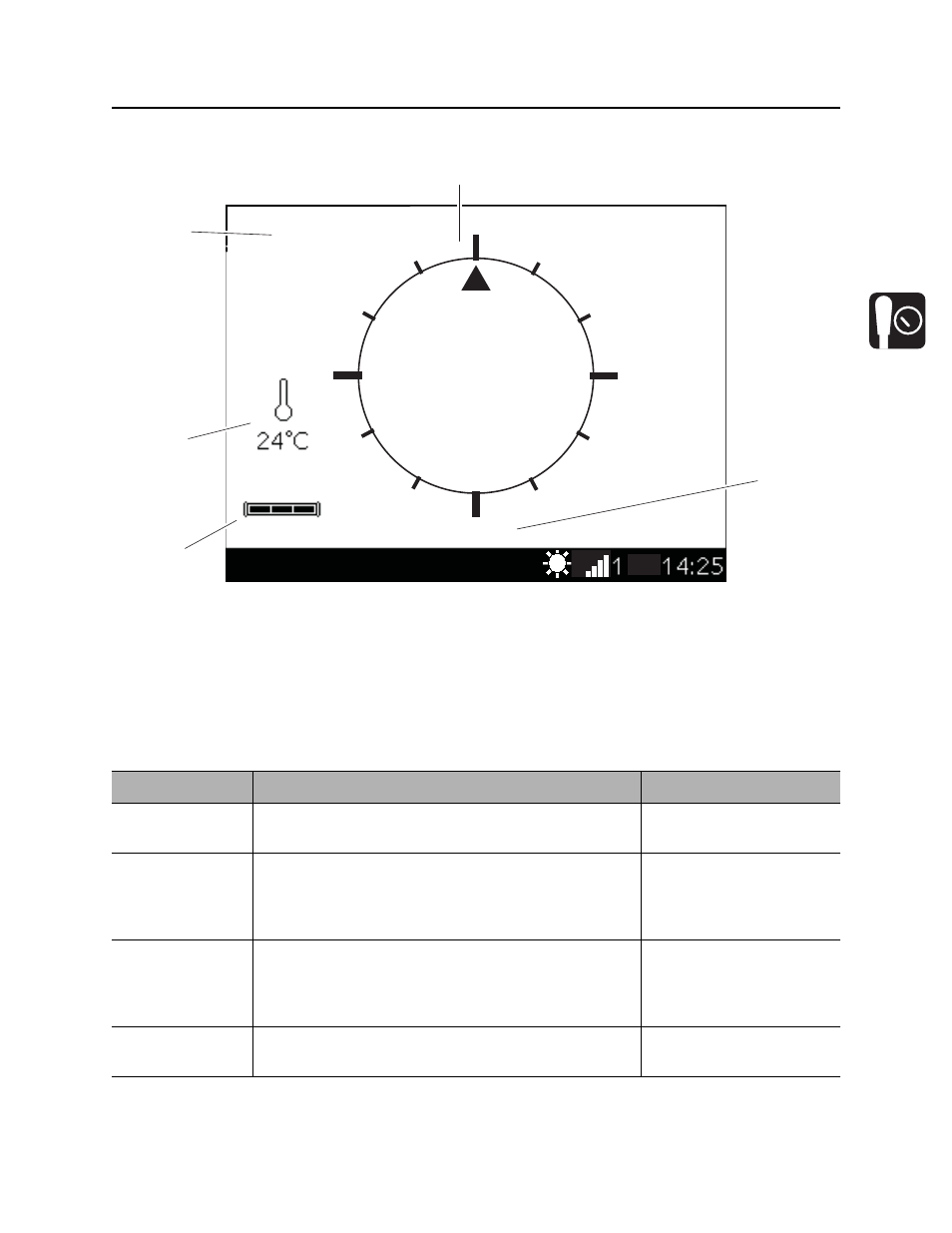

Beacon Status Icons
1. Beacon battery life
2. Beacon temperature
3. Beacon pitch
4. Beacon roll indicator
5. Beacon depth measurement
Item Description Notes
1. Beacon
battery life Graphically indicates battery life remaining.
2. Beacon
temperature Displays beacon temperature.
Icon darkens as temperature rises and temperature is
displayed numerically below the icon.
3. Beacon
pitch Displays pitch of beacon in percent grade or degrees.
The arrow behind the value indicates whether pitch is
positive or negative.
4. Beacon roll
indicator Graphically and numerically indicates beacon’s roll
position.
0.0%
e17om039w.eps
12
1
2
3
4
5
7.0 ft
