Input 1: Toggles CH-1 processing mode sequentially between DAYPART AM and DAYPART
PM. (DayPart GPI must be enabled)
Input 2: Toggles CH-2 processing mode sequentially between DAYPART AM and DAYPART
PM (DayPart GPI must be enabled)
Input 3: Toggles CH-3 processing mode sequentially between DAYPART AM and DAYPART
PM. (DayPart GPI must be enabled)
Input 4: Toggles CH-4 processing mode sequentially between DAYPART AM and DAYPART
PM. (DayPart GPI must be enabled) When CH-4 Input Mode is set to EAS, toggling Input 4
will set EAS Override to On. EAS will be active and put the CH-4 signal on all channels.
NETWORK - Used to update LBR4’s firmware. To connect directly to a PC without use of a network
switch or hub, a crossover cable is required. Firmware updating is accomplished via UDP Port 44600.
Please refer to the Firmware Update section of this manual for the update procedure.
PSU 1 - IEC320 port to connect to AC Mains. The internal power supply is auto switching and will work
on 120VAC-60Hz or 240VAC-50Hz electrical power systems with a maximum total current draw of 25W
(>.25A 120VAC or >.15A 240VAC).
Please connect LBR4 to a properly grounded uninterruptible power supply (UPS) to protect
against power surges and low-voltage conditions. LBR4 may be combined with other devices on
the output of the UPS as long as the total load is within the UPS’ capacity. Consult your UPS manual
for details.
LED
Meter
Display

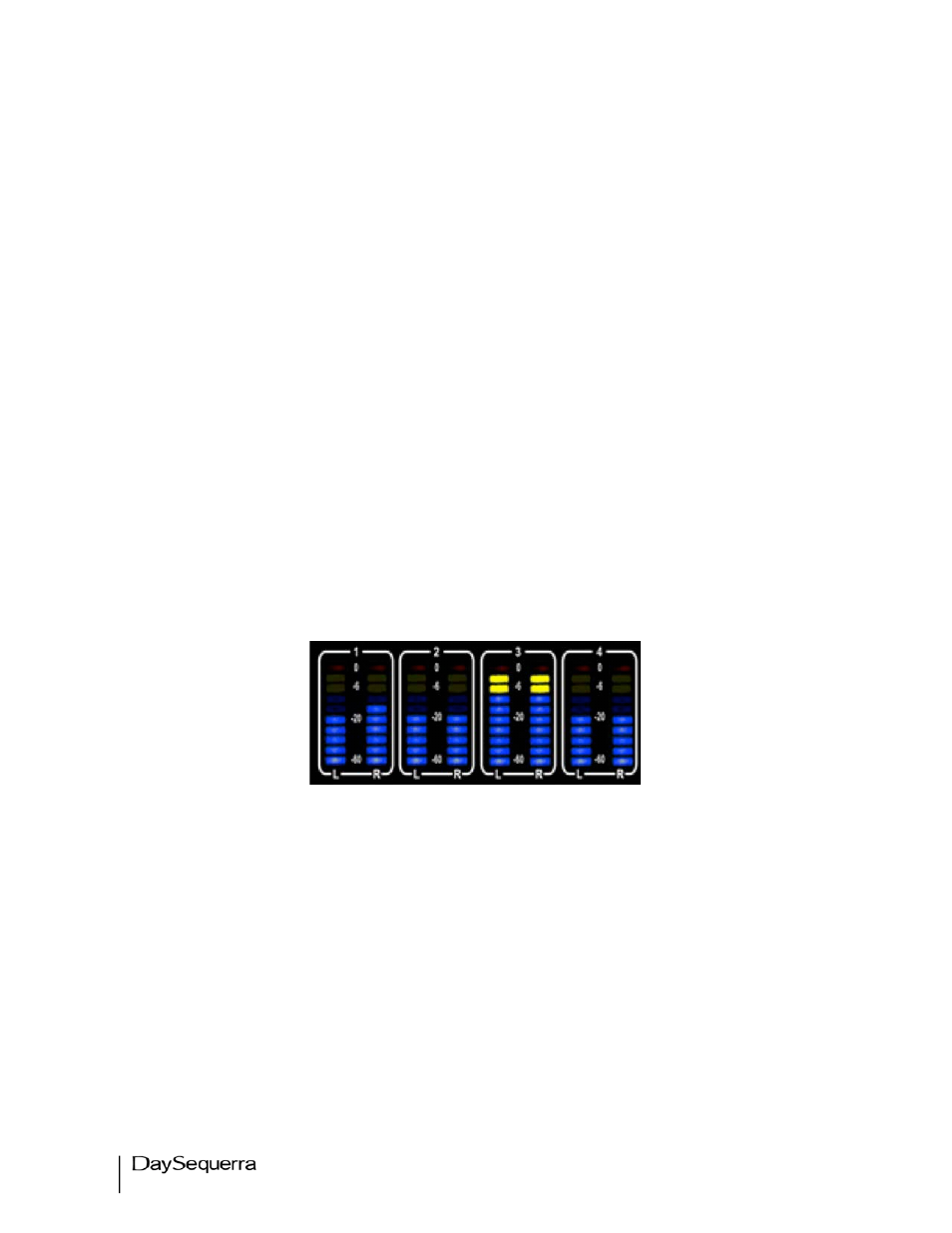

Figure 1. Metering display LBR4.
INPUT AND OUTPUT LEVELS – LED display shows current amplitude of input and output signal from
-60dB to 0dB across all active channels. Unused channels will not light the display. The Meters are
updated every 20ms.
Channel 1 (Left and Right: AES 1 and AES 2)
Channel 2 (Left and Right: AES 3 and AES 4)
Channel 3 (Left and Right: AES 5 and AES 6)
Channel 4 (Left and Right: AES 7 and AES 8)
