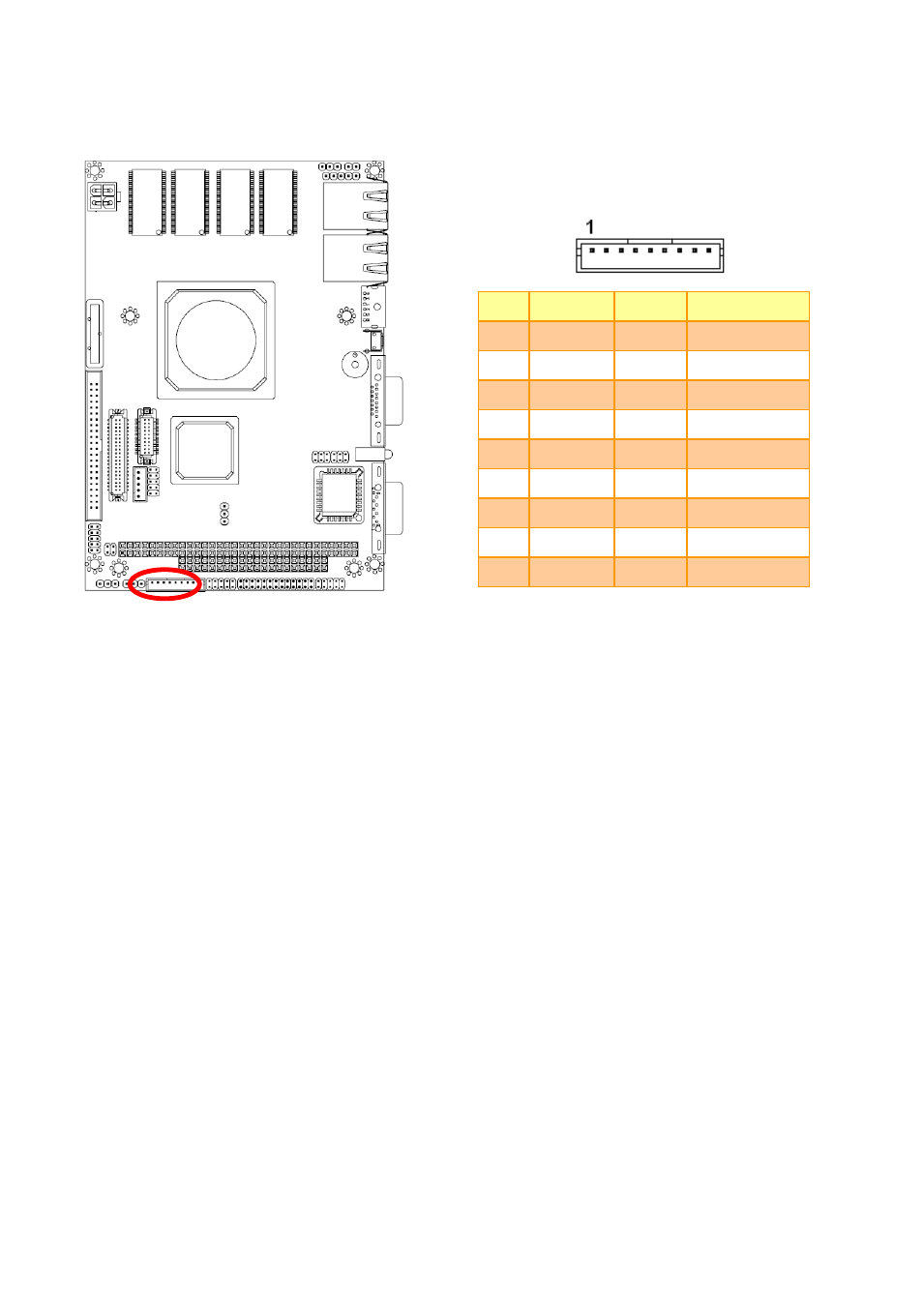

2.4.16 Touch Panel Connector (JTOUCH)
PIN 4-Wire 5-Wire 8-Wire
1 NA NA Right Sense
2 NA NA Left Sense
3 NA NA Bottom Sense
4 NA Sense Top Sense
5 Right LR Right Excite
6 Left LL Left Excite
7 Bottom UR Bottom Excite
8 Top UL Top Excite
9 GND GND GND
