User ’s Manual
ECM-LX800D User ’s Manual 27

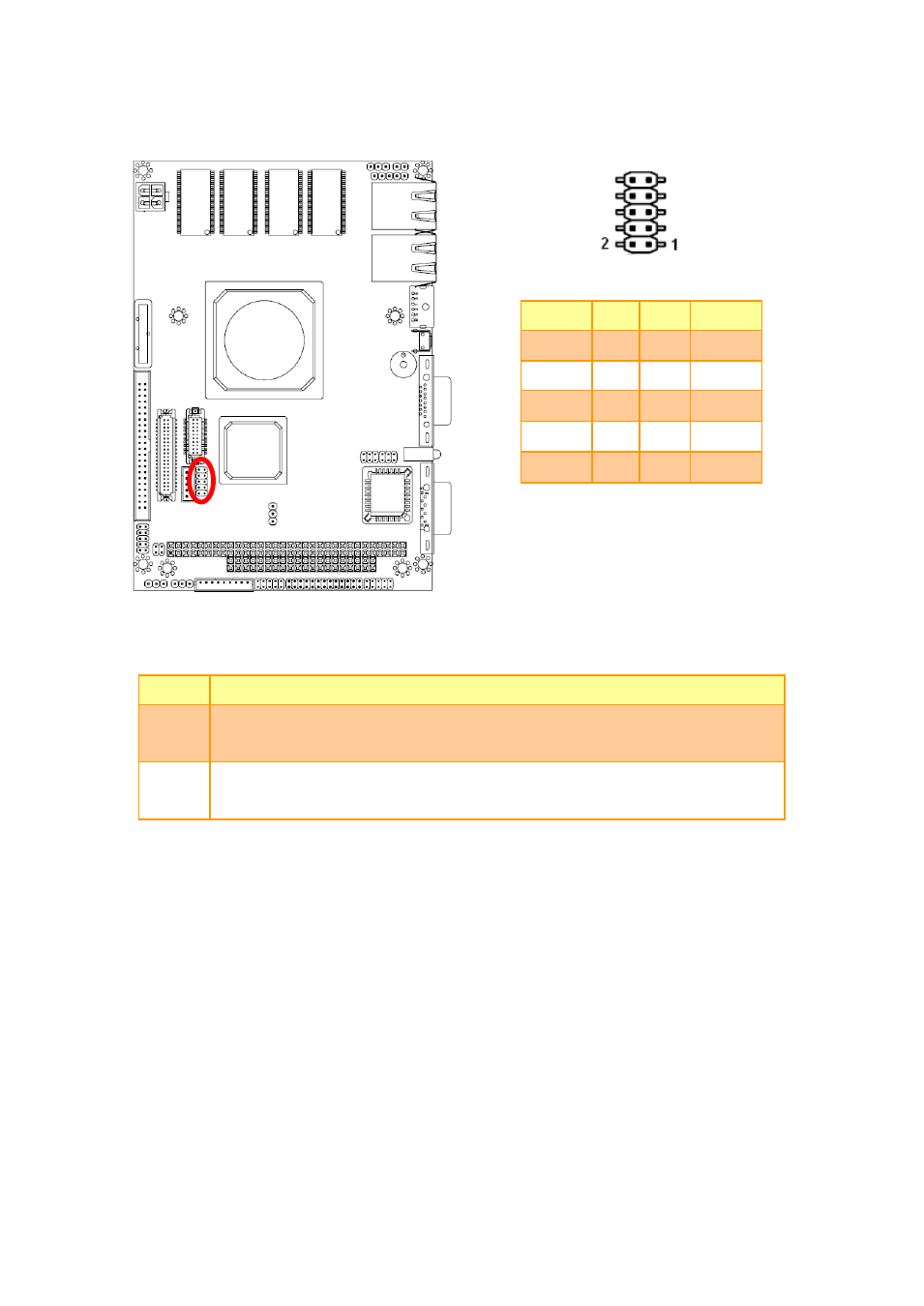

2.4.13 USB Connector 0 & 1 (JUSB)
Signal PIN PIN Signal
+5V 10 9 GND
D1- 8 7 GND
D1+ 6 5 D0+
GND 4 3 D0-
GND 2 1 +5V
2.4.13.1 Signal Description
– USB Connector 0&1 Connector(JUSB)
Signal Signal Description
D0+/-
Differential bi-directional data signal for USB channel 0 . Clock is transmitted along
with the data using NRZI encoding. The signalling bit rate is up to 12 Mbs.
D1+/-
Differential bi-directional data signal for USB channel 1. Clock is transmitted along
with the data using NRZI encoding. The signalling bit rate is up to 12 Mbs.
