User ’s Manual
ECM-LX800D User ’s Manual 21

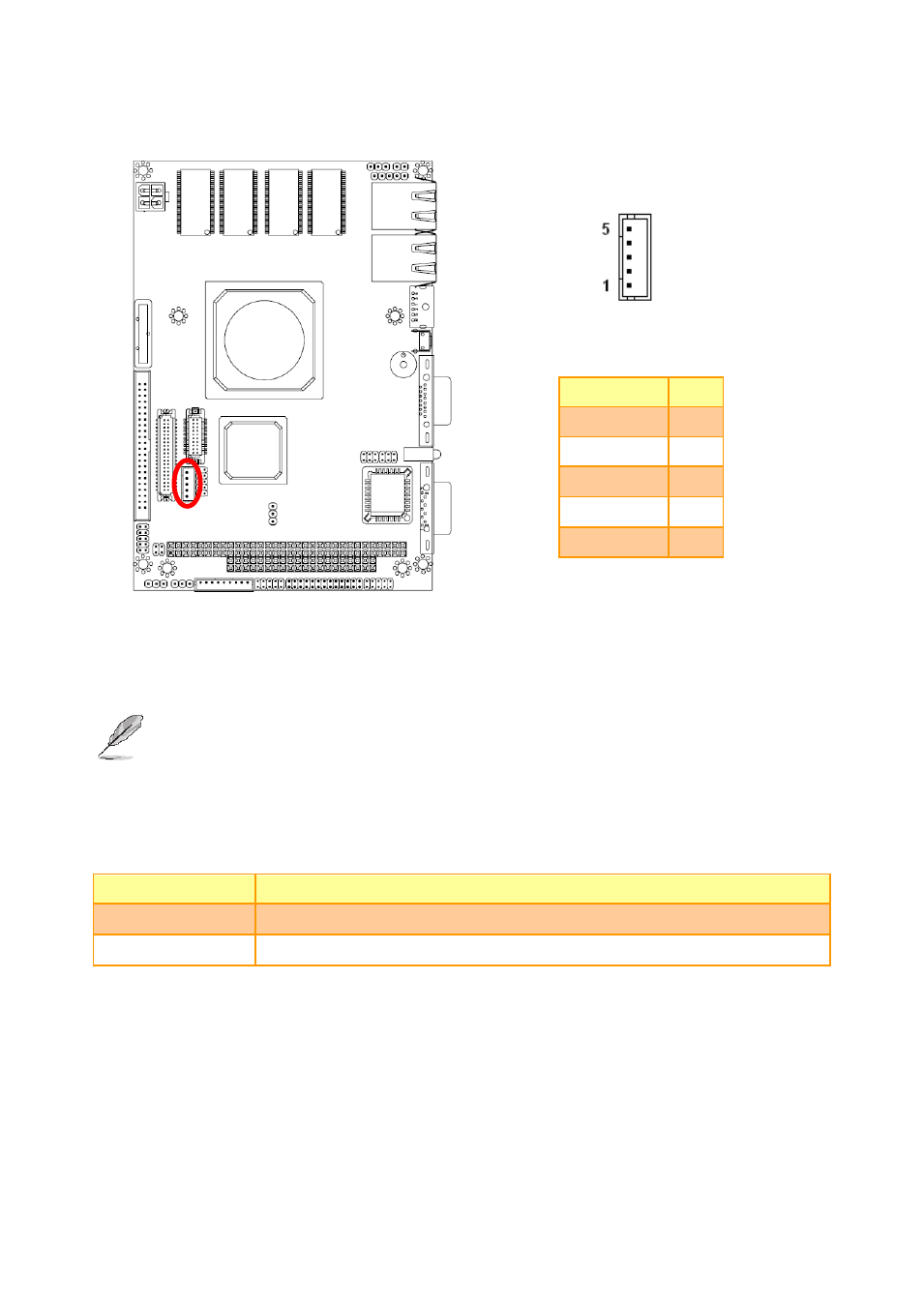

2.4.5 LCD inverter connector (JBKL)
Signal PIN
+5V 5
VR 4
ENBKL 3
GND 2
VIN 1
Note: The power input voltage (VIN)
equals to output voltage of
inverter.
Note:
For inverters with adjustable Backlight function, it is possible to control the
LCD brightness through the VR signal controlled by JVR. Please see the
JVR section for detailed circuitry information.
2.4.5.1 Signal Description
– LCD Inverter Connector (JBKL)
Signal Signal Description
VR Vadj = 0.75V ~ 4.25V (Recommended: 4.7K Ω, >1/16W)
ENBKL LCD backlight ON/OFF control signal
