9. Assemble the lower inner cover back onto the lower cover.
10. Install the cutter into the slots of the printer inner cover.

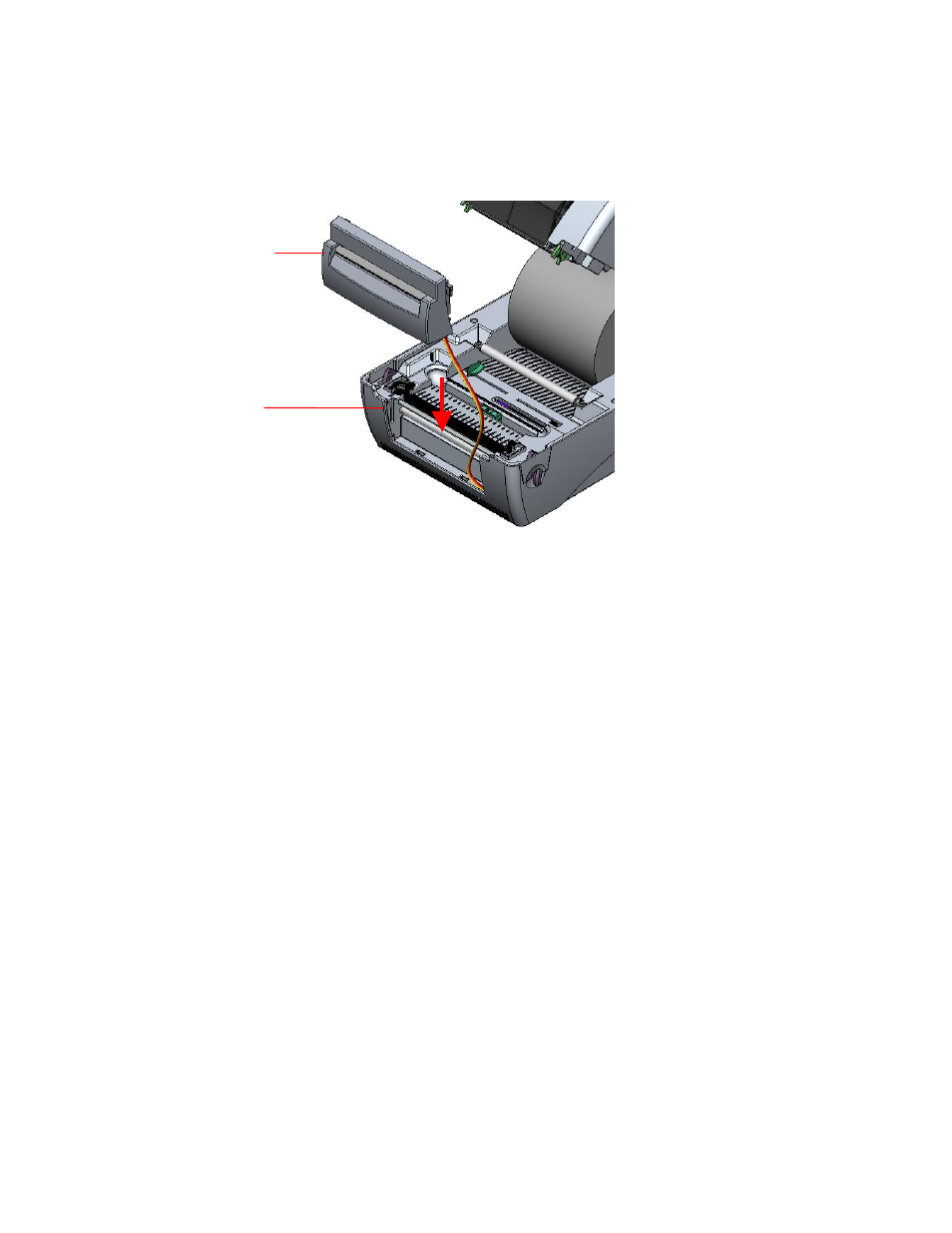

Fig. 26 Cutter module installation
11. Use a screwdriver to secure enclosure cover screws (9-places).
12. Close the top cover by placing the top cover support arm back into the flute
and push it forward, then close the top cover slowly.
3.7.1 Loading Media in Cutter Mode
1. Insert media spindle into a roll.
2. Open the printer top.
3. Install a media roll onto the roll mount.
4. Thread the media, printing side face up, through the guides, platen and cutter
module outlet.
5. Lead the media through the cutter front opening.
6. Adjust the media guides by moving left or right to fit the media/backing width.
Slot
Cutter
